- RS Stock No.:
- 121-3842
- Brand:
- RS PRO
112 In stock - FREE next working day delivery available
17 available from Europe for delivery within 1 working day(s).
Added
Price Each
£19.25
(exc. VAT)
£23.10
(inc. VAT)
Units | Per unit |
1 - 4 | £19.25 |
5 - 9 | £17.90 |
10 - 24 | £16.75 |
25 + | £15.61 |
- RS Stock No.:
- 121-3842
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
Product Details

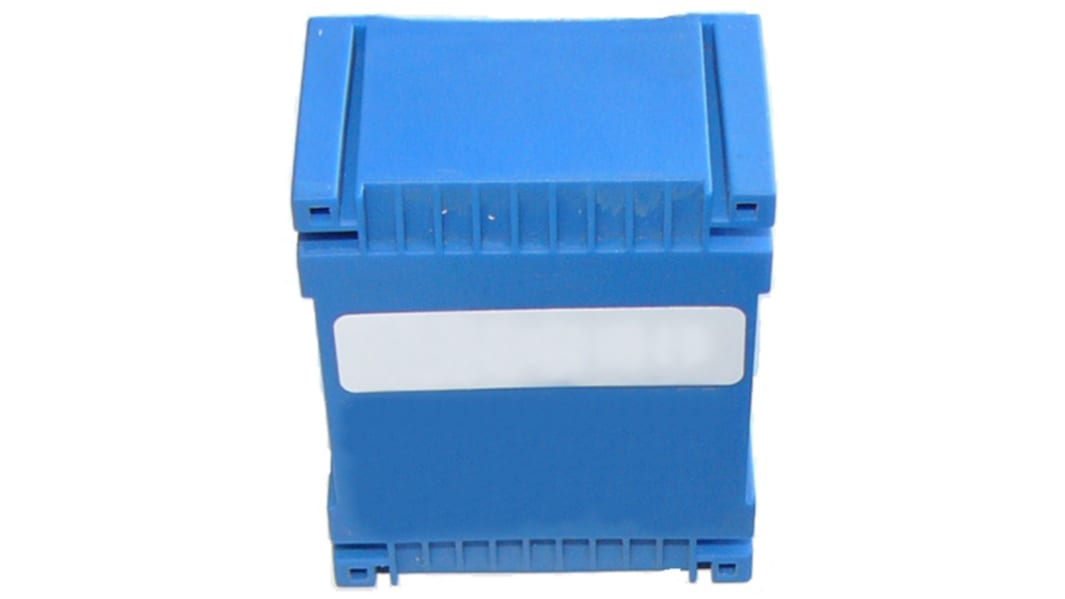

RS Pro PCB Low Profile Transformers
RS Pro PCB low profile transformers are low voltage transformers with a twin 115 V ac 50/60 Hz primary winding. These PCB transformers are compact and low height, have independent secondary windings suitable for series/ parallel connection to give output voltage and current options. The transformers are 100% electrical and flash tested, incorporate two compartment bobbins, high efficiency and low temperature rise, low interwinding capacity and low radiated noise.
Specifications
Attribute | Value |
---|---|
Secondary Voltage Rating | 2 x 15V ac |
Power Rating | 6VA |
Primary Voltage Rating | 115 → 230V ac |
Number of Outputs | 2 |
Length | 53mm |
Width | 44mm |
Depth | 23mm |
Dimensions | 54 x 44 x 23mm |
Weight | 185g |
Mounting Type | PCB Mount |
Maximum Temperature | +130°C |
Minimum Operating Frequency | 50Hz |
Maximum Operating Frequency | 60Hz |
