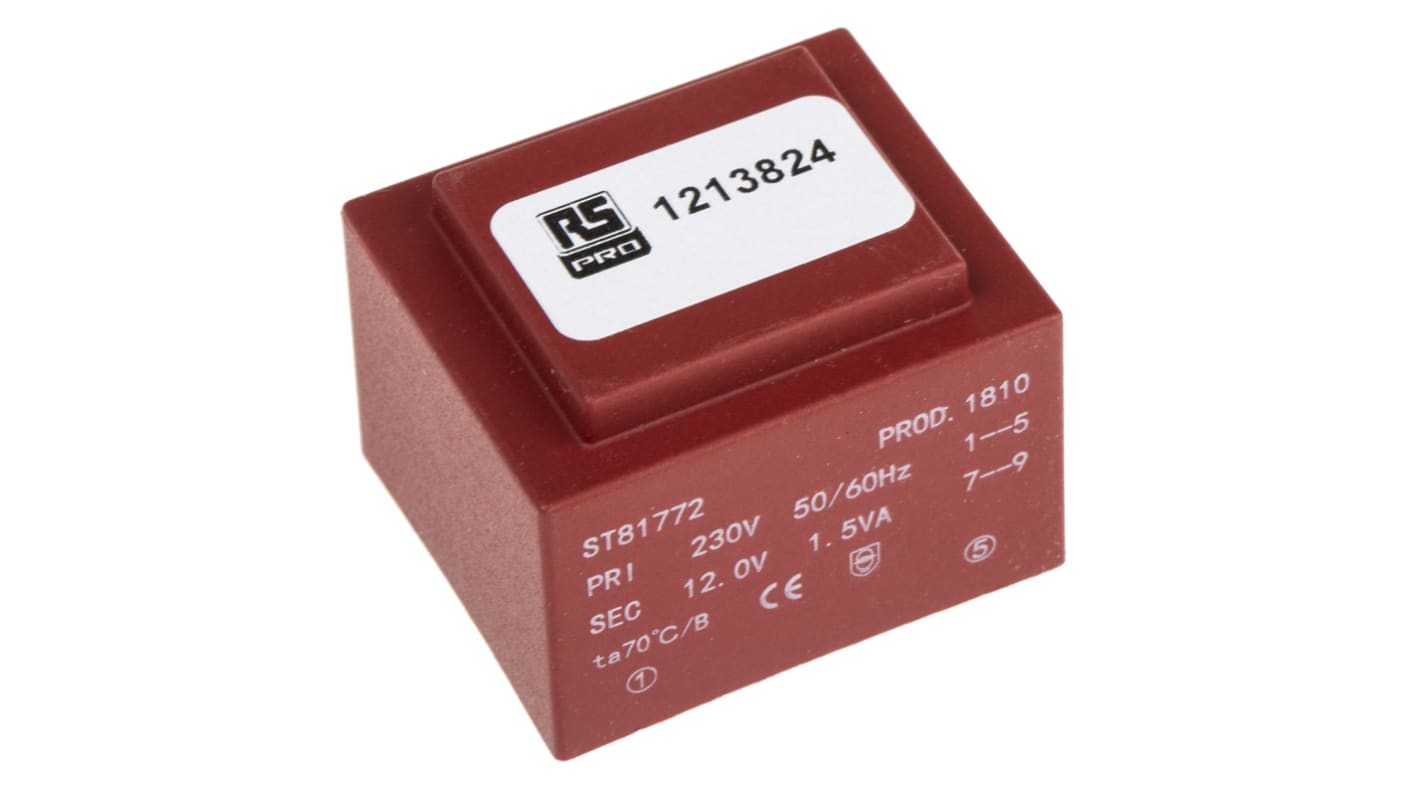

1 x 12V ac 1 Output PCB Mount PCB Transformer, 1.5VA

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RS Pro PCB Standard Transformers

RS Pro PCB Standard transformers are low voltage mains transformers with a single 230 VAC 50/60Hz primary winding
These transformers have secondary windings suitable for series/ parallel connection to give a wide range of current options. They are 100% electric and flash tested. Double section bobbin, high efficiency and low temperature rise. These RS Pro transformers have low interwinding capacity and low radiated noise.

Specifications
Attribute Value
Secondary Voltage Rating 1 x 12V ac
Power Rating 1.5VA
Primary Voltage Rating 230V ac
Number of Outputs 1
Length 32.5mm
Width 27.5mm
Depth 24mm
Dimensions 32.5 x 27.5 x 24mm
Weight 85g
Mounting Type PCB Mount
Maximum Temperature +130°C
Minimum Operating Frequency 50Hz
Maximum Operating Frequency 60Hz
2 In stock for FREE next working day delivery
Price Each
£ 2.99
(exc. VAT)
£ 3.59
(inc. VAT)
Units
Per unit
1 - 9
£2.99
10 +
£2.69
