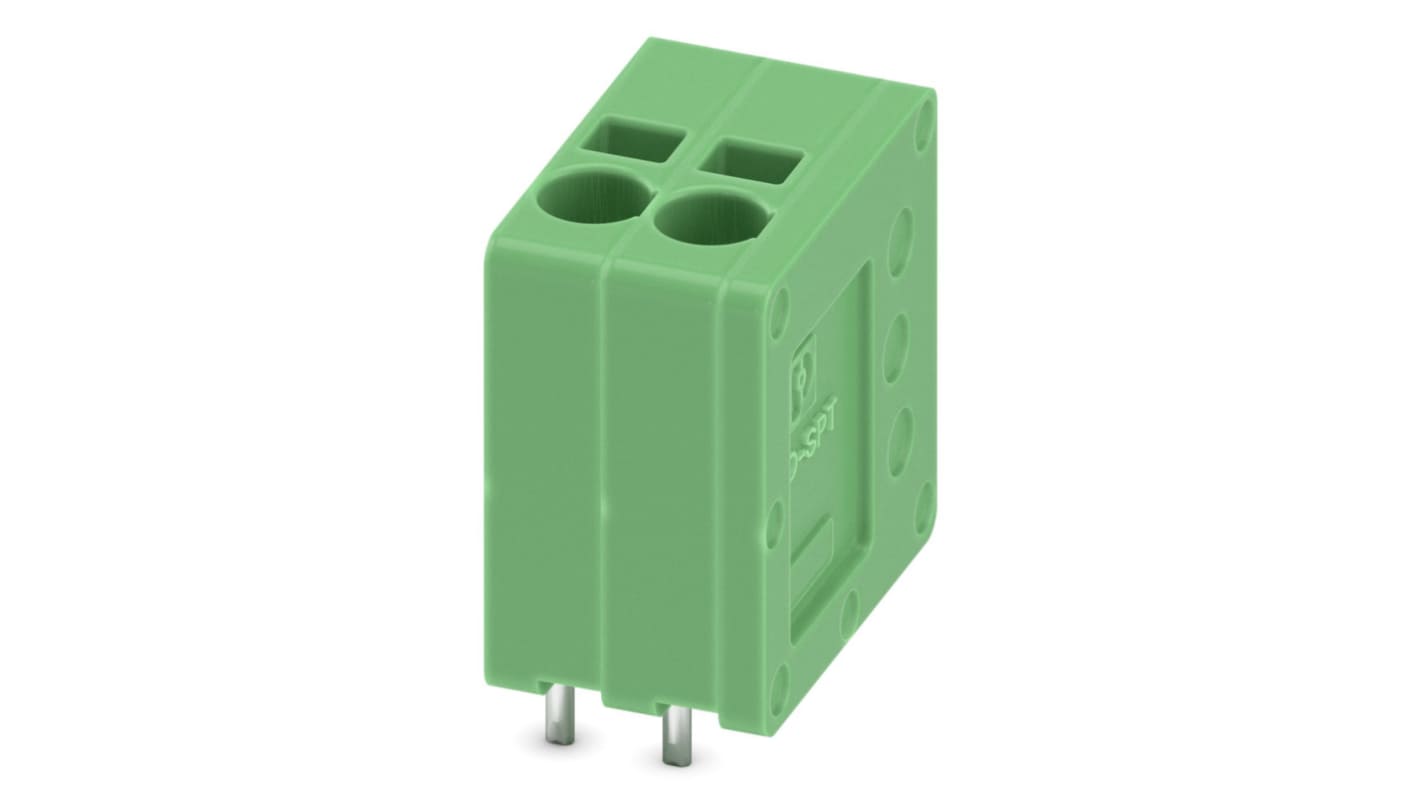

Phoenix Contact SPT 1.5/ 2-V-3.5 Series PCB Terminal Block, 2-Contact, 3.5mm Pitch, Through Hole Mount, 1-Row, Spring
- RS Stock No.:
- 112-308
- Mfr. Part No.:
- 1990850
- Brand:
- Phoenix Contact
5 In stock - FREE next working day delivery available
1390 available from Europe for delivery within 1 working day(s).
Price Each (In a Pack of 5)
£0.858
(exc. VAT)
£1.03
(inc. VAT)
Units | Per unit | Per Pack* |
5 - 120 | £0.858 | £4.29 |
125 - 370 | £0.748 | £3.74 |
375 - 995 | £0.684 | £3.42 |
1000 - 1995 | £0.60 | £3.00 |
2000 + | £0.57 | £2.85 |
*price indicative |
- RS Stock No.:
- 112-308
- Mfr. Part No.:
- 1990850
- Brand:
- Phoenix Contact
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Phoenix Contact COMBICON SPT 3.5mm PCB Terminal Blocks
Print terminals with front spring loaded connection
Solder pins for high stability on the printed circuit board
Plug-and-play technology for rigid or flexible cables with ferrule
For flexible cables without ferrules — open terminal compartment with screwdriver
Connect vertically (V) or horizontally (H)
3.5 and 5 mm grid can be used together
Solder pins for high stability on the printed circuit board
Plug-and-play technology for rigid or flexible cables with ferrule
For flexible cables without ferrules — open terminal compartment with screwdriver
Connect vertically (V) or horizontally (H)
3.5 and 5 mm grid can be used together
Approvals
UL, CUL
Phoenix Contact 2-pin PCB Terminal Strip, 3.5 mm Pitch - SPT 1.5/ 2-V-3.5 - 1990850
This Phoenix Contact 2-pin terminal strip is a simple and effective way to connect two wires to a printed circuit board (PCB). It's designed for boards with a pitch (distance between solder balls) of 3.5 mm.
Installation is straightforward thanks to a push-in connection method that doesn't call for any specialist tools. Dual solder pins also help to reduce the mechanical strain on the soldering spots and a defined contact force ensures stability over the long term. Phoenix Contact's innovative spring cage termination method makes connections simple, secure and resistant to vibration.
This terminal strip is a flexible option as it can fit vertically or horizontally, depending on the configuration of your PCP. Its compact design saves space and is suitable for a wide variety of applications, even in harsh industrial environments.
Installation is straightforward thanks to a push-in connection method that doesn't call for any specialist tools. Dual solder pins also help to reduce the mechanical strain on the soldering spots and a defined contact force ensures stability over the long term. Phoenix Contact's innovative spring cage termination method makes connections simple, secure and resistant to vibration.
This terminal strip is a flexible option as it can fit vertically or horizontally, depending on the configuration of your PCP. Its compact design saves space and is suitable for a wide variety of applications, even in harsh industrial environments.
Straight body orientation
Through-hole mounting type
Dimensions of 8.4 (length) x 14.4 (width) x 13.5 mm (depth)
Pitch of 3.5 mm
Current rating of 17.5 A
Voltage rating of 160 V
Single row
2 contacts
Through-hole mounting type
Dimensions of 8.4 (length) x 14.4 (width) x 13.5 mm (depth)
Pitch of 3.5 mm
Current rating of 17.5 A
Voltage rating of 160 V
Single row
2 contacts
Approvals
UL, CUL
Specifications
Attribute | Value |
---|---|
Number of Contacts | 2 |
Pitch | 3.5mm |
Number of Rows | 1 |
Mounting Type | Through Hole |
Termination Method | Spring Cage |
Type | PCB Terminal Block |
Current Rating | 17.5A |
Body Orientation | Straight |
Voltage Rating | 160 V |
Series | SPT 1.5/ 2-V-3.5 |
Length | 8.4mm |
Depth | 13.5mm |
Width | 14.4mm |
