E-TEC 2.54mm Pitch 72 Way 2 Row Straight PCB Socket, Through Hole, Solder Termination

  • RS Stock No. 549-4949
  • Mfr. Part No. BL2-072-G-700-95
  • Brand E-TEC
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

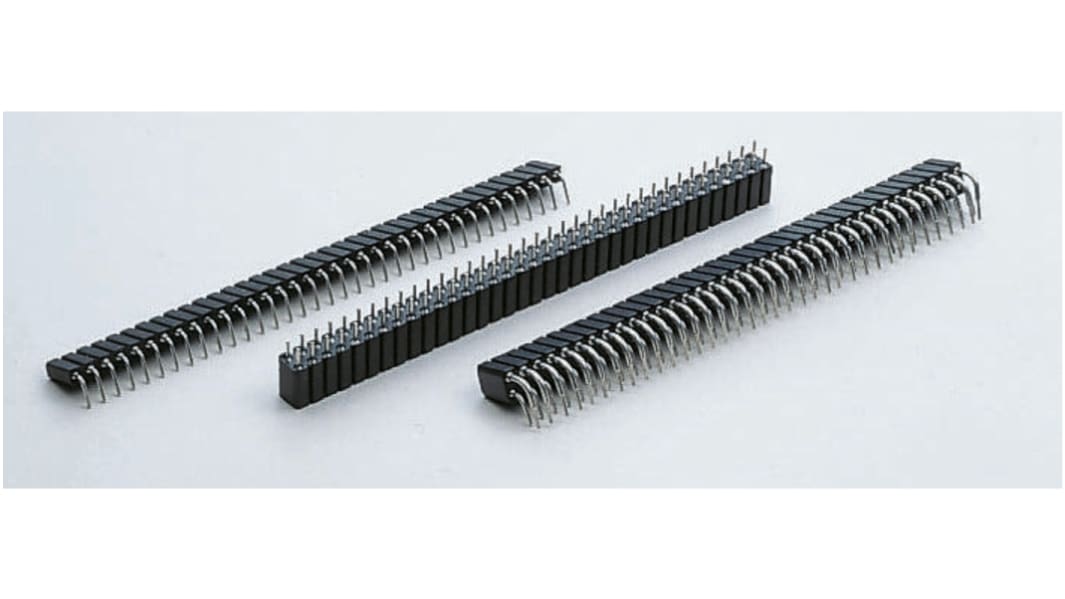

Large-diameter tulip contact divisible strips

High-profile divisible strips available in single or double row, straight or angled versions.
These strips feature tin-plated contacts with gold-plated tulips for inserting square pins with a diagonal dimension of 0.65 mm or round pins with a diameter of 0.65 → 0.85 mm.

//media.rs-online.com/t_line/LF187233-10.gif
//media.rs-online.com/t_line/LF187233-11.gif

2.54mm PCB Connector RS Range

A large variety of connector options, to cover the majority of board-to-board, bussing and programming requirements.

Specifications
Attribute Value
Number of Contacts 72
Number of Rows 2
Pitch 2.54mm
Type Socket Strip
Mounting Type Through Hole
Body Orientation Straight
Termination Method Solder
Current Rating 3A
Voltage Rating 100 V ac
Contact Material Beryllium Copper
200 In stock for delivery within 1 working days
Price Each (In a Pack of 5)
£ 10.992
(exc. VAT)
£ 13.19
(inc. VAT)
Units
Per unit
Per Pack*
5 - 120
£10.992
£54.96
125 - 370
£9.89
£49.45
375 - 995
£8.796
£43.98
1000 - 1995
£7.694
£38.47
2000 +
£7.144
£35.72
*price indicative
