- RS Stock No.:
- 251-8200
- Brand:
- RS PRO
1800 In stock - FREE next working day delivery available
380 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 10)
£0.661
(exc. VAT)
£0.793
(inc. VAT)
Units | Per unit | Per Pack* |
10 - 190 | £0.661 | £6.61 |
200 - 740 | £0.548 | £5.48 |
750 - 2990 | £0.462 | £4.62 |
3000 - 5990 | £0.43 | £4.30 |
6000 + | £0.396 | £3.96 |
*price indicative |
- RS Stock No.:
- 251-8200
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

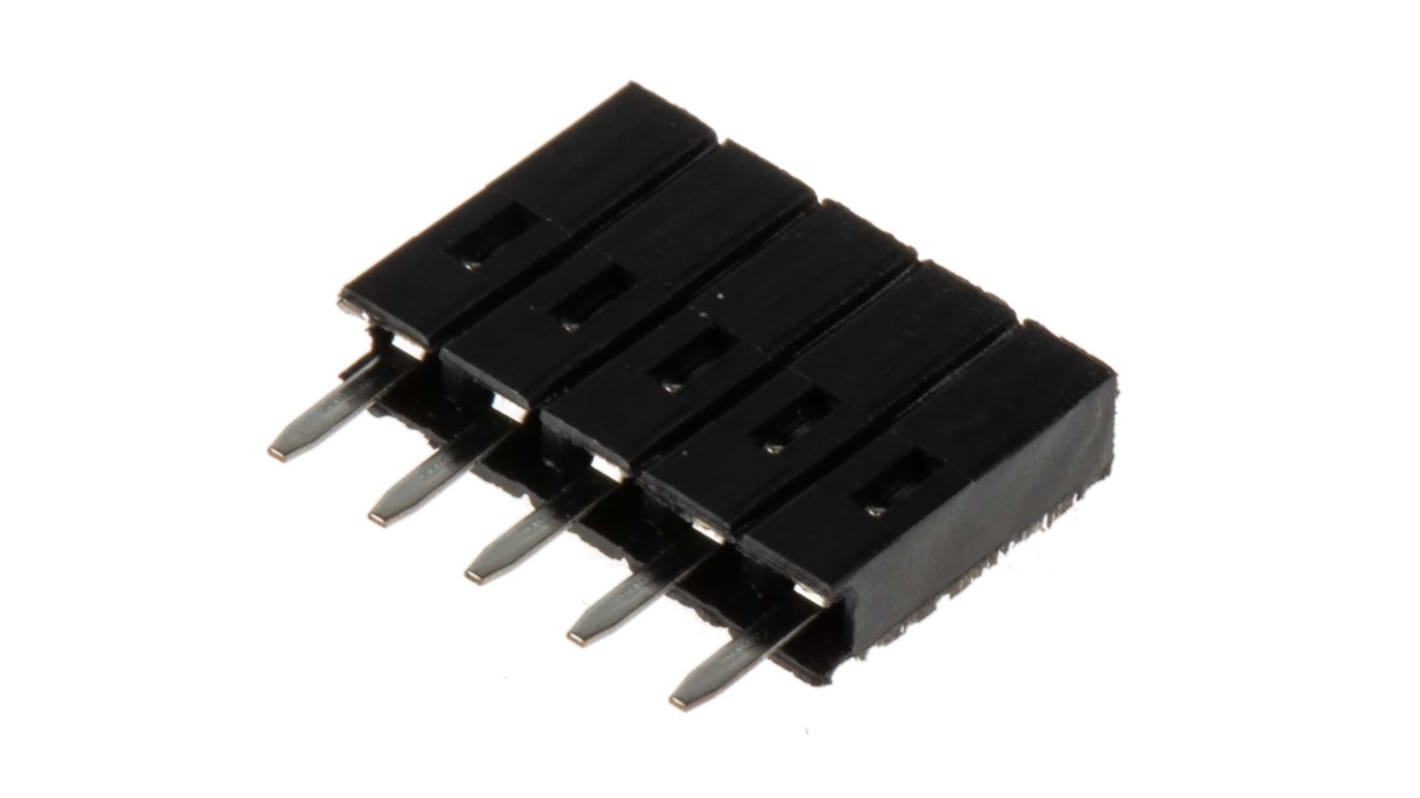

RS PRO 2.54 mm Pitch 5-Way 1-Row Straight PCB Socket, Through Hole, Solder Termination
Link up printed circuit boards (PCBs) with this convenient 5-way PCB socket from our trusted RS PRO range. This socket can connect five PCBs without cabling, giving you a more stable and secure connection.
Featuring a solder termination and straight body orientation, this PCB socket is quick and easy to install. It has a 2.54 mm pitch in a single-row format. Plus, it offers an excellent alternative to soldering relays directly onto a PCB by making it possible to vertically stack PCBs. Thanks to its through-hole mounting system, the socket offers enough room to solder components by hand.
This PCB socket has an operating temperature range of -55° and +105°C. It's commonly found in settings where PCB boards need to be connected and disconnected quickly. Use it to meet your bussing, programming and board-to-board requirements.
Featuring a solder termination and straight body orientation, this PCB socket is quick and easy to install. It has a 2.54 mm pitch in a single-row format. Plus, it offers an excellent alternative to soldering relays directly onto a PCB by making it possible to vertically stack PCBs. Thanks to its through-hole mounting system, the socket offers enough room to solder components by hand.
This PCB socket has an operating temperature range of -55° and +105°C. It's commonly found in settings where PCB boards need to be connected and disconnected quickly. Use it to meet your bussing, programming and board-to-board requirements.
Features and Benefits
PCB socket
5-way socket strip
Pitch of 2.54 mm
5 contacts
Single row format
Straight body orientation for easy installation
Through-hole mounting system
Soldering termination method
Contact material is phosphor bronze
Contact resistance of 20 mΩ
Current rating of 1 A
Operating temperature range between -55° and +105°C
5-way socket strip
Pitch of 2.54 mm
5 contacts
Single row format
Straight body orientation for easy installation
Through-hole mounting system
Soldering termination method
Contact material is phosphor bronze
Contact resistance of 20 mΩ
Current rating of 1 A
Operating temperature range between -55° and +105°C
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
---|---|
Number of Contacts | 5 |
Number of Rows | 1 |
Pitch | 2.54mm |
Type | Socket Strip |
Mounting Type | Through Hole |
Body Orientation | Straight |
Termination Method | Solder |
Current Rating | 12A |
Contact Material | Bronze |
