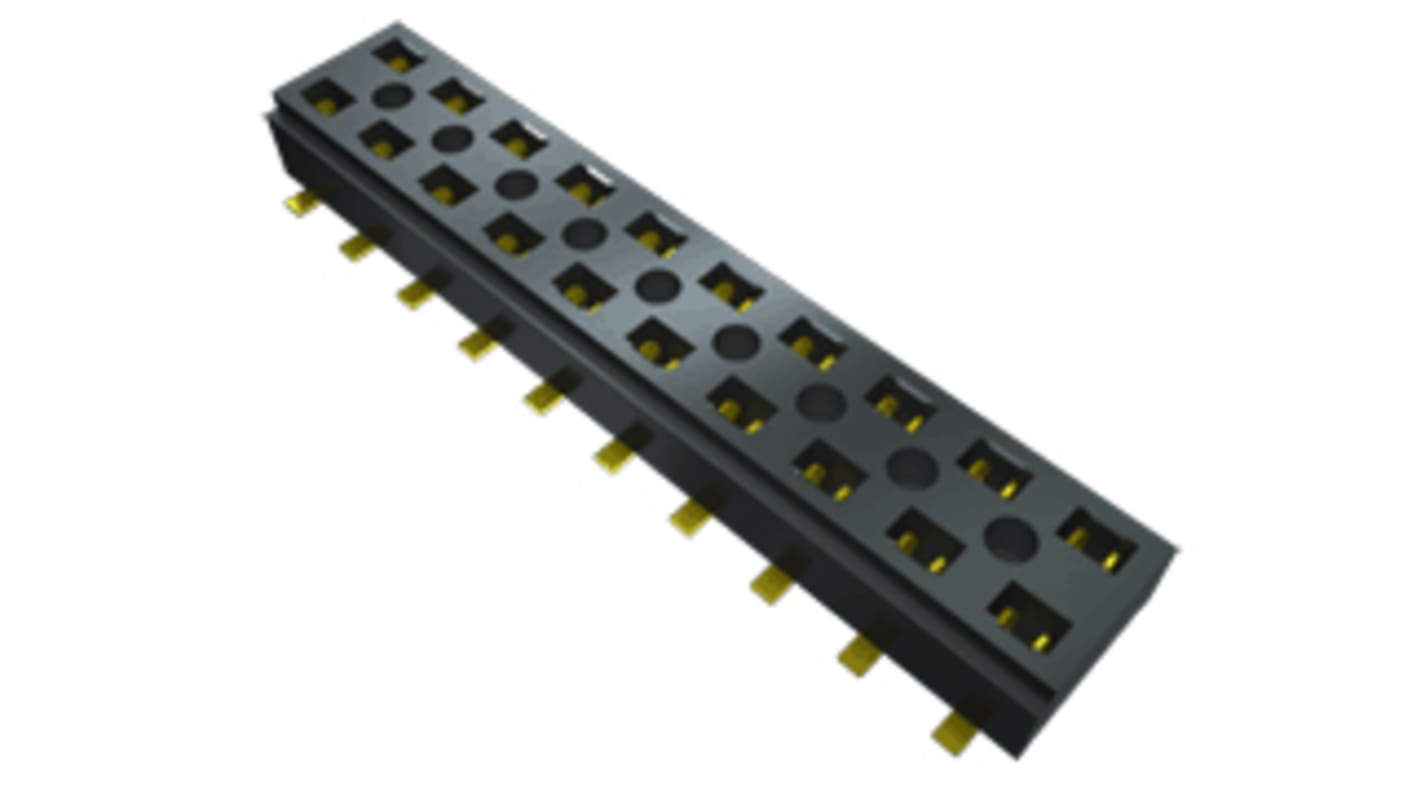

Samtec CLT Series Straight Surface Mount PCB Socket, 14-Contact, 2-Row, 2mm Pitch, Solder Termination
- RS Stock No.:
- 159-3680
- Mfr. Part No.:
- CLT-107-02-L-D-BE
- Brand:
- Samtec
3 In stock - FREE next working day delivery available
Added
Price Each
£3.29
(exc. VAT)
£3.95
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £3.29 |
| 10 - 49 | £3.13 |
| 50 - 99 | £1.89 |
| 100 - 499 | £1.60 |
| 500 + | £1.48 |
- RS Stock No.:
- 159-3680
- Mfr. Part No.:
- CLT-107-02-L-D-BE
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
2.00 mm Tiger Claw™ Rugged Reliable Dual Wipe Socket Strip
Contact System: Tiger Claw™
Orientation: Vertical
Termination: Through-hole, surface mount
Application: Double row to 100 pins
Special Features: Top and bottom entry pass-through options
Orientation: Vertical
Termination: Through-hole, surface mount
Application: Double row to 100 pins
Special Features: Top and bottom entry pass-through options
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 14 |
| Number of Rows | 2 |
| Pitch | 2mm |
| Type | Board to Board |
| Mounting Type | Surface Mount |
| Body Orientation | Straight |
| Termination Method | Solder |
| Current Rating | 4.1A |
| Series | CLT |
| Contact Material | Bronze |
