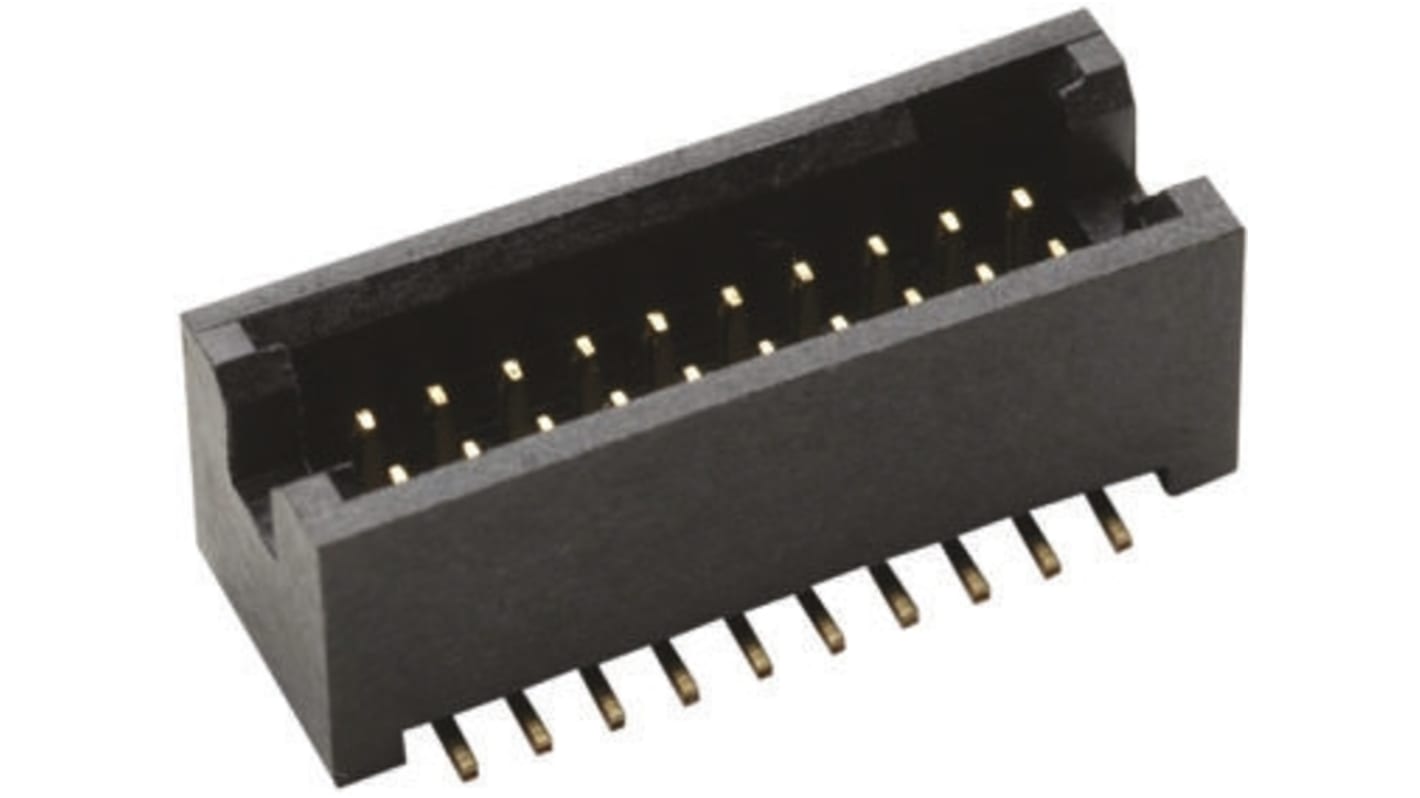

HARWIN, Archer M50, 20 Way, 2 Row, Straight PCB Header

  • RS Stock No. 681-0765
  • Mfr. Part No. M50-4901045
  • Brand HARWIN
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Shrouded Socket and Pin Headers

M50-300/310/311/315/320 Series socket headers mate with M50-350/360/390 Series unshrouded headers typical stock number 681-1184
M52-500/505/510/515 Series socket headers mate with M52-xxxxxxP/S/V/Wxxxx Series unshrouded headers typical stock number 681-3001
M50-430 Series socket headers mate with M50-490 Series pin headers

1.27mm Harwin M50 Series

Specifications
Attribute Value
Series Archer M50
Pitch 1.27mm
Number of Contacts 20
Number of Rows 2
Body Orientation Straight
Shrouded/Unshrouded Shrouded
Connector System Board to Board
Mounting Type Surface Mount
Termination Method Solder
Contact Plating Gold
Contact Material Brass
Current Rating 1A
Available to back order for despatch when stock is available
Price Each
£ 0.38
(exc. VAT)
£ 0.46
(inc. VAT)
Units
Per unit
1 +
£0.38
Packaging Options:
