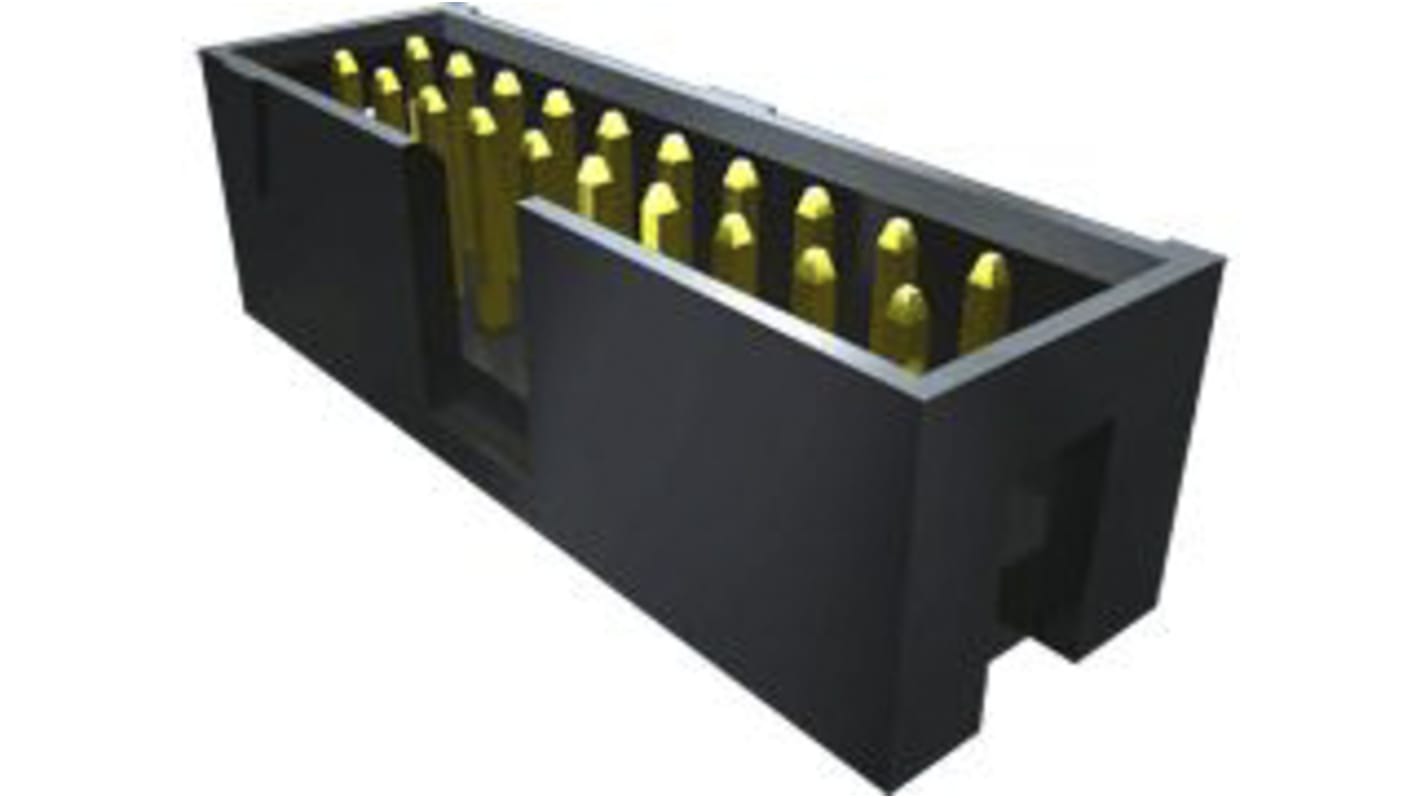

Samtec TSS Series Straight Through Hole PCB Header, 40 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 180-3109
- Mfr. Part No.:
- TSS-120-01-G-D
- Brand:
- Samtec
Available to back order for despatch 23/05/2024
Added
Price Each (In a Pack of 1000)
£3.205
(exc. VAT)
£3.846
(inc. VAT)
| Units | Per unit | Per Pack* |
| 1000 + | £3.205 | £3,205.00 |
| *price indicative | ||
- RS Stock No.:
- 180-3109
- Mfr. Part No.:
- TSS-120-01-G-D
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
Orientation: Vertical, right-angle
Pitch: .100" (2.54 mm)
Application: Shrouded for blind mating applications
Contact System: .025" (0.635 mm) square post
Termination: Through-hole
Pitch: .100" (2.54 mm)
Application: Shrouded for blind mating applications
Contact System: .025" (0.635 mm) square post
Termination: Through-hole
Specifications
Attribute | Value |
|---|---|
| Series | TSS |
| Pitch | 2.54mm |
| Number of Contacts | 40 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Connector System | Board to Board |
| Termination Method | Solder |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Voltage Rating | 1.0 kV |
