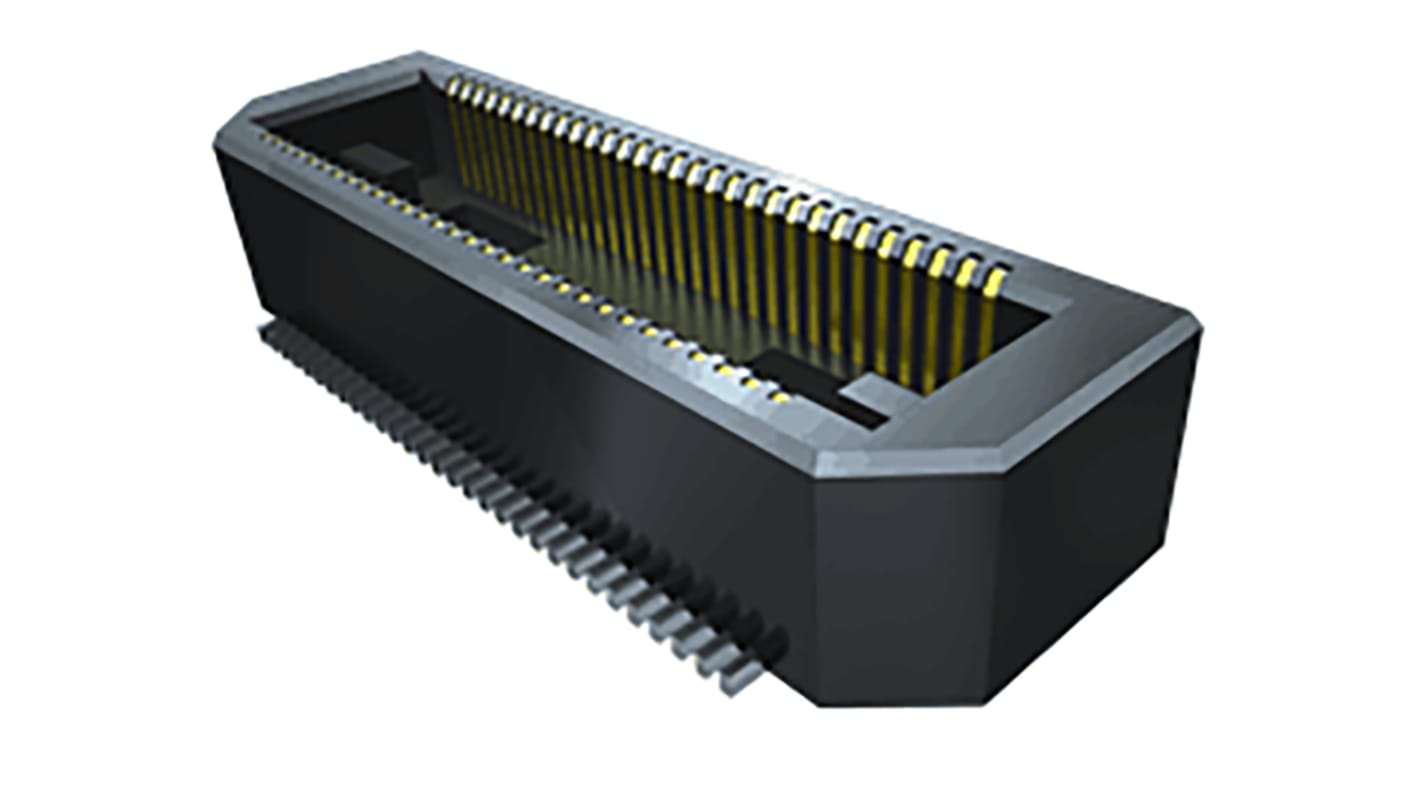

Samtec BTH Series Straight Surface Mount PCB Header, 60 Contact(s), 0.5mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 179-9013
- Mfr. Part No.:
- BTH-030-01-L-D-A
- Brand:
- Samtec
Available to back order for despatch when stock is available
Added
Price Each
£8.67
(exc. VAT)
£10.40
(inc. VAT)
| Units | Per unit |
| 1 + | £8.67 |
- RS Stock No.:
- 179-9013
- Mfr. Part No.:
- BTH-030-01-L-D-A
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CR
Product Details
Six standard positions, up to 300 I/O pins
Extended Life Product™ (E.L.P.™)
Stack height of 5.0 mm (.197")
Available in cost saving gold plating
Standard alignment pin feature
Optional tape and reel packaging
Extended Life Product™ (E.L.P.™)
Stack height of 5.0 mm (.197")
Available in cost saving gold plating
Standard alignment pin feature
Optional tape and reel packaging
Specifications
Attribute | Value |
|---|---|
| Series | BTH |
| Pitch | 0.5mm |
| Number of Contacts | 60 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board to Board |
| Mounting Type | Surface Mount |
| Termination Method | Solder |
| Contact Plating | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating | 2.0A |
| Voltage Rating | 175.0 V |
