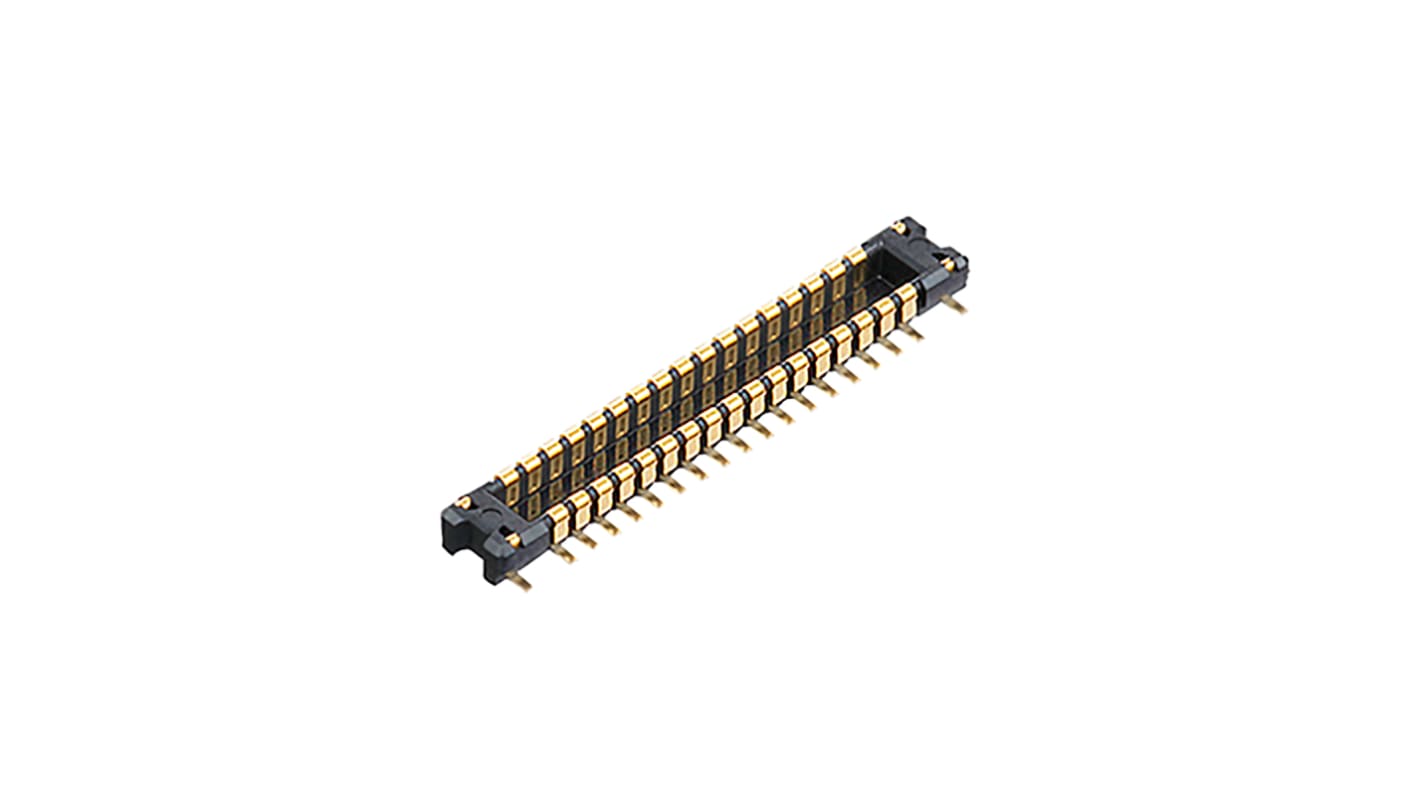

Panasonic S35 Series Straight Surface Mount PCB Header, 24 Contact(s), 0.35mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 179-0869
- Mfr. Part No.:
- AXG224144
- Brand:
- Panasonic
Available to back order for despatch 25/07/2024
Added
Price Each
£0.36
(exc. VAT)
£0.43
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £0.36 |
| 25 - 99 | £0.35 |
| 100 - 249 | £0.34 |
| 250 - 499 | £0.33 |
| 500 + | £0.32 |
- RS Stock No.:
- 179-0869
- Mfr. Part No.:
- AXG224144
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
FEATURES
Slim: width 1.7mm
Low profile construction: mated height 0.6 mm/0.8 mm
“TOUGH CONTACT” construction withstands tough
environments despite being slim and low profile.
For 0.6mm mated height, thanks to our proprietary “Fine
fitting” construction, high removability with a nice click feel
is maintained while being low profile.
APPLICATIONS
Wearable devices, smartphones and hearable devices
Slim: width 1.7mm
Low profile construction: mated height 0.6 mm/0.8 mm
“TOUGH CONTACT” construction withstands tough
environments despite being slim and low profile.
For 0.6mm mated height, thanks to our proprietary “Fine
fitting” construction, high removability with a nice click feel
is maintained while being low profile.
APPLICATIONS
Wearable devices, smartphones and hearable devices
Specifications
Attribute | Value |
|---|---|
| Series | S35 |
| Pitch | 0.35mm |
| Number of Contacts | 24 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Surface Mount |
| Termination Method | Solder |
| Contact Material | Copper Alloy |
| Current Rating | 5.0A |
| Voltage Rating | 60.0 V |
