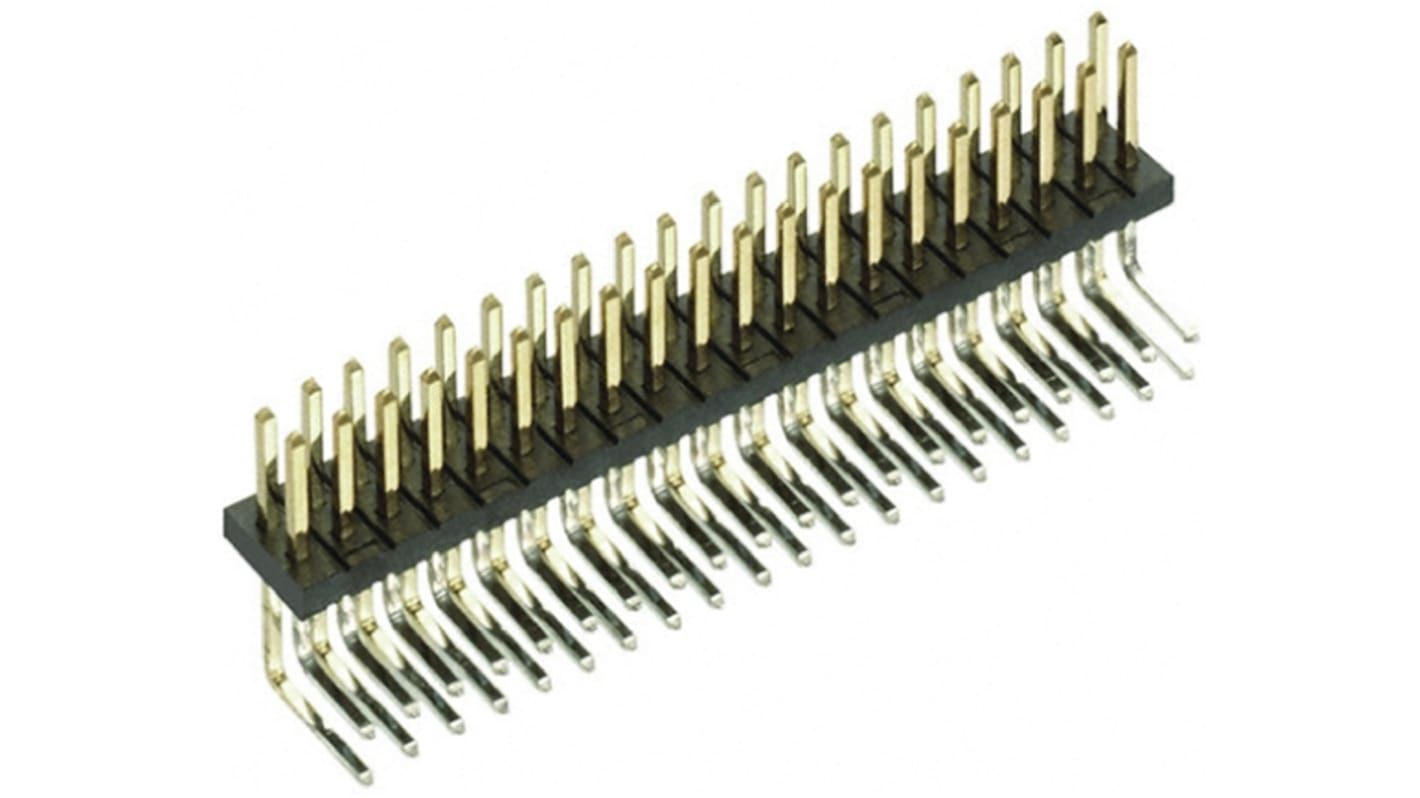

HARWIN Archer M50, 40 Way, 2 Row, Right Angle Pin Header

  • RS Stock No. 173-1103
  • Mfr. Part No. M50-3902042
  • Brand HARWIN
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Harwin Archer M50 Series 1.27mm PCB Header Connectors

Archer M50 series industry standard 1.27mm wire to board PCB header connectors for use with cable sockets and jumper sockets. These Archer M50 offer design flexibility, they can be cut to size and are available in a variety of configurations including vertical and horizontal orientation and PCB through hole and SMT mounting. The compact design of these Archer series IDC ribbon cable socket connectors provides space saving on the PCB and enables them to be used in a a variety of electronic equipment applications. Typical applications for these Archer IDC cable sockets include navigation systems, sonar displays, industrial and automotive control and test equipment, communications equipment including telecoms and datacoms and medical diagnostic and monitoring equipment including X-Ray machines.

1.27mm Harwin M50 Series

Specifications
Attribute Value
Series Archer M50
Pitch 1.27mm
Number of Contacts 40
Number of Rows 2
Body Orientation Right Angle
Shrouded/Unshrouded Unshrouded
Connector System Board to Board, Wire to Board
Mounting Type Through Hole
Termination Method Solder
Contact Plating Gold
Contact Material Phosphor Bronze
Current Rating 1A
200 In stock for FREE next working day delivery
Price Each (In a Box of 200)
£ 2.259
(exc. VAT)
£ 2.711
(inc. VAT)
Units
Per unit
Per Box*
200 +
£2.259
£451.80
*price indicative
