Samtec TSM Series Straight Surface Mount Pin Header, 3 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 155-2980
- Mfr. Part No.:
- TSM-103-01-S-SV
- Brand:
- Samtec
Available to back order for despatch 17/05/2024
Added
Price Each (In a Box of 10)
£0.543
(exc. VAT)
£0.652
(inc. VAT)
| Units | Per unit | Per Box* |
| 10 - 90 | £0.543 | £5.43 |
| 100 - 490 | £0.462 | £4.62 |
| 500 - 990 | £0.413 | £4.13 |
| 1000 + | £0.374 | £3.74 |
| *price indicative | ||
- RS Stock No.:
- 155-2980
- Mfr. Part No.:
- TSM-103-01-S-SV
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details

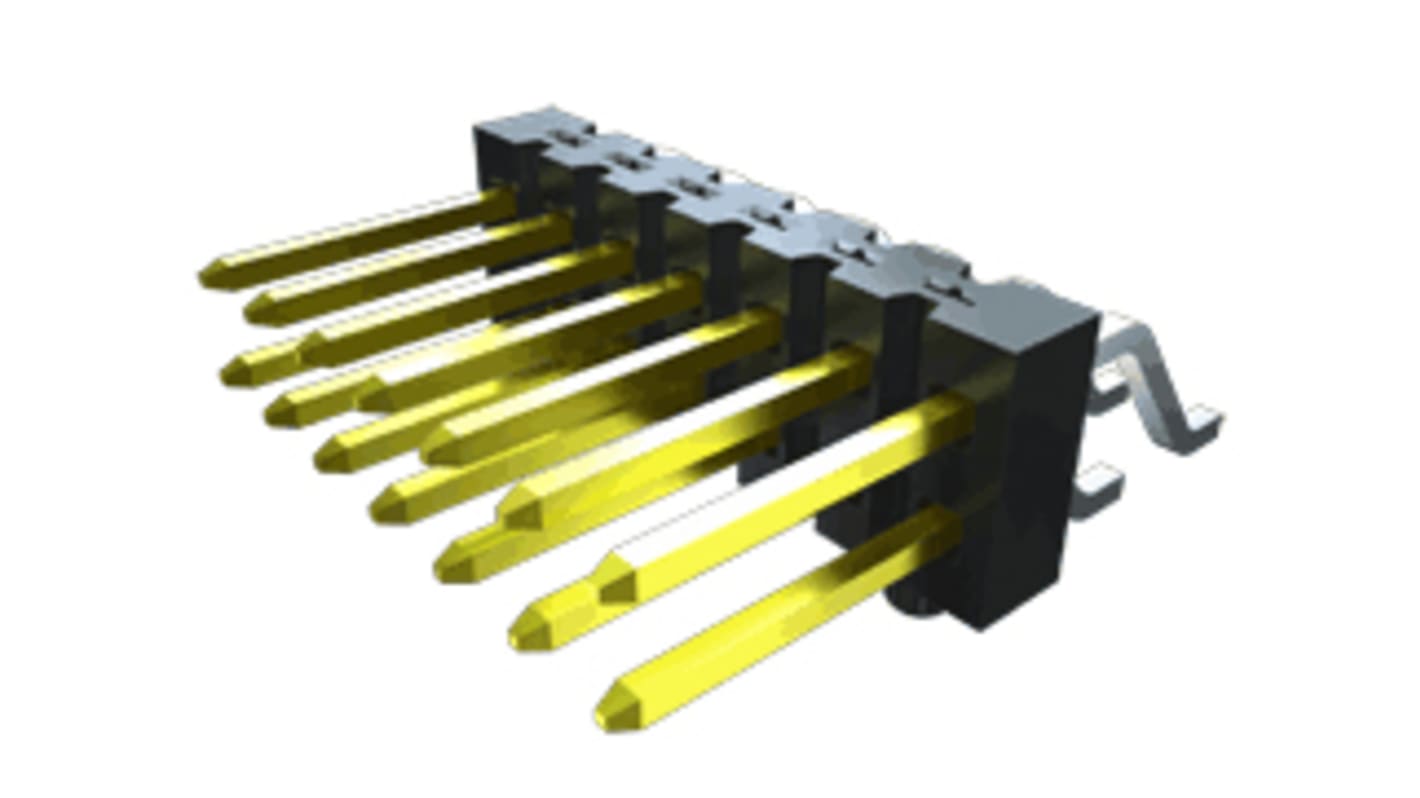

This surface mount .025” square post terminal strip features single, double and triple row options with straight, right-angle or mixed technology pins. This is an Extended Life Product™, passing 10 year Mixed Flowing Gas (MFG) and achieving high mating cycles (250 to 2,500).
Application: Choice of standard post heights provide solutions to mate with any Samtec socket
Contact System: .025" (0.635 mm) square post
Orientation: Vertical, horizontal
Pitch: .100" (2.54 mm)
Special Features: Designed specifically for surface mount applications with many options to facilitate processing
Termination: Surface mount, mixed technology
Contact System: .025" (0.635 mm) square post
Orientation: Vertical, horizontal
Pitch: .100" (2.54 mm)
Special Features: Designed specifically for surface mount applications with many options to facilitate processing
Termination: Surface mount, mixed technology
Specifications
Attribute | Value |
|---|---|
| Series | TSM |
| Pitch | 2.54mm |
| Number of Contacts | 3 |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board to Board, Wire to Board |
| Mounting Type | Surface Mount |
| Termination Method | Solder |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Current Rating | 4.0A |
| Voltage Rating | 475.0 V |
