TE Connectivity Guide Pin for use with Hard Metric Connector

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

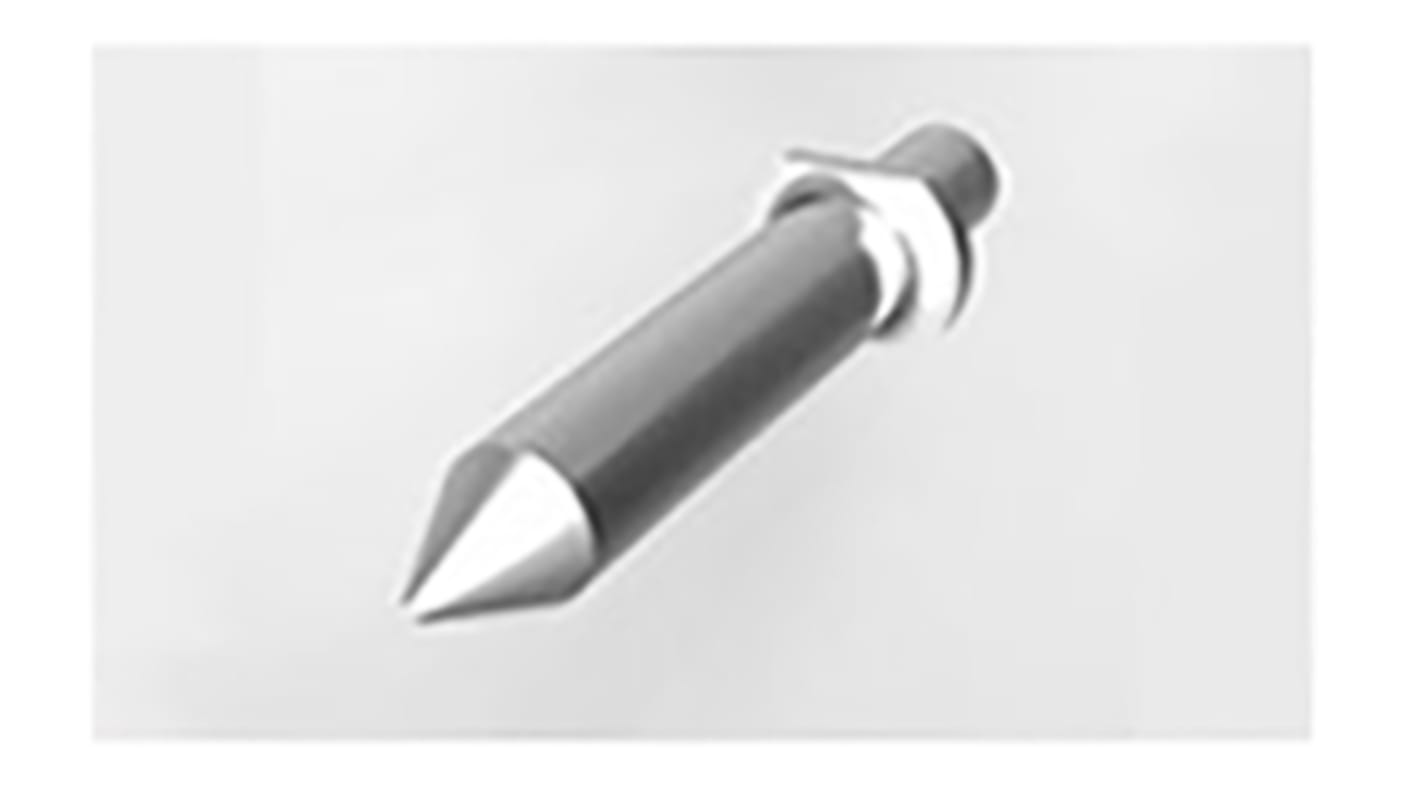

TE Connectivity Z-PACK HM-Zd Universal Power Module Guide Pins

Z-PACK HM-Zd Universal Power Module guide pins are made from passivated stainless steel
Stock number 864-3393 has an M4 x 0.7-6G thread size and a 6.20mm thread length
Stock number 865-5440 has an M4 x 0.7-6G thread size and a 7.5mm thread length
Stock number 864-3908 has an 8-32 UNC-2A thread size and a 12.7mm thread length
Stock number 864-3585 is a power/guide pin housing

Universal Power Modules

Specifications
Attribute Value
Accessory Type Guide Pin
For Use With Hard Metric Connector
Available to back order for despatch 27/10/2020
Price Each (In a Pack of 2000)
£ 1.739
(exc. VAT)
£ 2.087
(inc. VAT)
Units
Per unit
Per Pack*
2000 +
£1.739
£3,478.00
*price indicative
