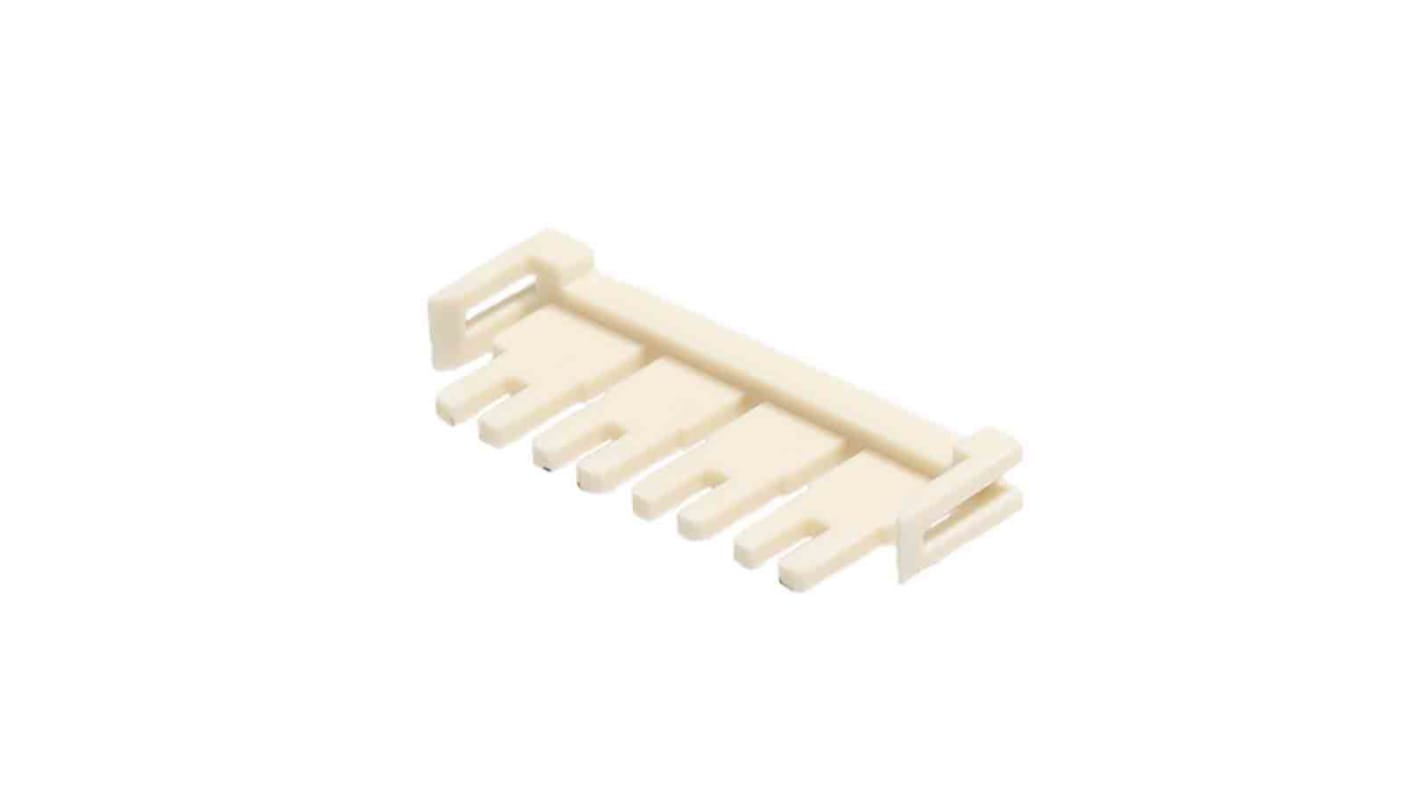

Molex Terminal Position Assurance for use with 207458 L1NK 396 Receptacle Housing

  • RS Stock No. 187-9779
  • Mfr. Part No. 207459-0004
  • Brand Molex
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

L1NK 396 Terminal Position Assurance (TPA) Retainer, 3.96mm Pitch, 4 Circuits, Natural

Positive-locking latch
Offers a clear audible click for connection assurance
Reflow-capable header
Is able to withstand a 260°C reflow process
Unique keying design
Prevents mis-mating
Positive-locking latch
Offers a clear audible click for connection assurance
Reflow options available
Reduces labor costs, saving time and resources
Unique keying design
Prevents mis-mating
Consumer - General Market
Washers and dryers
Freezers
Gaming machines
Printers
Refrigerators
Scanners
Security systems
Vending machines
Telecommunications/Networking
Routers and switches
Servers
Storage
Medical
Diagnostic equipment
Patient monitors
Appliances Routers
Automotive
Harness manufacturers
Non-sealed applications
Inside devices
Charging stations

Specifications
Attribute Value
Accessory Type Terminal Position Assurance
For Use With 207458 L1NK 396 Receptacle Housing
Series Number 207459
Series L1NK 396
2500 In stock - FREE next working day delivery available
Price Each (In a Bag of 2500)
£ 0.049
(exc. VAT)
£ 0.059
(inc. VAT)
Units
Per unit
Per Bag*
2500 - 2500
£0.049
£122.50
5000 - 5000
£0.046
£115.00
7500 +
£0.043
£107.50
*price indicative
