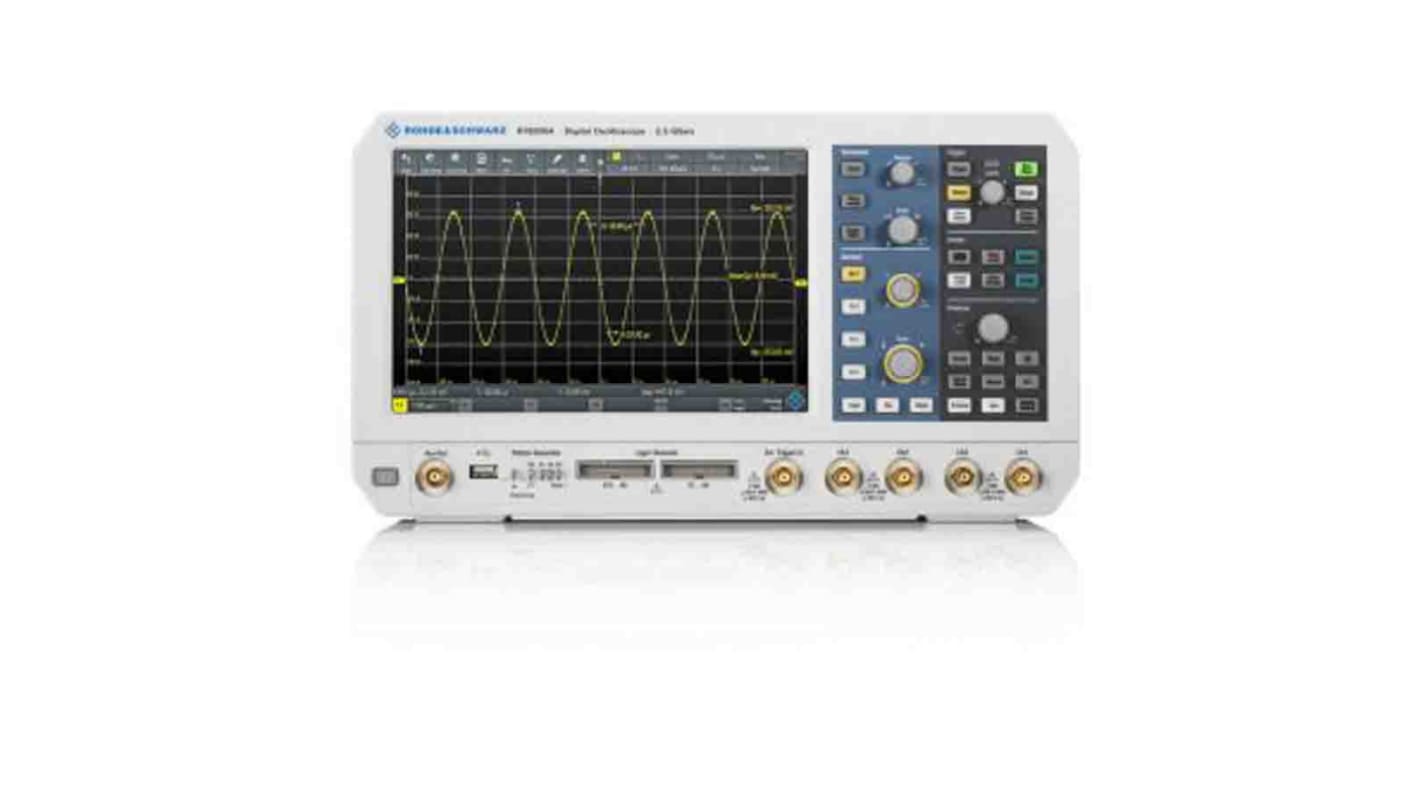

Rohde & Schwarz RTB2004 RTB2000 Series Digital Bench Oscilloscope, 4 Analogue Channels, 300MHz

Rohde & Schwarz offer this large inclusion bundle of Oscilloscope, software upgrades and accessories.

The Rhode & Schwarz RTB2000 series digital oscilloscopes offer the Power of ten: 10-bit ADC, 10 Msample memory and 10.1-inch colour touchscreen. These features combined with smart operating concepts make the R&S®RTB2000 series the perfect tools for university laboratories, for measurement, troubleshooting, embedded designs during development and for production or service departments. This series of oscilloscopes offer the largest (10.1 inch) capacitive touch display with the highest resolution of 1280 X 800 pixel in its class. The touch screen allows quick navigation in pop-up menus, easily adjust scaling, zoom in or to move a waveform and even annotate the display and take screenshots. It features special display modes, inverse brightness, and waveform colour modes for analog channels. It works just like your smartphone touch screen.

The R&S®RTB2000 series give users more than just an oscilloscope. It also includes a logic analyser, protocol analyser, waveform and pattern generator and digital voltmeter. Dedicated operating modes for frequency analysis, mask tests and long data acquisitions are also integrated. Debugging all kinds of electronic systems is easy and efficient.

The Rohde & Schwarz RTB2000 oscilloscopes can be adapted by the installation of software updates included in this bundle. These updates apply to triggering and decoding of serial protocols and the history and segmented memory mode. The waveform and pattern generator and the MSO capabilities model dependent, are built-in and just need to be activated, the bandwidth can also be upgraded to 300MHz with the included upgrade, making functional retrofitting very easy.

143-9327 - RTB2004: Oscilloscope, 4 channels, 300 MHz
143-9334 - RTB-B1: Oscilloscope Module, Mixed Signal Upgrade (MSO)
143-9335 - RTB-B6: Oscilloscope Software, 4-Bit Pattern Generator, Waveform Generator
143-9341 - RTB-B243: Oscilloscope Software, 300 MHz Bandwidth Upgrade
143-9329 - RTB-K1: I2C/SPI Trigger & Decode
143-9330 - RTB-K2: UART/RS232 Trigger & Decode
143-9331 - RTB-K3: CAN/LIN Trigger & Decode
143-9332 - RTB-K15: History & Segmented Memory Module
184-9849 - RTB-K36: Oscilloscope Software, Bode Plot Analysis

• Performance: Bandwidths up to 1 GHz
