Rohde & Schwarz RTC1000 Series RTC1002 Oscilloscope, Benchtop Digital Oscilloscope, 2 Channels, 100MHz

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CZ
Product Details

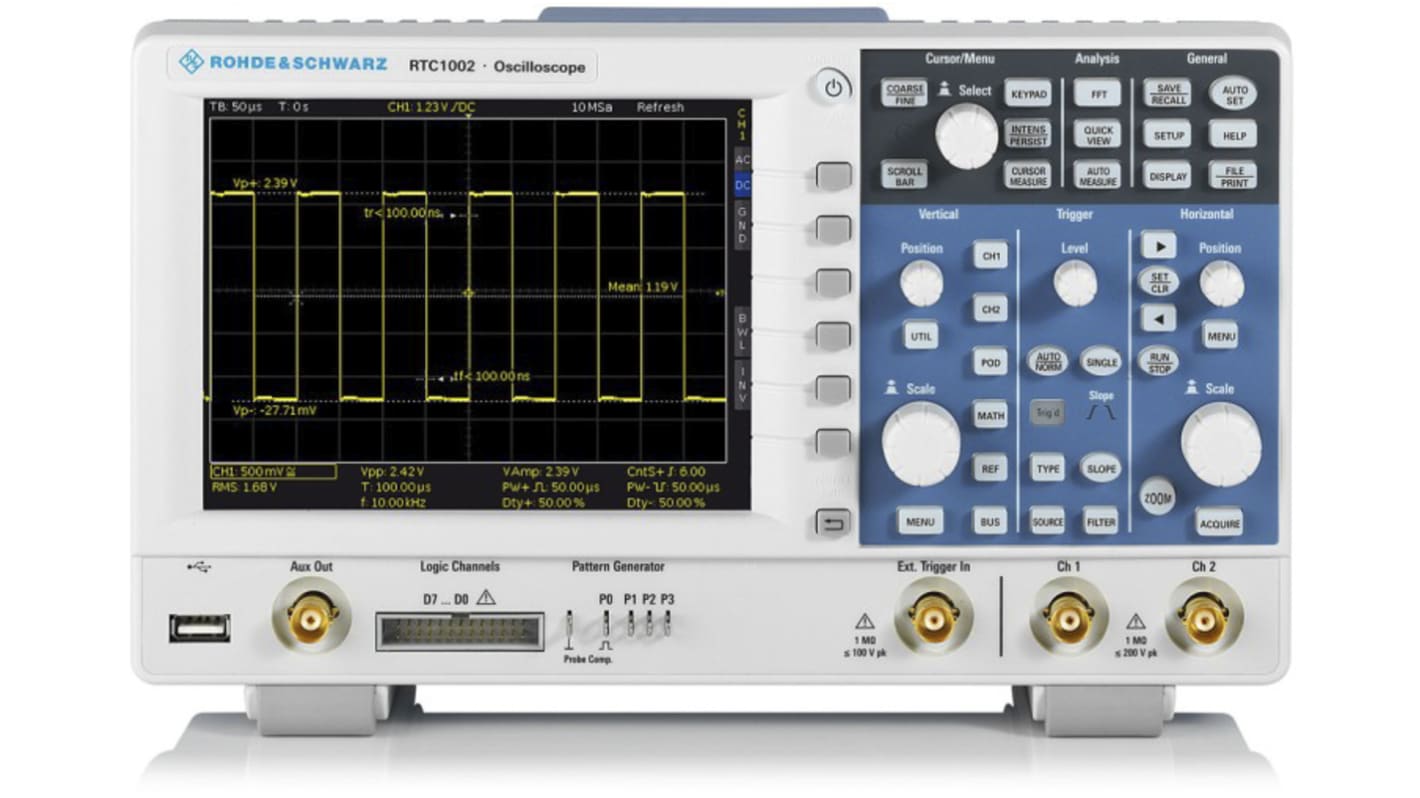

Rohde & Schwarz RTC1000 Series RTC1002 Oscilloscope

The Rohde & Schwarz RTC1000 digital oscilloscope is designed with high vertical sensitivity and can perform multiple functions. It allows a bandwidth of 100MHz, memory depth of 2Mpts and sampling rate of 2Gsa/s. This oscilloscope also has a function generator for different types of signals having frequencies up to 50KHz. It allows you to perform voltage measurements on analogue channels with two values simultaneously. This oscilloscope benefits you with different functions such as digital logic, protocol and frequency analysis on a single instrument.

Features and Benefits

Allows multiple functions with software licence such as bandwidth upgrade and serial bus analysis Fanless design for better performance Low noise due to 8 bit analogue to digital converters Separate RTC-B1 logic probe suitable for all the RTC1000 oscilloscopes Optional logical analyser

Applications

Educational institutes Used by service technicians R&D troubleshooting and production testing

Specifications
Attribute Value
Number of Channels 2
Bandwidth 100MHz
Oscilloscope Type Benchtop Digital Oscilloscope
Series RTC1000
Power Source Mains
Display Type VGA Colour
Minimum Vertical Sensitivity 1mV/div
Maximum Vertical Sensitivity 10V/div
Minimum Time Base 1ns/div
Screen Size 6.5in
Sample Rate Random 2 Gsps
Rise Time 3.5ns
Vertical Resolution 8 bit, 16 bit
Model Number p RTC1002
Plug Type Type A - North American/Japanese 2-blade, Type B - North American 3-pin
Available to back order for despatch 27/02/2020, delivery within 2 working days
Price Each
£ 931.50
(exc. VAT)
£ 1,117.80
(inc. VAT)
Units
Per unit
1 +
£931.50
Not available for guaranteed pre 9am/10am delivery
