Red Pitaya STEMlab Series STEMLab125-10 Oscilloscope, PC Based, 2 Channels, 40MHz

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Red Pitaya STEMLab 125-10 Diagnostic Kit

The STEMLab 125-10 Diagnostic kit consists of the following Red Pitaya hardware and functionality, all ready to go:

Test & Measurement Instruments

Oscilloscope Signal generator
Spectrum analyser
Bode analyser
Logic analyser basic
Access to the Red Pitaya marketplace which is a place where free of charge open source applications developed by red Pitaya community members are available within a single click for immediate experience and use

Development & Learning Tools / Features

MATLAB / LABVIEW remote control Possibility to create own app (open source code available)

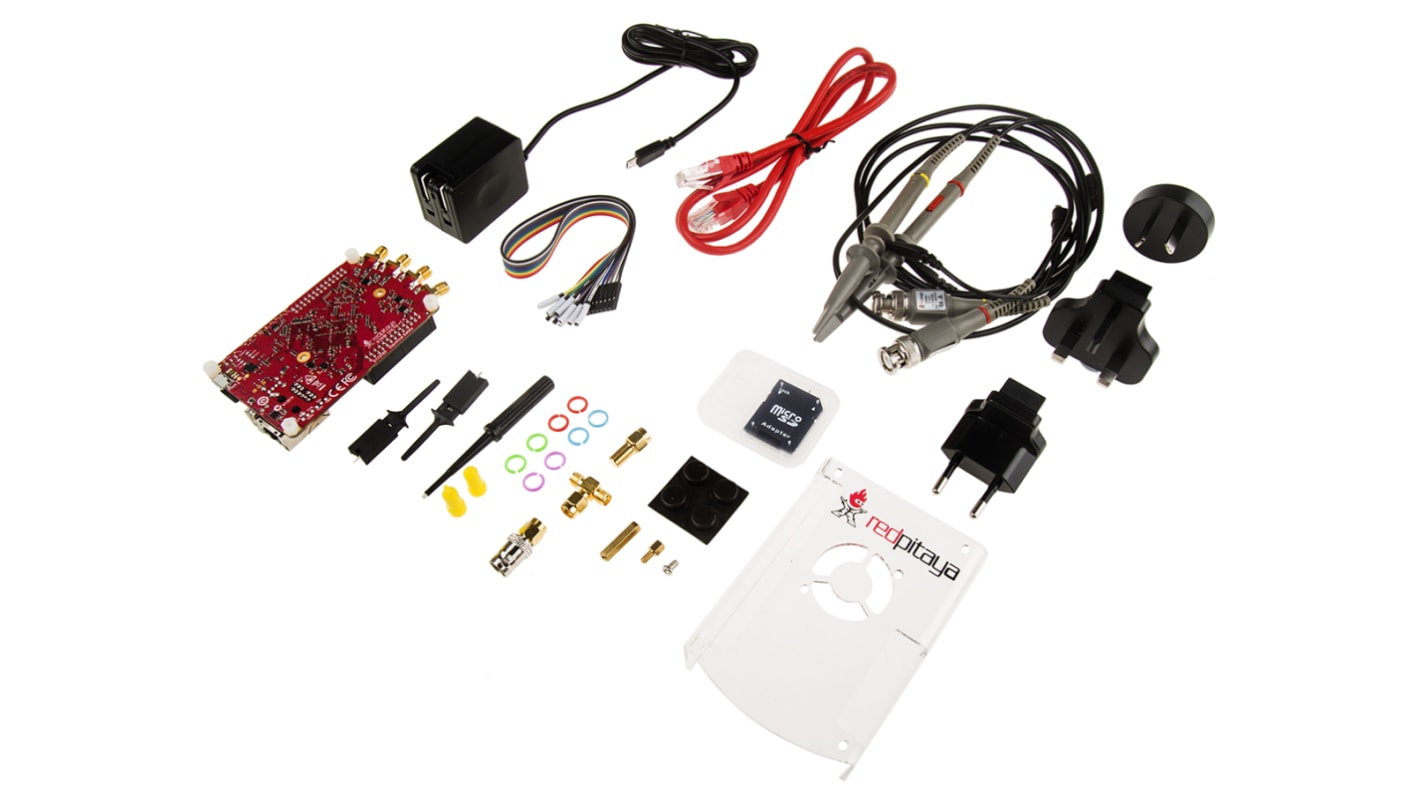

Accessories

SD card Power supply
Ethernet cable
2 x oscilloscope probes
2 x SMA to BNC adapters
2 x 50 ohm termination
2 x SMA T adapters
Wi-Fi dongle
Acrylic case

Other

Compliance, CE, FCC

Red Pitaya Hardware

Red Pitaya STEMLab 10 board Connectivity (ethernet, Wi-Fi)

Red Pitaya PC Based Instruments

Specifications
Attribute Value
Number of Channels 2
Bandwidth 40MHz
Oscilloscope Type PC Based
Series STEMlab
Power Source USB Connector
Sample Rate Random 100 Ksps, 125 Msps
Model Number p STEMLab125-10
15 In stock for FREE next working day delivery
Price Each
£ 215.00
(exc. VAT)
£ 258.00
(inc. VAT)
Units
Per unit
1 +
£215.00
