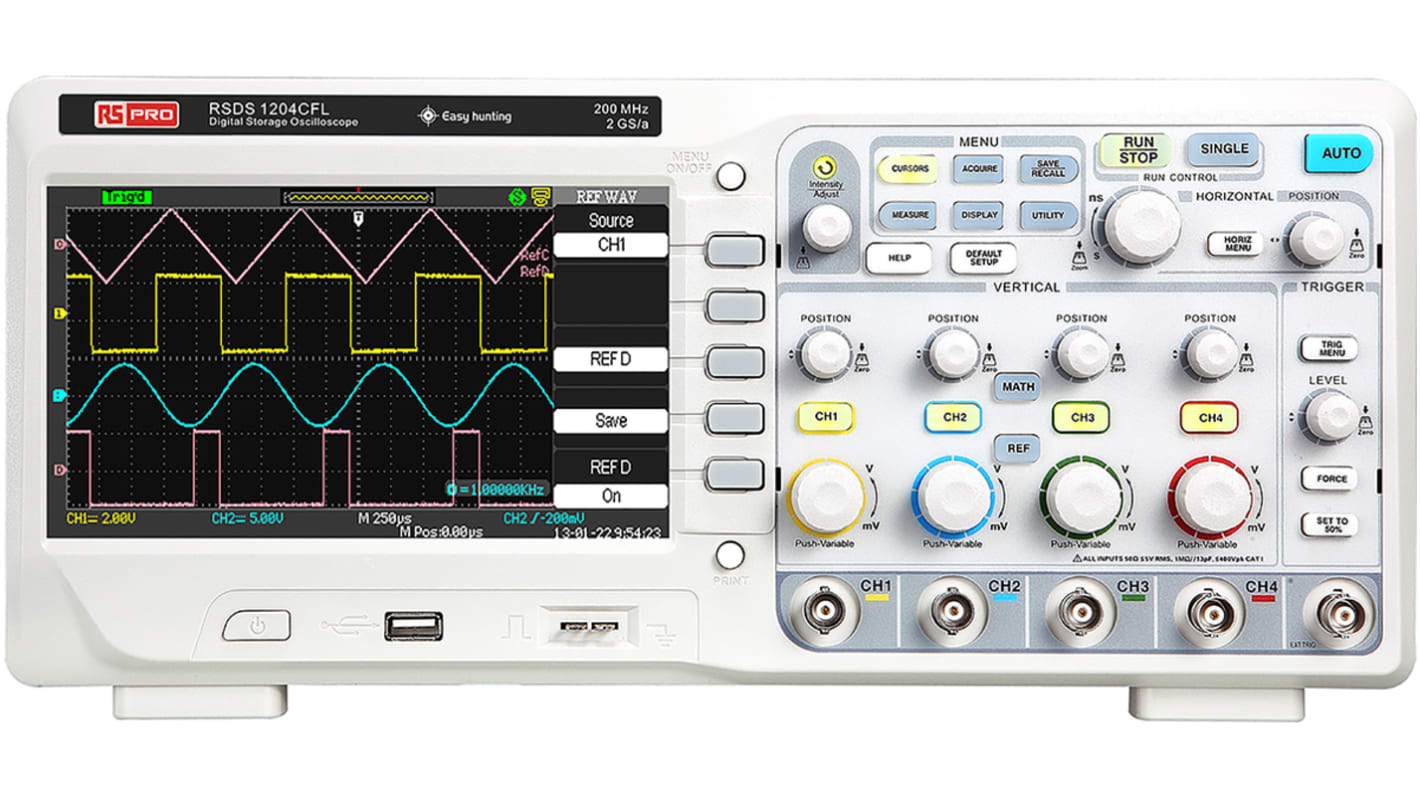

RS PRO RSDS1204CFL Oscilloscope, Digital Storage, 4 Channels With UKAS Calibration, 200MHz

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RS Pro RSDS1000CFL Series Digital Storage Oscilloscopes

RS Pro RSDS1000CFL Series digital storage oscilloscopes offer faster sampling rates and higher bandwidths than other RSDS1000 Series scopes. They provide four channels, with an external trigger input channel. Bandwidth is up to 300 MHz, depending on choice of model. A set of separate vertical controls for each input channel means there are no risks of accidentally modifying the wrong trace. There is no need to switch between channels, as is the case with some other oscilloscopes. Powerful triggering and analysis capabilities make it easy to capture and analyse waveforms, greatly improving test efficiency.

Features and Benefits

7 inch (177.8 mm) colour TFT LCD display
4 channel models, bandwidth 70 MHz, 100 MHz, 200 MHz or 300 MHz, depending on choice of model
Single channel real-time sampling rate is 2 GSa/s, equivalent sampling rate 50 GSa/s
Memory depth 24 Kpts
Trigger types Edge, Pulse, Video, Slope and Alternative
Powerful digital filter function and waveform recorder function
Auto measurement of thirty-two parameters
2/4 groups’ reference waveforms, 20 groups of captured waveforms and 20 groups of setups
Internal save/recall function and USB flash drive save/recall function
Cursor types include Manual mode, Track mode and Auto mode
Channel waveform and its FFT waveform display on split screen or full screen
Four Screen display styles - Classical, Modern, Tradition, Succinct
Multiple language user interface
Supports built-in online help system
Standard interfaces are Dual USB Host, USB Device, LAN Port, Pass/Fail Out
Dimensions 358 x 156 x 118 mm
Weight 4.5 kg

Oscilloscope Accessories

123-6470 - black soft carrying bag
123-6471 - black soft carrying case

Approvals

CAN/CSA-C22.2 No. 61010-1

Supplied with

Probe (1 per channel), power cable, qualified certification, CD (including EasyScope computer software system), user manual, USB cable

Calibrated Options:

123-6441 (Non-calibrated)
123-6502 (RSCAL)
123-6503 (UKAS)

RS Pro

Specifications
Attribute Value
Number of Channels 4
Bandwidth 200MHz
Oscilloscope Type Digital Storage
Series RSDS1000
Calibrated UKAS
Power Source Mains
Display Type Colour, TFT LCD
Minimum Vertical Sensitivity 2mV/div
Maximum Vertical Sensitivity 5V/div
Minimum Time Base 1ns/div
Screen Size 177.8mm
Sample Rate Random 1 (Real Time) G samples/s, 50 (Equivalent) G samples/s
Model Number p RSDS1204CFL
Safety Category Level CAT I, CAT II
Rise Time <1.8ns
Vertical Resolution 8 bit
29 In stock for delivery within 2 working days
Price Each
£ 993.98
(exc. VAT)
£ 1,192.78
(inc. VAT)
Units
Per unit
1 +
£993.98
Not available for guaranteed pre 9am/10am delivery
