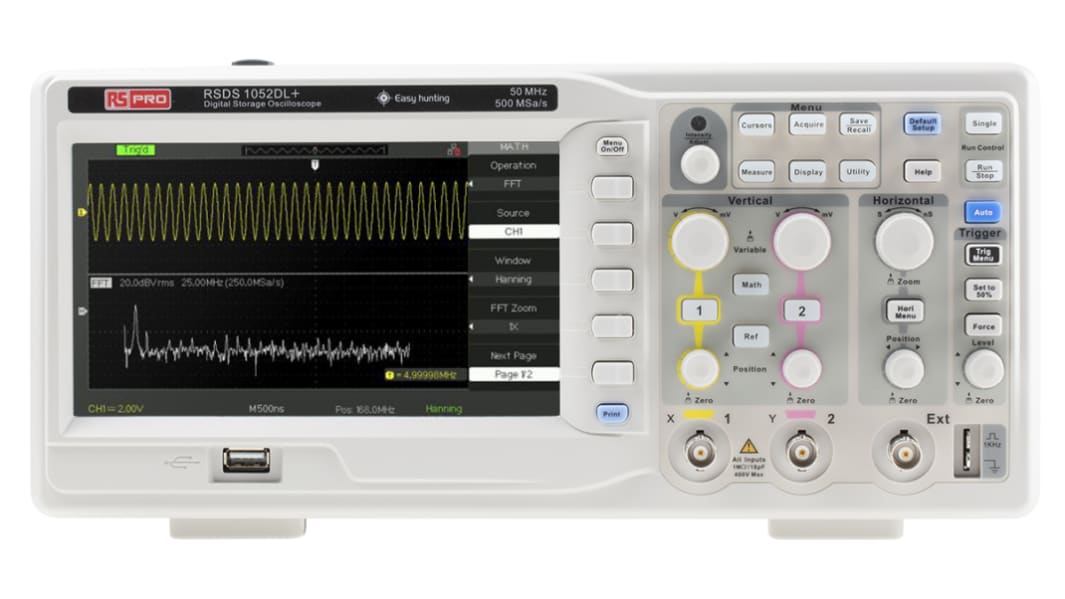

RS PRO RSDS 1052 DL + Oscilloscope, Digital Storage, 2 Channels, 50MHz

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RS Pro RSDS1000CML+/DL+ Series Digital Storage Oscilloscopes

RS Pro RSDS1000CML+/DL+ Series is a dual-channel universal digital oscilloscope available in 50 MHz, 70 MHz, 100 MHz and 150 MHz bandwidth models. All models have a 7 inch (177.8 mm) TFT LCD (800 x 480) screen which provides the space for better seeing and analysing waveform details.The RSDS1000CML+ models include a 2 Mpts memory depth which helps to ensure accurate waveform resolution and to capture longer signal lengths. Along with a 1 GSa/s sampling rate, the SDS1000CML+ supports 32 parameters and common mathematical operations to speed up complex and/or repetitive measurements. The RSDS1000DL+ model has 32 Kpts memory depth and 500 MSa/s sampling rate.

Features and Benefits

Choice of 50 MHz,150 MHz, 100 MHz and 70 MHz bandwidth models
Real-time sampling rate up to 1 GSa/s (depending on choice of model), equivalent-time sampling rate up to 50 GSa/s
Memory depth to maximum 2 Mpts (depending on choice of model)
Trigger types Edge, Pulse, Video, Slope, Alternate
Waveform math functions+, -, *, /, FFT
6 digit frequency counter
Supports multi-language display and embedded online help
Screensaver from 1 minute to 5 hours
Digital filter and waveform recorder function
Shortcut storage function key
7 inch TFT LCD display with 800 x 480 resolution
Multiple interfaces USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail
Dimensions 323.1 x 135.6 x 157 mm
Weight 2.5 kg

Oscilloscopes Accessories

123-6471 - black soft carrying case

Supplied with

Passive probe 1:1/10:1 (x2), USB cable, quick start guide, certificate of calibration, quality certificate, power cord, CD (includes user manual and EasyScopeX software)

RS Pro

Specifications
Attribute Value
Number of Channels 2
Bandwidth 50MHz
Oscilloscope Type Digital Storage
Power Source Mains
Display Type TFT LCD
Minimum Vertical Sensitivity 2mV/div
Maximum Vertical Sensitivity 10V/div
Minimum Time Base 10ns/div
Screen Size 7in
Sample Rate Random 50 GSa/s
Vertical Resolution 8 bit
Safety Category CAT I 400 V, CAT II 400 V
Safety Category Voltage 400V
Safety Category Level CAT I, CAT II
Rise Time 7ns
Model Number p RSDS 1052 DL +
5 In stock for FREE next working day delivery
Price Each
Was £322.30
£ 299.00
(exc. VAT)
£ 358.80
(inc. VAT)
Units
Per unit
1 +
£299.00
