RS PRO IDS207 Oscilloscope, Digital Storage, 2 Channels With RS Calibration, 70MHz

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

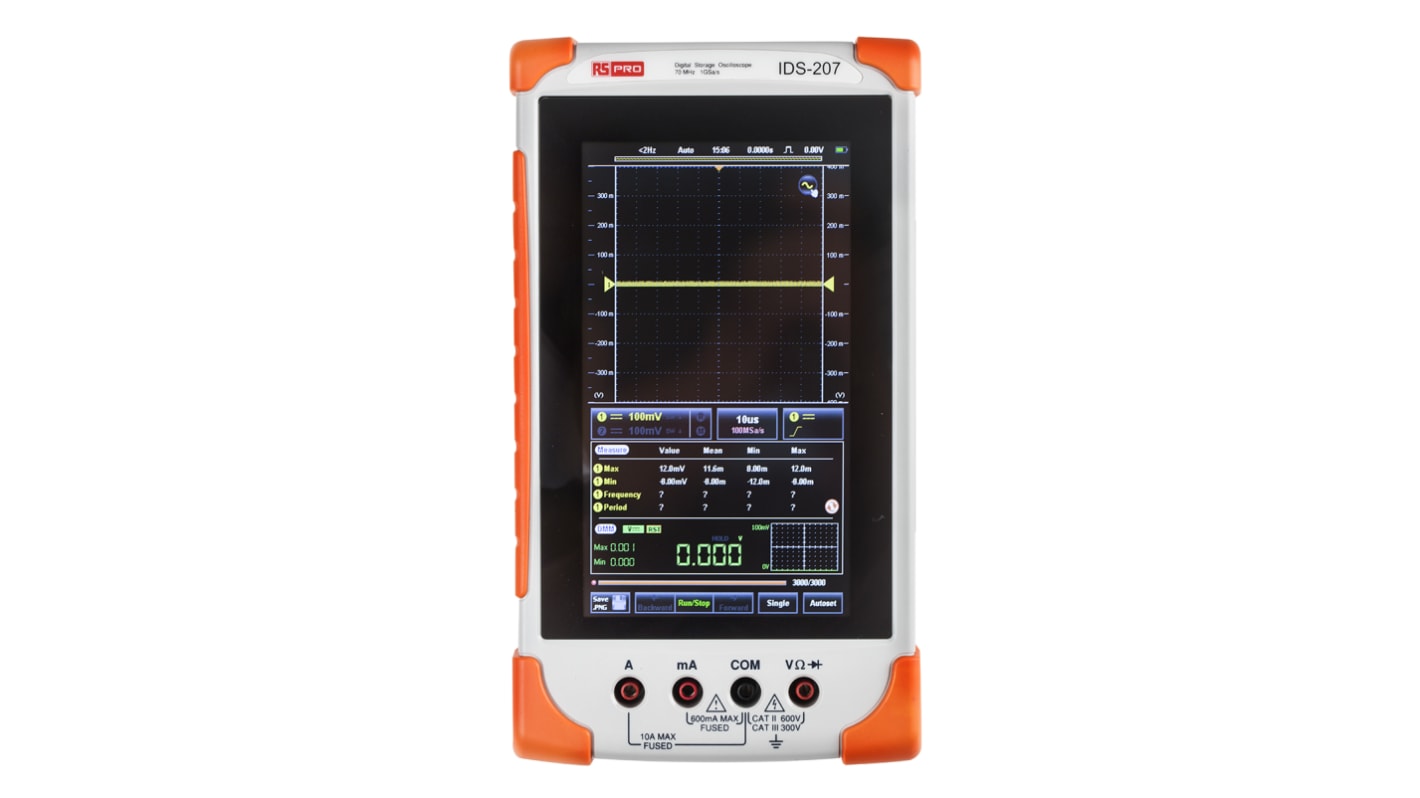

RS Pro IDS-200 Series Handheld Digital Storage Oscilloscope with Digital Multimeter

RS Pro IDS-200 Series handhelds have a multi-point touch panel which enables engineers to easily move waveform positions, adjust waveform size and set trigger conditions. DUT signals can be retrieved quickly and easily. Landscape or portrait measurement display gives the opportunity to create a multi-functional measurement environment which clearly displays waveforms under full-screen status.

Features and Benefits

Choice of 200 MHz or 70 MHz models, each with 2 input channels
Built-in 5000 counts digital multimeter, 3 digits resolution
Simultaneous DMM and DSO operation
Portrait and landscape display modes
1 GSa/s maximum sample rate
Maximum 1 Mpts memory depth
7 inch 800 x 480 full touch panel capacitive LCD multi-point control
36 automatic measurement functions
DCV, DCA, ACV, ACA, R, diode, continuity
Edge, Alt, Video and Pulse trigger functions
FFT, FFTrms, +, -, /, math functions
30 000 consecutive waveform records logging function, replay measurement results any time
Built-in engineering calculator, SMD resistance coding, colour coding, attenuator calculation
X-Y mode, Go/No Go, Trend plot
Shielded BNC terminals
7.4 V/6100 mAH battery for up to 4 hours operation
Fuse protection for the current ports

Areas of Application

Large electric system tests
Power product tests
Motor tests
Solar power battery inspection and repair
Field assignments

Supplied with

Quick start guide, user manual CD, power cord, passive probe, multimeter test lead (x2), soft carrying case (large), protection bag (small), AC-DC adapter, wrist strap

RS Pro

Specifications
Attribute Value
Number of Channels 2
Bandwidth 70MHz
Oscilloscope Type Digital Storage
Series IDS200
Calibrated RSCAL
Power Source Mains
Display Type LCD
Minimum Vertical Sensitivity 2mV/div
Maximum Vertical Sensitivity 10V/div
Minimum Time Base 5 ns/div, 100 (ROLL) ms/div
Screen Size 7in
Sample Rate Random 1 G samples/s
Plug Type UK
Rise Time <5ns
Safety Category Level CAT II, CAT III
Model Number p IDS207
Safety Category CAT II 600 Vrms, CAT III 300 Vrms
Safety Category Voltage 300 Vrms, 600 Vrms
Discontinued product
