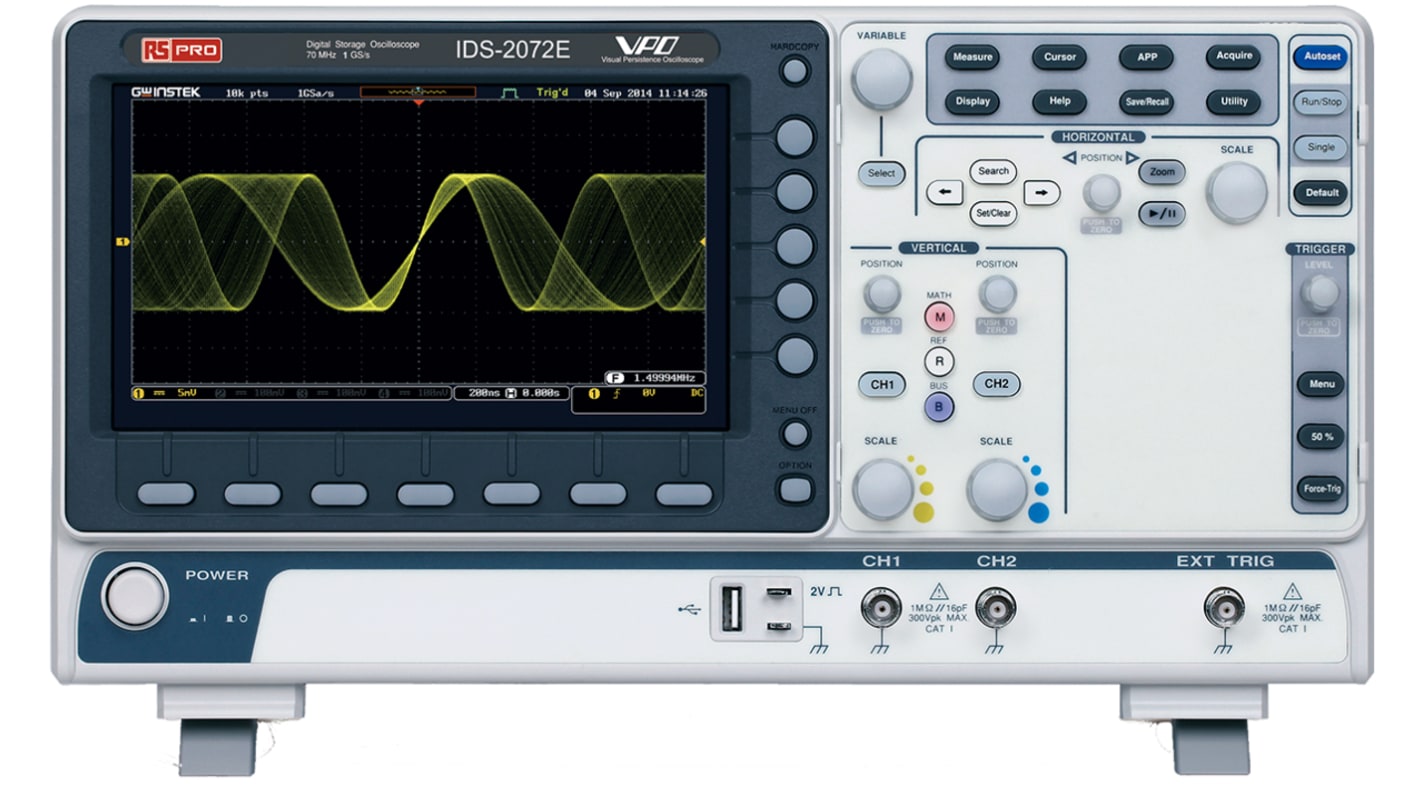

RS PRO IDS2072E Oscilloscope, Digital Storage, 2 Channels With UKAS Calibration, 70MHz

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS Pro IDS-2000E Series Visual Persistence Oscilloscopes

RS Pro IDS-2000E Series digital storage oscilloscopes offer features normally only available on much higher-priced scopes or as expensive add-ons. The models are equipped with Visual Persistence Oscilloscope (VPO) technology. This uses a high-density IC for hardware acceleration to transfer all the acquired data into the displayed waveform image. RS Pro IDS-2000E Series can clearly display complex and random waveforms using its 8 inch 800 x 400 16:9 TFT LCD display and maximum 1 mV/div vertical range.

Features and Benefits

10 M depth of memory
VPO waveform display technology
Waveform update rate 120 000 wfm/sec
8 inch 800 x 480 TFT LCD display
Maximum 1 Mpts FFT
Digital filter function
Segmental waveform and waveform search functions
l²C/SPI/UART/CAN/LIN serial bus trigger and decoding function
Datalog function for waveform observation in long period of time
Network storage function
Dimensions 384 x 208 x 127.3 mm
Weight 2.8 kg

Note

PC software (OpenWave software) and Driver (USB driver, LabView driver) freely downloadable

Supplied with

Switchable passive probe (1 per channel), quick start guide, user manual on CD, power cord

RS Pro

Specifications
Attribute Value
Number of Channels 2
Bandwidth 70MHz
Oscilloscope Type Digital Storage
Series IDS2000
Calibrated UKAS
Power Source Mains
Display Type LCD
Minimum Vertical Sensitivity 1mV/div
Maximum Vertical Sensitivity 10V/div
Minimum Time Base 1 ns/div, 100 (ROLL) ms/div
Screen Size 8in
Sample Rate Random 1 G samples/s
Plug Type UK
Safety Category CAT I 300 Vrms, CAT II 300 Vrms
Safety Category Level CAT I, CAT II
Vertical Resolution 8 bit
Rise Time 5ns
Model Number p IDS2072E
7 In stock for delivery within 2 working days
Price Each
£ 788.36
(exc. VAT)
£ 946.03
(inc. VAT)
Units
Per unit
1 +
£788.36
Not available for guaranteed pre 9am/10am delivery
