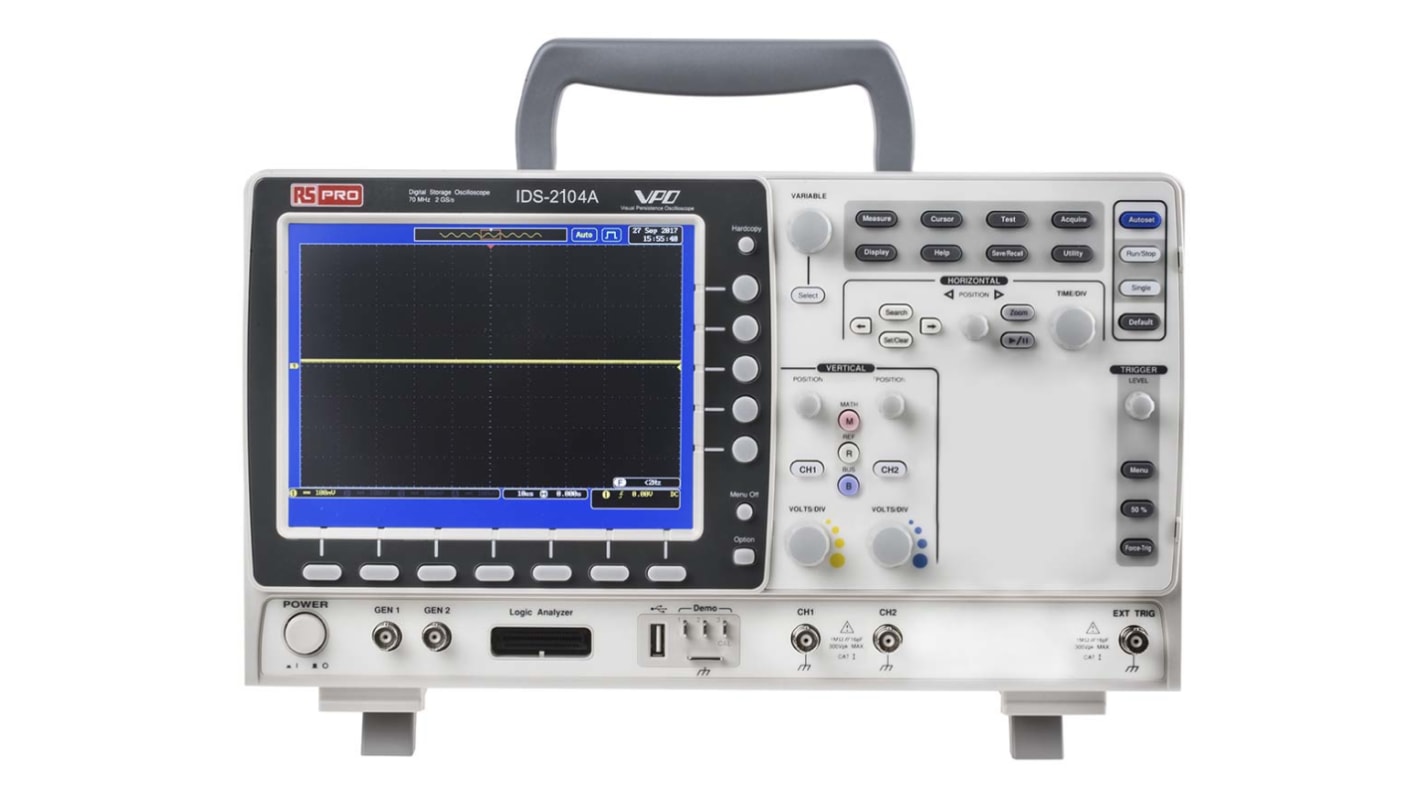

RS PRO IDS2104A Oscilloscope, Digital Storage, 4 Channels With RS Calibration, 100MHz

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS Pro IDS-2000A Series Visual Persistence Oscilloscopes

RS Pro IDS-2000A Series digital storage oscilloscopes have Visual Persistence Oscilloscope (VPO) technology, which uses grayscale display of waveforms to distinguish signals from one another according to their occurrence frequencies (colour mode can be selected to differentiate the occurrence frequencies among various waveforms on the screen). IDS-2000A Series incorporates 2 Mpts record length, waveform search and segmented memory as standard features. Efficiencies in memory use result because events of interest can be captured and saved into the segmented memory (2048 sections) for observation, while irrelevent waveforms can be ignored. IDS-2000A can Search and Mark waveform sections which comply with user-defined search condition and threshold levels within the whole memory. All waveforms can be navigated efficiently using the Zoom window and Play/Pause button. The fast waveform update rate of 80 000 wfm/s enables accurate acquisition and examination of inrush signals and elusive glitches without missing any detail.

Features and Benefits

2 GSa/s real-time sampling rate
100 GSa/s equivalent time sampling rate (ETSR)
2 Mpts maximum record length
8 inch 800 x 600 high-resolution TFT LCD display
1 mV/div to 10 V/div of vertical range
1 ns/div to 100 s/div of time base range
80 000 wfm/s of waveform update rate
Built-in segmented memory and waveform search functions
Zoom window and Play/Pause
36 automatic measurement functions
RS-232C interface and USB port
PC software and drivers freely downloadable
Rear panel security slot (for connecting standard Kensington-style lock)
Dimensions 380 x 220 x 145 mm
Weight approximately 4.2 kg

Areas of Application

General industrial
Electronic and electrical engineering
Signal analysis
Trouble diagnostics
Defect debugging
Systems development
Education

Supplied with

User manual CD, quick start guide, power cord, switchable passive probe (1 per channel)

RS Pro

Specifications
Attribute Value
Number of Channels 4
Bandwidth 100MHz
Oscilloscope Type Digital Storage
Series IDS2000
Calibrated RSCAL
Power Source Mains
Display Type LCD
Minimum Vertical Sensitivity 1mV/div
Maximum Vertical Sensitivity 10V/div
Minimum Time Base 1 ns/div, 100 (ROLL) ms/div
Screen Size 8in
Sample Rate Random 2 G samples/s
Safety Category Level CAT I, CAT II
Plug Type UK
Vertical Resolution 8 bit
Safety Category CAT I 300 Vrms, CAT II 300 Vrms
Model Number p IDS2104A
Rise Time 3.5ns
23 In stock for delivery within 2 working days
Price Each
Was £1,346.87
£ 1,221.68
(exc. VAT)
£ 1,466.02
(inc. VAT)
Units
Per unit
1 +
£1,221.68
Not available for guaranteed pre 9am/10am delivery
