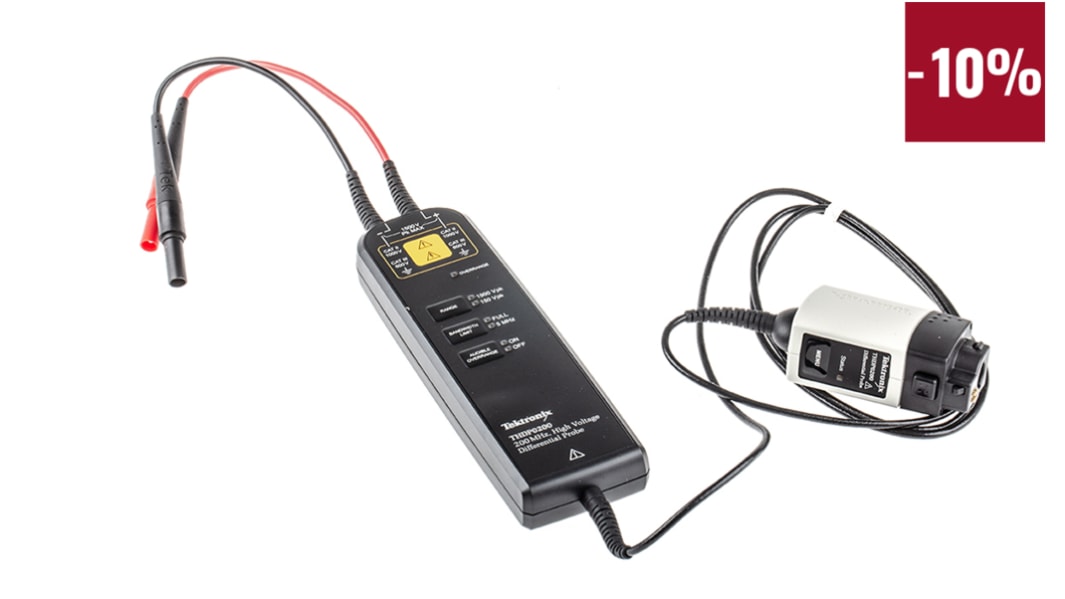

Tektronix THDP0200 Oscilloscope Probe, Probe Type: Differential, High Voltage 200MHz 1.5kV 1:50, 1:500

  • RS Stock No. 752-7357
  • Mfr. Part No. THDP0200
  • Brand Tektronix
Technical Reference
Legislation and Compliance
RoHS Status: Exempt
COO (Country of Origin): CN
Product Details

Tektronix High Voltage Differential Probes TMDP, THDP and P52xxA Series

Tektronix high voltage probing solutions offer safety and accuracy in applications which include: floating measurements; switching power supply design; motor drive design; electronic ballast design; CRT display design; power converter design and service; power device evaluation.

Overrange indicator
Safety certified
Switchable attenuation
Switchable bandwidth limit
Cable length 1.5m (THDP & TMDP), 1.8m (P52xxA)

Note

TMDP and THDP Series probes have the TekVPI® interface which enables smart communication between oscilloscope and probe - each TekVPI probe features controls and indicators located on the probe compensation box, designed to provide quick and easy access to the probe's most commonly required setup controls and operating status. P52xxA Series probes have the Tektronix TekProbe® interface which communicates scale information to the oscilloscope. Tektronix high voltage differential probes include: TMDPO200 ( 752-7366 ); THDPO200 ( 752-7357 ); THDP0100 ( 752-7353 ); P5200A ( 734-5029 ); P5202A ( 734-5022 ); P5205A ( 734-5026 ); P5210A ( 734-5035 ).

Tektronix Oscilloscope Probes

The Tektronix is an active differential oscilloscope probe capable of safely measuring differential voltages up to ±1500V. This probe is effective in making measurements in IGBT circuits such as motor drives and power converters. It supports bandwidths up to 200MHz and slew rates up to 275V/ns at 1/250 gain.
A broad portfolio of high-voltage probing solutions that enable users to safely and accurately make floating measurements.
Note:
TMDP and THDP Series probes have the TekVPI® interface which enables smart communication between oscilloscope and probe - each TekVPI probe features controls and indicators located on the probe compensation box, designed to provide quick and easy access to the probe's most commonly required set-up controls and operating status. P52xxA Series probes have the Tektronix TekProbe® interface which communicates scale information to the oscilloscope.
The THDP0100 is capable of measuring floating voltages up to 6000V safely. An over-range visual and audible indicator warns the user when the linear range of the probe is exceeded.
Supplied with:
• 2 probe tips
• 2 large hook clips
• 2 small hook clips
• 2 probe heads

Features and Benefits

• Bandwidth is DC to 100MHz
• Attenuation ratio is 1:100 and 1:1000
• Rise time is 3.5ps
• Input impedance is 10Mohmll2pF
• Maximum common mode voltage is ±1.5KV
• Maximum Input voltage is 1000V CAT II 600V CAT III
• Wide compensation range (7pF-30pF)
• CMRR (typical) is DC: > -80dB 100kHz: > -60dB 3.2MHz: > -30dB 100MHz: > -26dB
• Overrange Indicator
• Safety Certified
• Switchable attenuation
• Switchable bandwidth limit

Applications

• Floating measurements
• Switching power supply design
• Motor drive design
• Electronic ballast design
• CRT display design
• Power converter design and service
• Power device evaluation
• BNC interface (P5200A probes)
• TekVPI interface (TMDP and THDP Series probes)
• TekProbe interface

Certifications

• CAT II 1000 V
• CAT III 600 V

Supplied with

2 hook clips, 2 pincer clips, 2 alligator clips, 2 extension cables, 2 test leads, high voltage differential browser, probe holder

Specifications
Attribute Value
Probe Type Differential, High Voltage
Attenuation 1:50, 1:500
Bandwidth 200MHz
Maximum Common Mode Input Voltage 1.5kV
Connector Type BNC
Model Number p THDP0200
Safety Category Level CAT II, CAT III
Safety Category Voltage 600 V, 1000 V
Series THD
Safety Category CAT II 1000 V, CAT III 600 V
Rise Time 1.8ps
11 In stock for FREE next working day delivery
Price Each
£ 1,890.00
(exc. VAT)
£ 2,268.00
(inc. VAT)
Units
Per unit
1 +
£1,890.00
