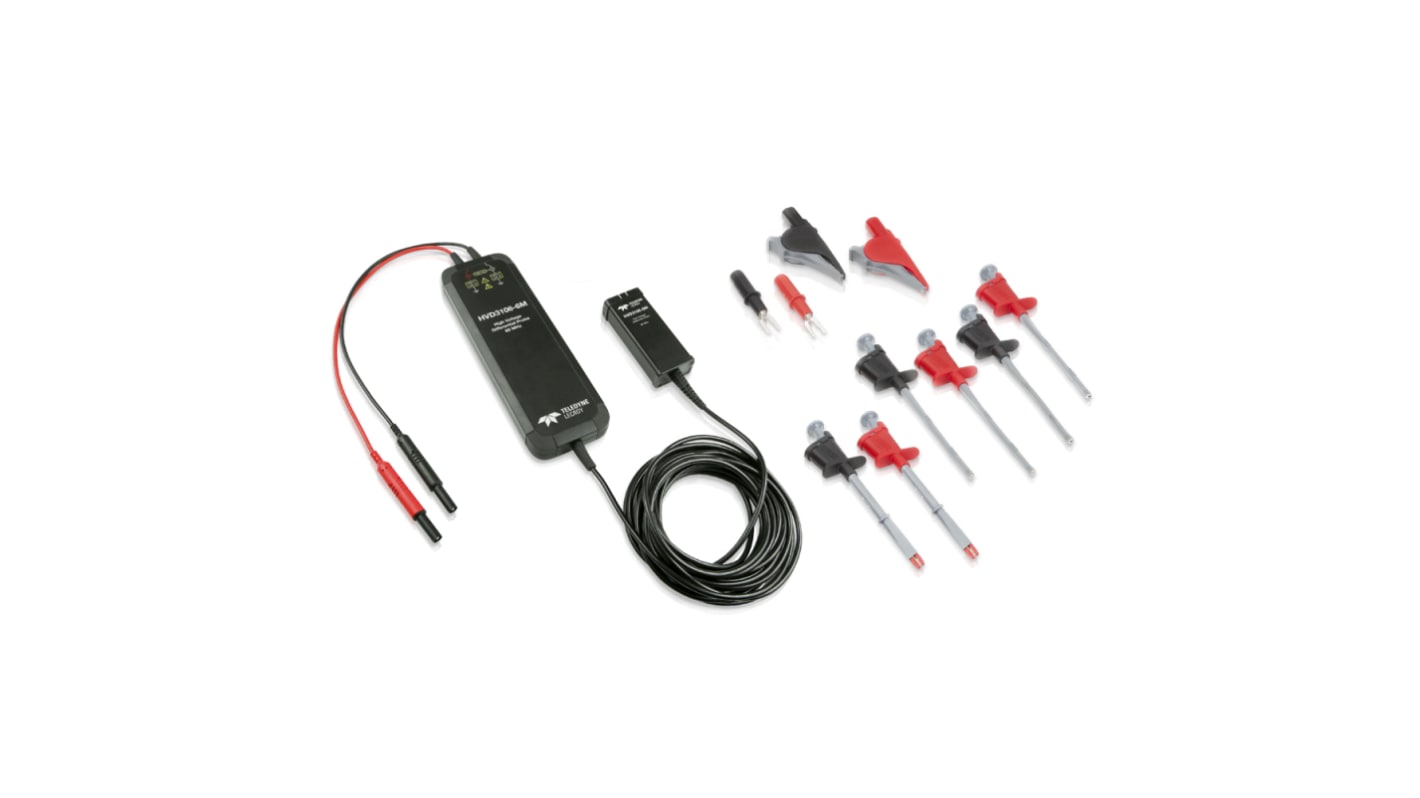

Teledyne LeCroy HVD3000A Series HVD3106A-6M Oscilloscope Probe, Differential Type, 80MHz, 1:50, 1:500
- RS Stock No.:
- 174-8870
- Mfr. Part No.:
- HVD3106A-6M
- Brand:
- Teledyne LeCroy
3 In stock for delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£3,350.00
(exc. VAT)
£4,020.00
(inc. VAT)
| Units | Per unit |
| 1 + | £3,350.00 |
- RS Stock No.:
- 174-8870
- Mfr. Part No.:
- HVD3106A-6M
- Brand:
- Teledyne LeCroy
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Teledyne LeCroy HVD3000A Series Probes
Teledyne LeCroy’s HVD3106A series of high voltage differential probes cover the fullest range of applications, from 120/240 V switch-mode power supplies through 600 V class and 1.5 kV electrical apparatus. The 1% gain accuracy coupled with exceptional common-mode rejection ratio provides an accurate and versatile probe suitable for use with a wide range of oscilloscopes
Features and Benefits
- Exceptional common-mode rejection ratio (CMRR) across a broad frequency range
- 1% gain accuracy
- High offset capability at both high and low attenuation
- AC and DC coupling
- ProBus active probe interface with automatic scaling
- AutoZero with auto disconnect switch
- Wide oscilloscope compatibility
Applications
- Applications
- Automotive
- Power Applications
- Motor Drive Development
- Product Design Applications
- 174-8868 - 1kV, 120 MHz High Voltage Differential Probe without tip Accessories and with Auto Zero Disconnect
- 174-8869 1kV, 120 MHz High Voltage Differential Probe with Auto Zero Disconnect
- 174-8870 - 1kV, 80 MHz High Voltage Differential Probe with 6m cable and Auto Zero Disconnect
Supplied with
Cable Length: 6m
Specifications
Attribute | Value |
|---|---|
| Probe Type | Differential |
| Attenuation | 1:50, 1:500 |
| Bandwidth | 80MHz |
| Maximum Common Mode Input Voltage | 6kV |
| Model Number p | HVD3106A-6M |
| Number of Probes | 1 |
| Series | HVD3000A |
| Safety Category | CAT III 1000V |
| Rise Time | 4.4ns |
