Pico Technology Case, Manual, Software, USB Cable 200 x 140 x 38mm RSCAL PicoScope 4424

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

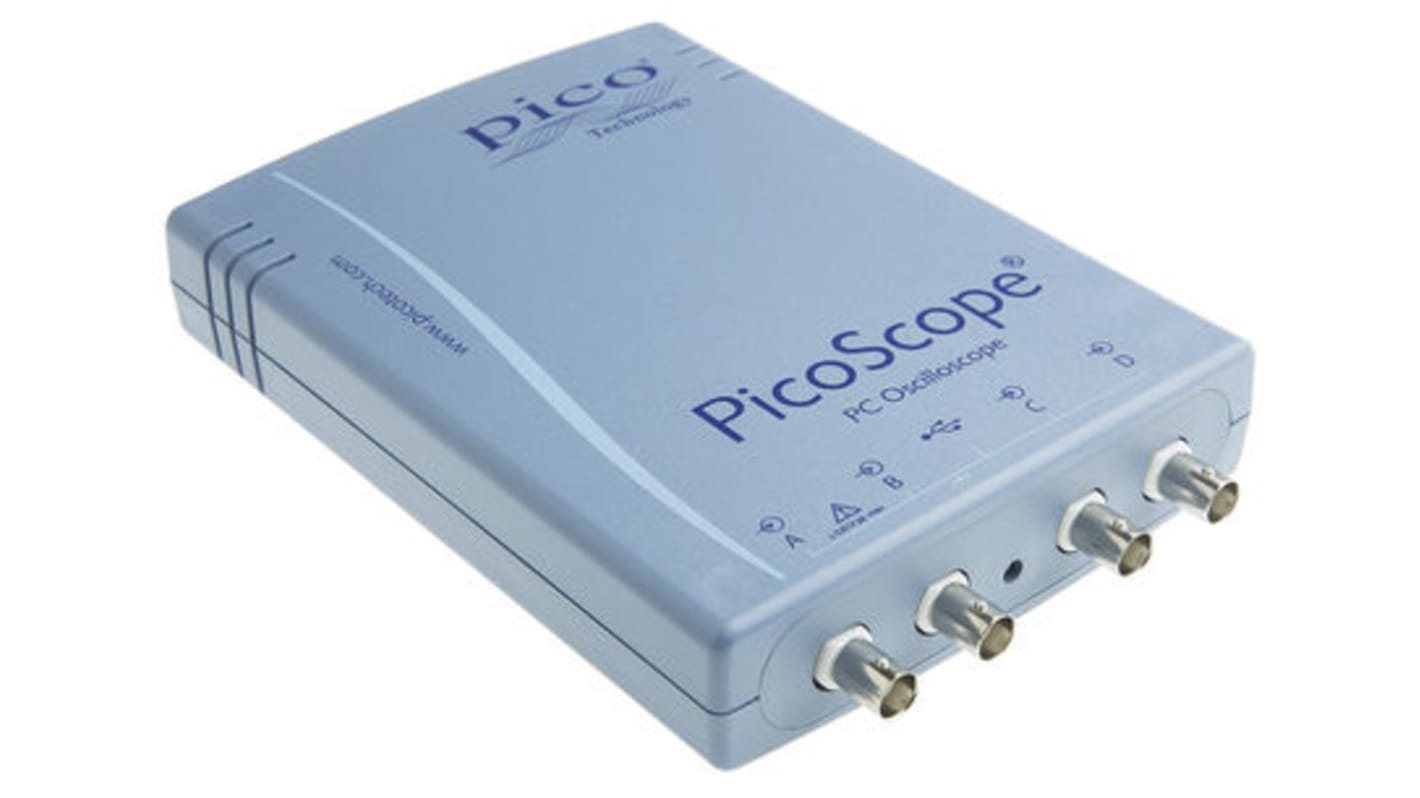

PicoScope 4000 Series Oscilloscopes

The PicoScope 4000 series high-precision PC oscilloscopes are designed to meet the requirements of modern electronic engineering servicing, design and debugging. With their high input resolution, they can detect or trigger on voltage changes of less than 50 μV. This makes them ideal for electromechanical applications such as monitoring transducers, and for spectral analysis of audio, noise and vibration. The PicoScope 4000 oscilloscopes are bundled with PicoScope software, 2 or 4 scope probes and a tough carry case.,All PicoScope® PC Oscilloscopes are powered by the PicoScope 6 Windows software, which frequently receives free updates, feature extensions and improvements. PicoScope 6 is powerful yet easy to operate. Its 26 automatic measurements, suite of advanced triggers and many other features can be quickly accessed using standard Windows controls.

Accurate to 1% 12-bit resolution inputs
25, 50 and 100 MHz bandwidths
2 or 4-channel models available
2 channel models with external trigger have a 100kHz bandwidth 20 MSPS waveform generator
32 Msample memory
Fast 80, 125 or 250 MS/s sample rates
USB 2.0 connection and power (USB 1.1 compatible)
PicoScope 6 software for XP, Vista and Windows 7 (32/64-bit) included
API compatible with LabVIEW, C, VB, Excel, Delphi, Agilent VEE

Pico Technology Oscilloscope kit

The Pico Technology PICOSCOP 4000 series 20MHz high precision USB oscilloscope kit offers a 12bit high-resolution and a high DC accuracy (1%), making it an excellent choice for noise, vibration, precision electronics and mechanical analysis. With their high input resolution, it can detect or trigger voltage changes of less than 50μV. It has a spectrum analyser, which can display the spectrum of a single non-repeating waveform.

Features and Benefits

• It has 4 channels
• Optional IEPE interface for accelerometers and microphones
• Buffer memory is 32MS
• Automatic measurements are 26
• Serial decoding and mask testing as standard
• Powered with a USB
• Windows, Mac and Linux software
• Mask limit testing with alarms
• Serial bus decoding
• Per-channel low pass filtering

Certifications

• EU standard
• EMC standard
• LVD standard
• FCC Rules Part 15 Class A

Pico PC Based Instruments

Specifications
Attribute Value
Model Number PicoScope 4424
Kit Contents Case, Manual, Software, USB Cable
Calibrated RSCAL
Dimensions 200 x 140 x 38mm
Height 38mm
Length 200mm
Width 140mm
Plug Type USB
10 In stock for delivery within 2 working days
Price Each
£ 1,029.00
(exc. VAT)
£ 1,234.80
(inc. VAT)
Units
Per unit
1 +
£1,029.00
Not available for guaranteed pre 9am/10am delivery
