- RS Stock No.:
- 234-7077
- Mfr. Part No.:
- PS2561F-1Y-A
- Brand:
- Renesas Electronics
- RS Stock No.:
- 234-7077
- Mfr. Part No.:
- PS2561F-1Y-A
- Brand:
- Renesas Electronics
Technical Reference
Legislation and Compliance
Product Details

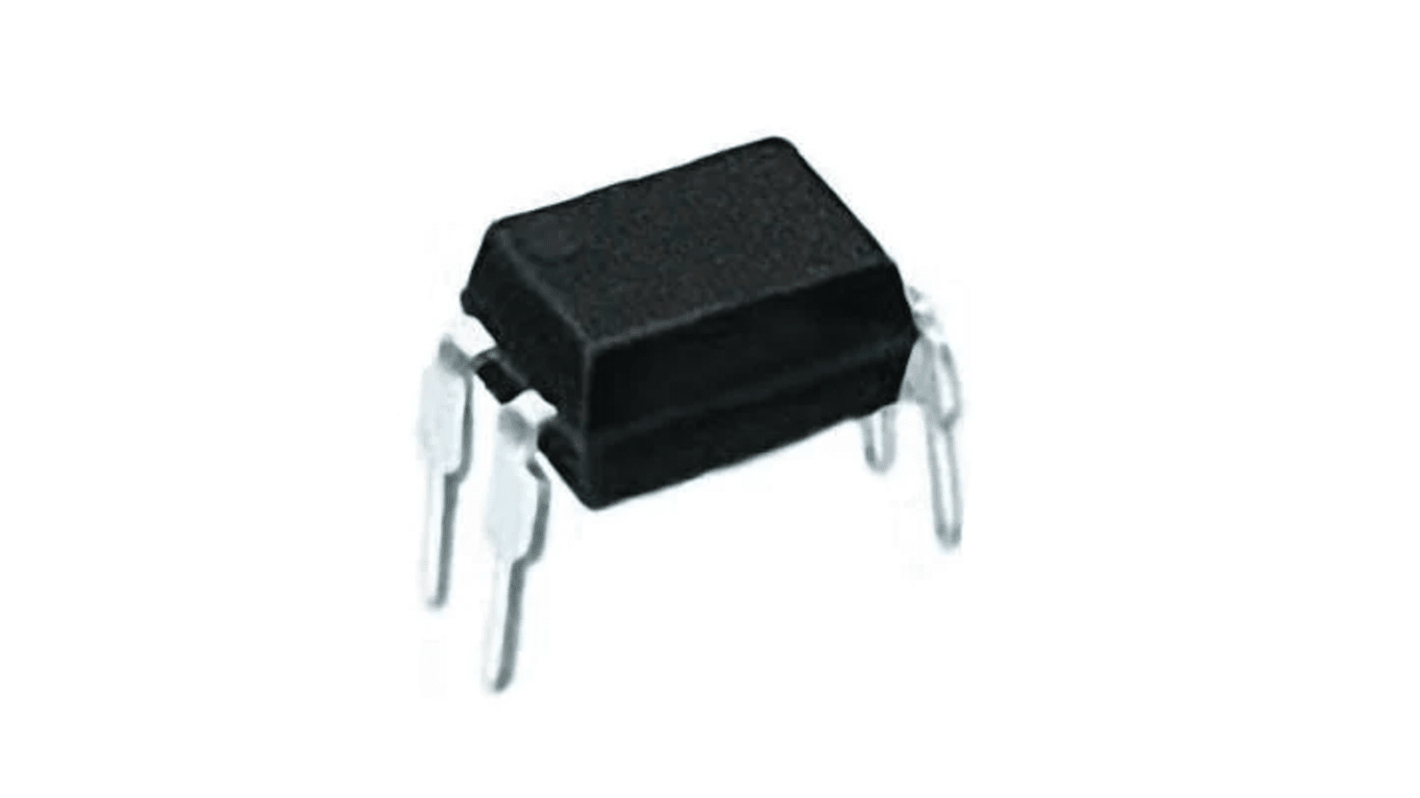

The Renesas Electronics optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor. It has high isolation voltage.
Operating ambient temperature of 110°C
High collector to emitter voltage
High current transfer ratio
High-speed switching
High collector to emitter voltage
High current transfer ratio
High-speed switching
Specifications
Attribute | Value |
---|---|
Mounting Type | Through Hole |
Output Device | Phototransistor |
Maximum Forward Voltage | 1.4V |
Number of Channels | 1 |
Number of Pins | 4 |
Package Type | DIP |
Input Current Type | DC |
