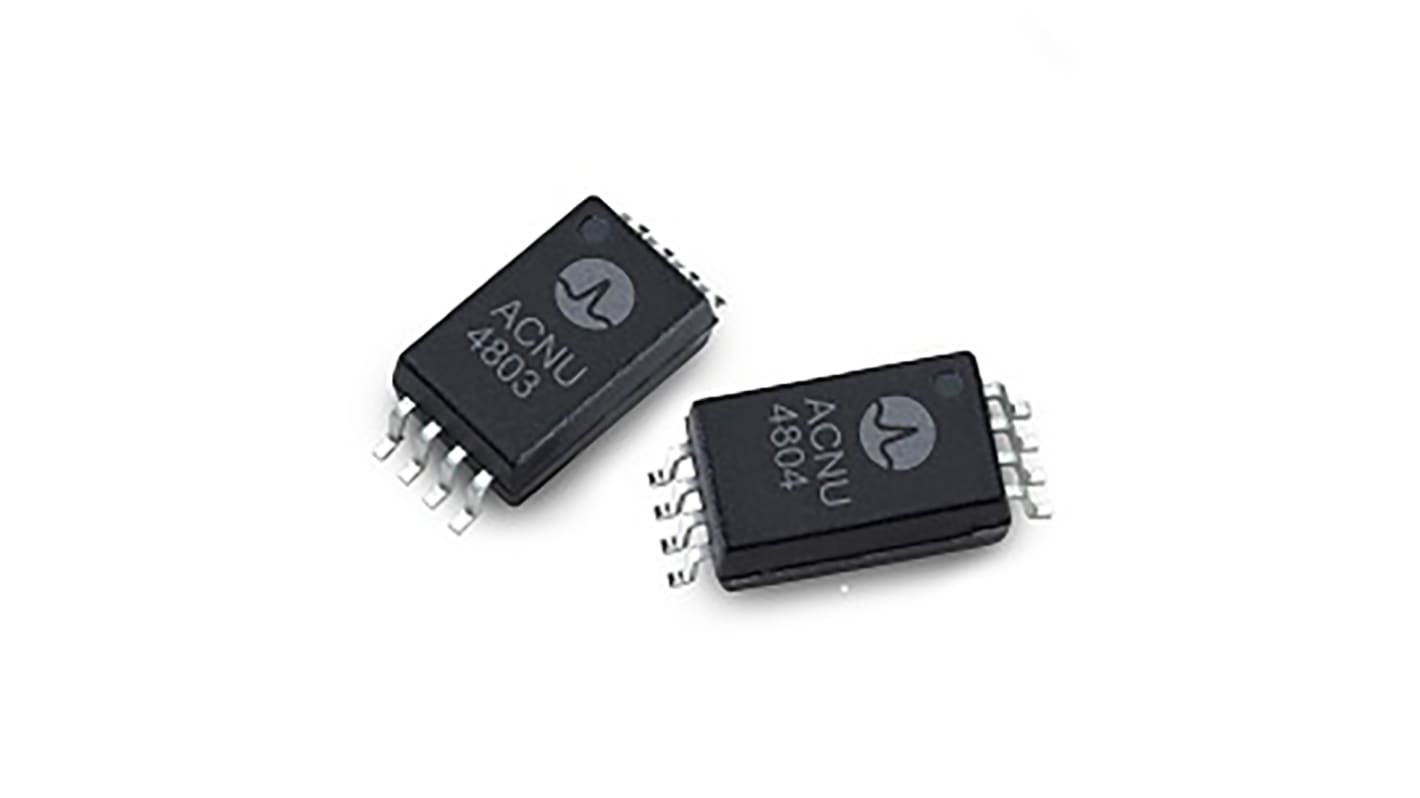

Broadcom Optocouplers, Max. Forward 1.85 V, Max. Input 20 mA, 9.6mm Length, Surface Mount Mounting Style

  • RS Stock No. 188-6470
  • Mfr. Part No. ACNU-4804-000E
  • Brand Broadcom
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

11-mm creepage and 10.5-mm clearance
Positive output type (totem pole output)
Truth table guaranteed: Vcc from 4.5V to 30V
Performance specified for common IPM applications over industrial temperature range
LED drive current: 12mA (min)
Minimum 50 kV/μs high common-mode rejection at VCM = 1500 V
Low propagation delay, TPLH / TPHL: 120ns / 150ns (max)
Minimized Pulse Width Distortion (PWD)
Compact, auto-insertable SSO8 package
Industrial temperature range: -40°C to 105°C
High speed: 10MBd typ
Hysteresis

Applications
IPM (Intelligent Power Module) interface isolation
Isolated IGBT/MOSFET gate drive
AC and brushless DC motor drives
Industrial inverters
General digital isolation

Specifications
Attribute Value
Maximum Forward Voltage 1.85 V
Maximum Input Current 20 mA
Isolation Voltage 5000 (Minimum)Vrms
Rise Time 6ns
Pin Count 8
Mounting Style Surface Mount
Minimum Operating Temperature -40°C
Maximum Operating Temperature +105°C
Length 9.6mm
Width 6.24mm
Depth 3.607mm
Dimensions 9.6 x 6.24 x 3.607 mm
Operating Temperature Range -40 → +105 °C
Input Type LED
Output Type Positive (Totem Pole)
