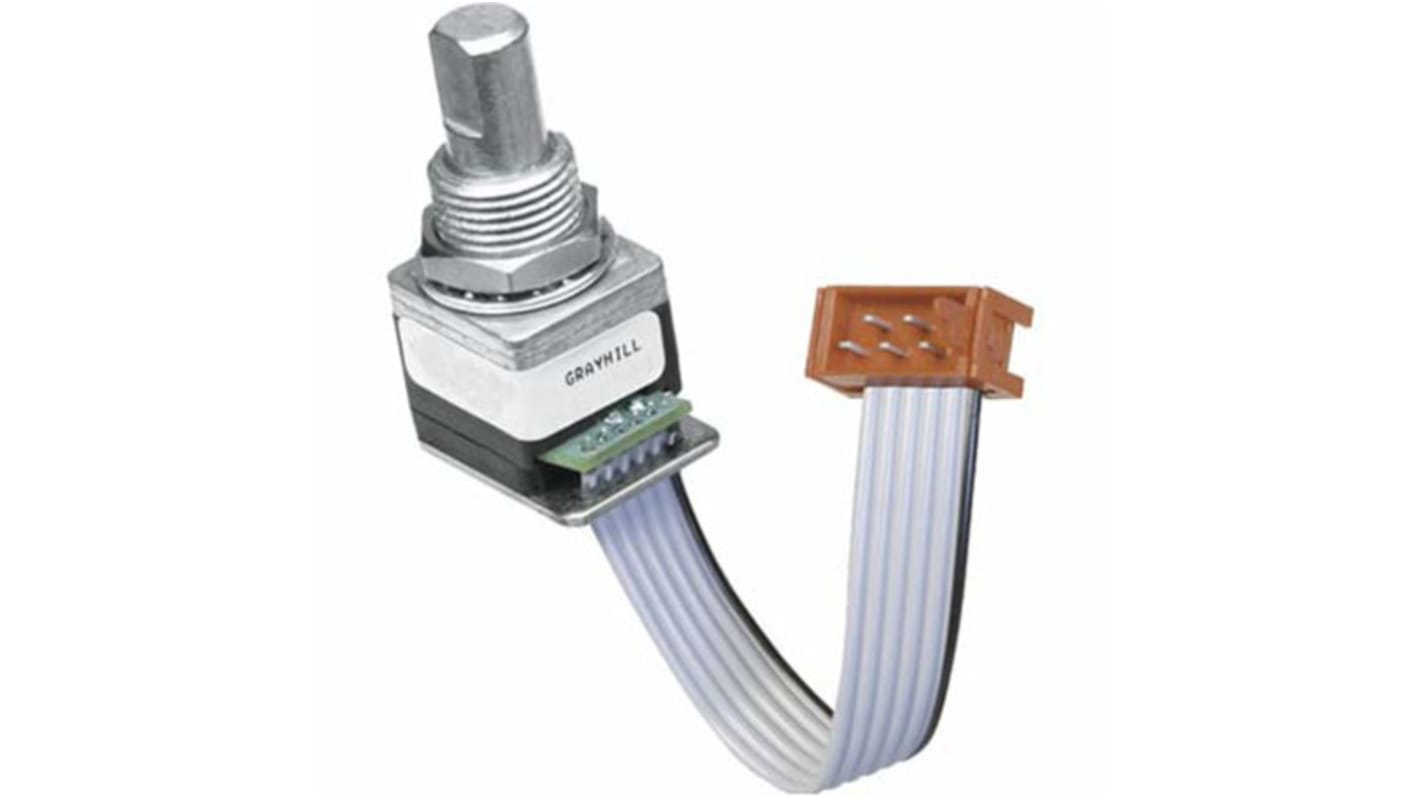

Grayhill 5V dc Optical Encoder with a 6.35 mm Flat Shaft, Surface Mount, Connector

  • RS Stock No. 878-0593
  • Mfr. Part No. 62A11-02-040CH
  • Brand Grayhill
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Grayhill 62A, V, D Series Optical Encoders

The 62A, V, D Series of optical encoders from Grayhill are low cost and economical in size. This range of encoders are suitable for use in applications such as global positioning systems, driver information systems and medical equipment.

Features:
3.3Vdc or 5Vdc Versions
Available with 12,16, 20, 24 and 32 Detent Positions
Optically Coupled for More than a Million Cycles
Optional Integral Pushbutton
Compatible with CMOS, TTL and HCMOS Logic Levels
Choice of Cable Lengths and Terminations

Note

Pushbutton Options: 01 = w/o Pushbutton, 02 = with Pushbutton
Series Style: A = 5.0 Vdc Input, D = High Torque w/5.0 Vdc Input, V = 3.3 Vdc Input

Specifications
Attribute Value
Encoder Reading Quadrature
Encoder Signal 2-Bit Quadrature
Supply Voltage 5V dc
Shaft Diameter 6.35 mm
Shaft Length 17.44mm
Mounting Type Surface Mount
Shaft Style Flat
Termination Style Connector
Maximum Operating Speed 100rpm
Current Rating 30mA
Available to back order for despatch 12/11/2020
Price Each
£ 37.24
(exc. VAT)
£ 44.69
(inc. VAT)
Units
Per unit
1 +
£37.24
