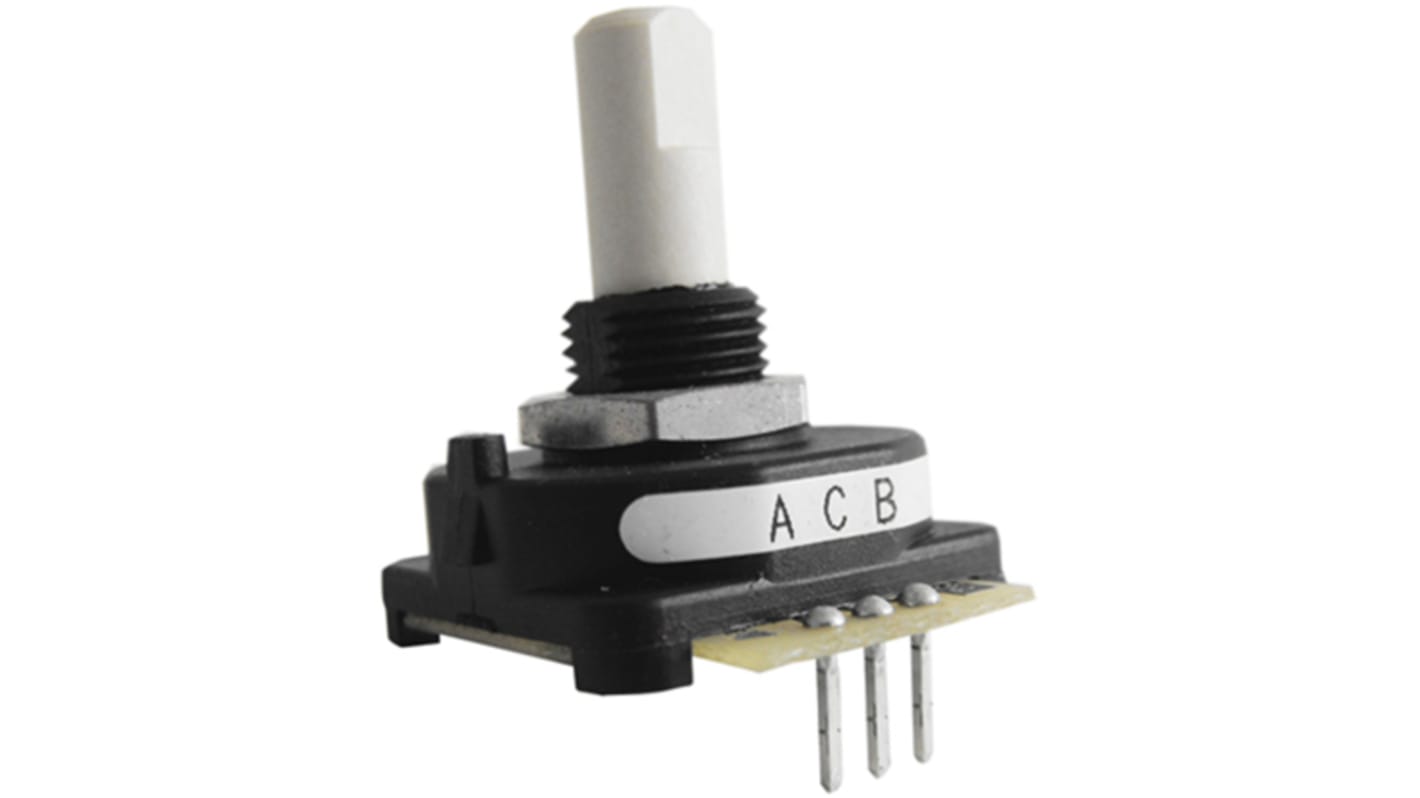

Grayhill Optical Encoder with a 6.35 mm Flat Shaft, Panel Mount

  • RS Stock No. 878-0527
  • Mfr. Part No. 25LB10-Q
  • Brand Grayhill
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): US
Specifications
Attribute Value
Encoder Reading 2 bit Quadrature
Encoder Signal Quadrature Code
Shaft Diameter 6.35 mm
Shaft Length 19.05mm
Mounting Type Panel Mount
Shaft Style Flat
Current Rating 1.5 mA @ 115 V ac, 150 mA @ 14 V dc, 250 mA @ 28 V dc
Available to back order for despatch 21/04/2020
Price Each
£ 5.06
(exc. VAT)
£ 6.07
(inc. VAT)
Units
Per unit
1 +
£5.06
