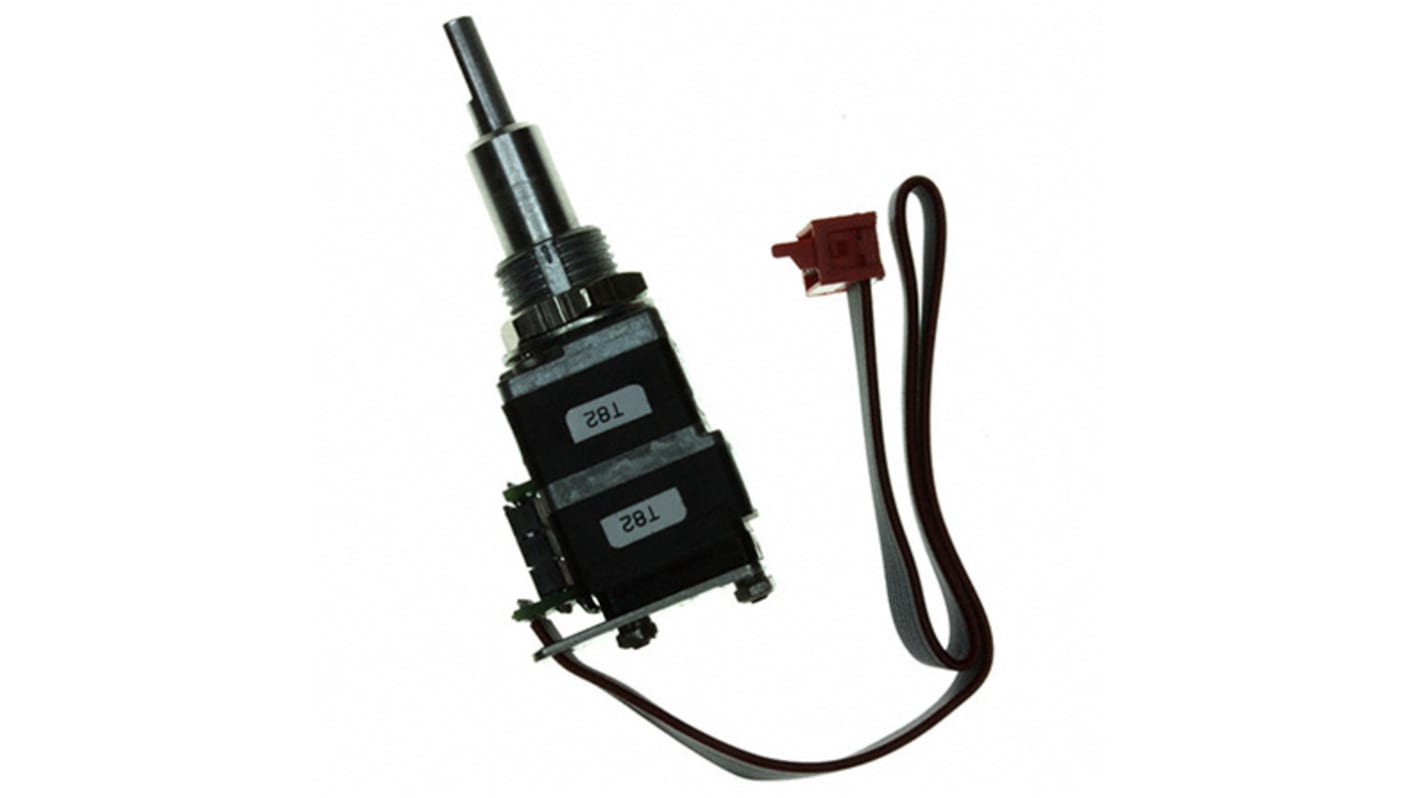

Grayhill 5V dc Optical Encoder with a 6.35 mm Flat Shaft, Panel Mount, Connector

  • RS Stock No. 878-0509
  • Mfr. Part No. 62C1111-02-060C
  • Brand Grayhill
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): US
Specifications
Attribute Value
Encoder Reading Quadrature
Encoder Signal 2-Bit Quadrature
Supply Voltage 5V dc
Shaft Diameter 6.35 mm
Shaft Length 26.98mm
Mounting Type Panel Mount
Shaft Style Flat
Termination Style Connector
Maximum Operating Speed 100rpm
Current Rating 50 mA @ 5 V dc
Available to back order for despatch 28/01/2020
Price Each
£ 65.02
(exc. VAT)
£ 78.02
(inc. VAT)
Units
Per unit
1 +
£65.02
