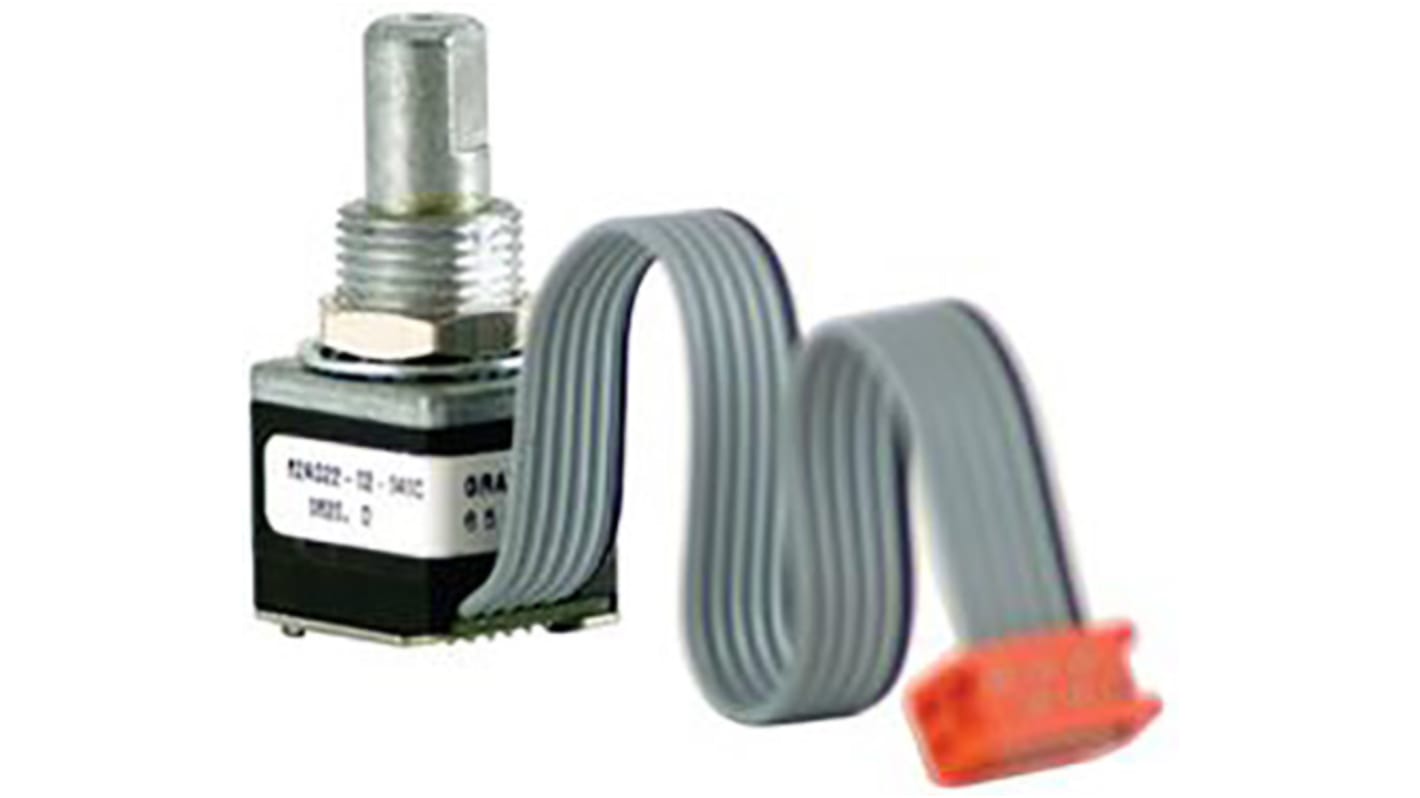

Grayhill 5V dc Optical Encoder with a 6.32 mm Flat Shaft, Panel Mount, Center Ribbon Cable with Connector

  • RS Stock No. 878-0423
  • Mfr. Part No. 62AG11-L5-060C
  • Brand Grayhill
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Grayhill 62AG Series Optical Encoders

The 62AG series of optical encoders are built for use in a range of applications. These include audio systems, navigation systems, patient monitoring systems,consumer electronics and professional editing equipment. Available with a choice of different cable lengths and termination types. The 62AG series of optical encoder feature Grayhill's patented light pipe technology.

Features:
Over 1 Million Rotational Cycles
2-bit Code Output
Quadrature Coding
16, 20, 24 and 32 Detent Positions Available
5Vdc or 3.3Vdc Versions Available

Specifications
Attribute Value
Encoder Reading Quadrature
Encoder Signal 2-Bit Gray Code
Supply Voltage 5V dc
Shaft Diameter 6.32 mm
Shaft Length 17.45mm
Mounting Type Panel Mount
Shaft Style Flat
Termination Style Center Ribbon Cable with Connector
Maximum Operating Speed 100rpm
Current Rating 30mA
Available to back order for despatch 12/05/2020
Price Each
£ 16.40
(exc. VAT)
£ 19.68
(inc. VAT)
Units
Per unit
1 +
£16.40
