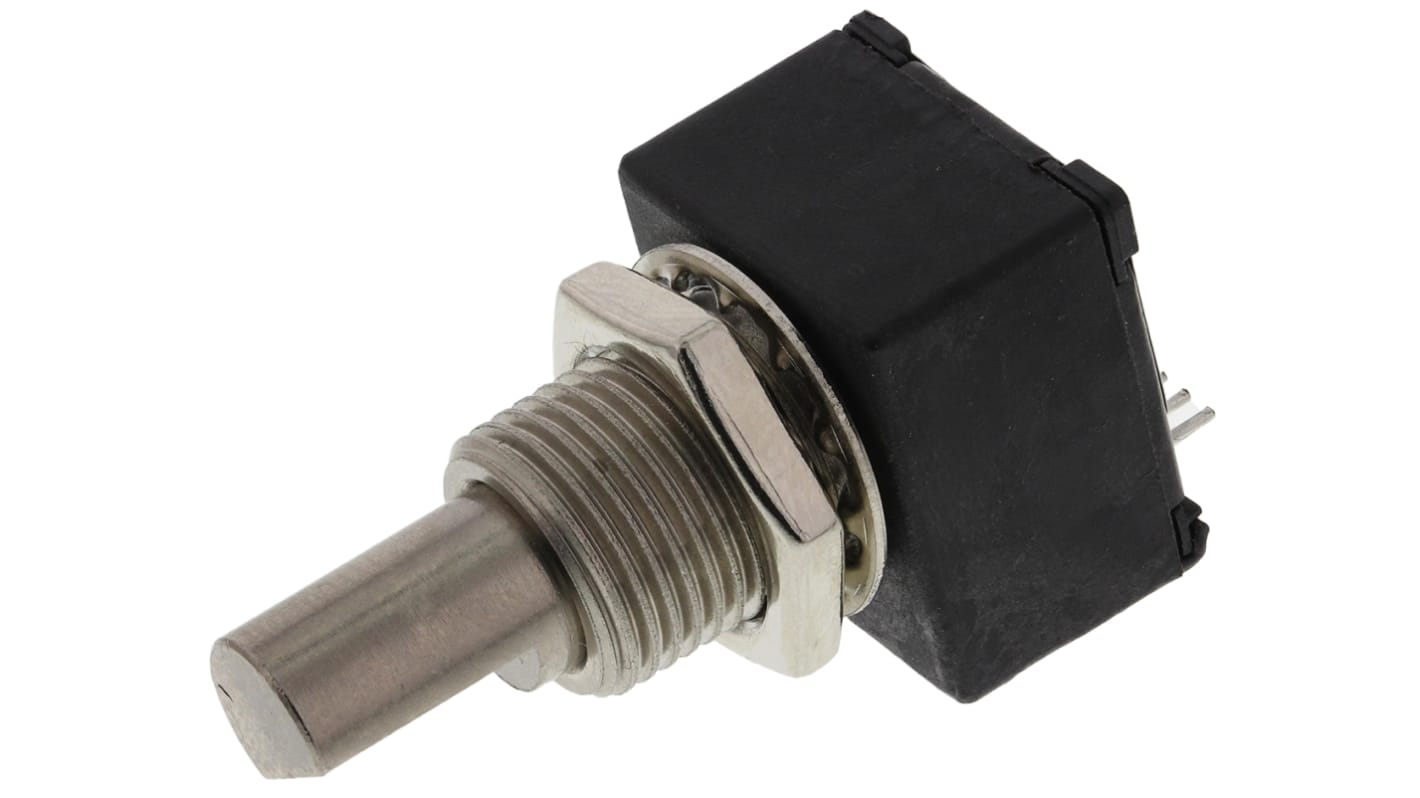

Bourns 5V dc 32 Pulse Optical Encoder with a 3.17 mm Flat Shaft, Through Hole, Axial PC Pin

  • RS Stock No. 162-2596
  • Mfr. Part No. EM14A1D-C24-L032N
  • Brand Bourns
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

EM14 Series 14 mm Rotary Optical Encoder w/Switch

EM14 series 14 mm rotary optical encoders with a compact package size, splashproof shaft seal, high rotational life cycle and HCMOS, CMOS and TTL compatability. These EM14 series rotary optical encoders are available with detent (stock number 789-9497) and standard push switch (stock numbers 691-7695, 691-7692, 691-7705, 691-7709, 691-7718, 827 4997 and 827-5007) and have different shaft styles (please refer to datasheet for details). Typical applications for these EM14 rotary optical encoders are human/machine interface (HMI) applications.

HCMOS, CMOS and TTL compatible
High rotational cycle life
Splashproof shaft seal
Recommended for human/machine interface applications (HMI)

Specifications
Attribute Value
Pulses Per Revolution 32
Encoder Reading Incremental
Encoder Signal 2 Channel Quadrature
Supply Voltage 5V dc
Shaft Diameter 3.17 mm
Shaft Length 19.05mm
Mounting Hole Diameter 1.73mm
Mounting Type Through Hole
Shaft Style Flat
Termination Style Axial PC Pin
Maximum Operating Speed 120rpm
