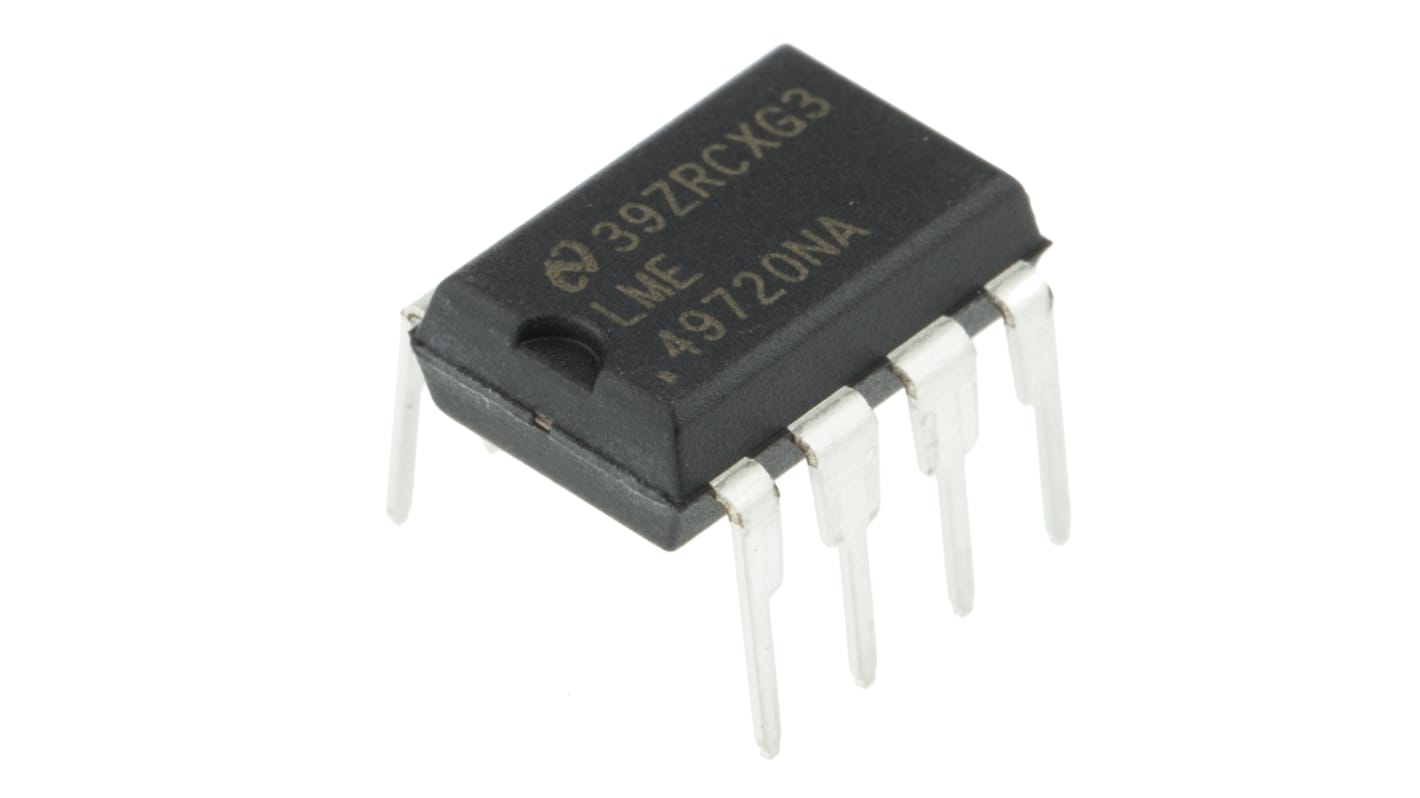

LME49720NA/NOPB Texas Instruments, Audio, Op Amp, 55MHz, 8-Pin PDIP
- RS Stock No.:
- 761-6217
- Mfr. Part No.:
- LME49720NA/NOPB
- Brand:
- Texas Instruments
Discontinued product
- RS Stock No.:
- 761-6217
- Mfr. Part No.:
- LME49720NA/NOPB
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
Product Details
Audio Op Amps, Texas Instruments
A range of operational amplifiers from Texas Instruments designed for high-fidelity audio applications. The devices typically feature low levels of distortion and noise together with high slew rates and wide bandwidth. They are frequently able to operate over a wide supply voltage range and include outputs capable of driving 600 Ω loads.
Specifications
Attribute | Value |
|---|---|
| Amplifier Type | Audio |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Dual |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Gain Bandwidth Product | 55MHz |
| Typical Dual Supply Voltage | ±2.5 → ±17V |
| Typical Slew Rate | ±20V/µs |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Rail to Rail | No |
| Typical Voltage Gain | 140 dB |
| Typical Input Voltage Noise Density | 2.7nV/√Hz |
| Length | 10.16mm |
| Height | 5.08mm |
| Dimensions | 10.16 x 6.35 x 5.08mm |
| Width | 6.35mm |
