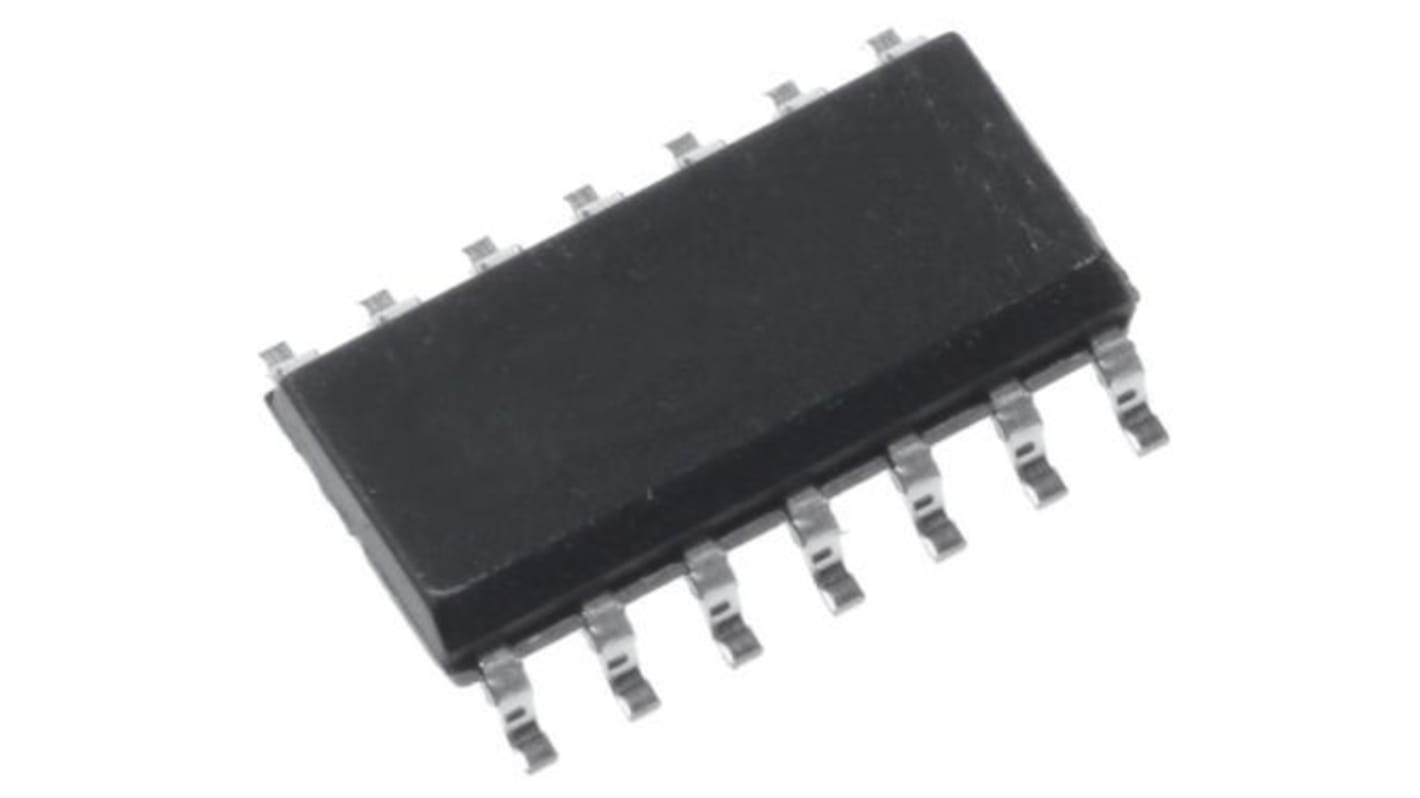

MAX4094ASD+ Maxim Integrated, Low Voltage, Op Amps, RRIO, 500kHz, 2.7 → 6 V, 14-Pin SOIC
- RS Stock No.:
- 191-5004
- Mfr. Part No.:
- MAX4094ASD+
- Brand:
- Maxim Integrated
50 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£4.126
(exc. VAT)
£4.951
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 5 | £4.126 | £20.63 |
| 10 - 20 | £3.71 | £18.55 |
| 25 - 95 | £3.502 | £17.51 |
| 100 - 245 | £3.004 | £15.02 |
| 250 + | £2.95 | £14.75 |
| *price indicative | ||
- RS Stock No.:
- 191-5004
- Mfr. Part No.:
- MAX4094ASD+
- Brand:
- Maxim Integrated
Technical Reference
Legislation and Compliance
Product Details
Low-Voltage, Single-Supply Operation (2.7V to 6V)
Beyond-the-Rails™ Inputs
No Phase Reversal for Overdriven Inputs
30μV Offset Voltage
Rail-to-Rail Output Swing with 1kΩ Load
Unity-Gain Stable with 2000pF Load
165μA (max) Quiescent Current Per Op Amp
500kHz Gain-Bandwidth Product
High Voltage Gain (115dB)
High Common-Mode Rejection Ratio (90dB) and Power-Supply Rejection Ratio (100dB)
Temperature Range (-40°C to +125°C)
Applications
Battery-Powered Instruments
Cellular Handsets
Data Acquisition and Control
Digital Cameras (DIGICAMs)
Glucose Meters
GPS Solutions
IP Camera
Low-Voltage Signal Conditioning
MP3 and Portable Media Players
Portable Equipment
Beyond-the-Rails™ Inputs
No Phase Reversal for Overdriven Inputs
30μV Offset Voltage
Rail-to-Rail Output Swing with 1kΩ Load
Unity-Gain Stable with 2000pF Load
165μA (max) Quiescent Current Per Op Amp
500kHz Gain-Bandwidth Product
High Voltage Gain (115dB)
High Common-Mode Rejection Ratio (90dB) and Power-Supply Rejection Ratio (100dB)
Temperature Range (-40°C to +125°C)
Applications
Battery-Powered Instruments
Cellular Handsets
Data Acquisition and Control
Digital Cameras (DIGICAMs)
Glucose Meters
GPS Solutions
IP Camera
Low-Voltage Signal Conditioning
MP3 and Portable Media Players
Portable Equipment
Specifications
Attribute | Value |
|---|---|
| Amplifier Type | Low Voltage |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Dual, Single |
| Number of Channels per Chip | 4 |
| Pin Count | 14 |
| Typical Single Supply Voltage | 2.7 → 6 V |
| Typical Gain Bandwidth Product | 500kHz |
| Output Type | Rail to Rail |
| Typical Dual Supply Voltage | ±1.35 to ±3V |
| Typical Slew Rate | 0.20V/µs |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Offset Voltage | ±3.5mV |
| Typical Voltage Gain | 115 dB |
| Maximum Input Voltage | 6 V |
| Rail to Rail | Rail to Rail Input/Output |
| Minimum Input Voltage | 2.7 V |
| Height | 1.5mm |
| Dimensions | 8.75 x 4 x 1.5mm |
| Typical Input Voltage Noise Density | 12nV/√Hz |
| Width | 4mm |
| Input Voltage Range | 2.7 → 6 V |
| Length | 8.75mm |
| Input Offset Current | 20nA |
