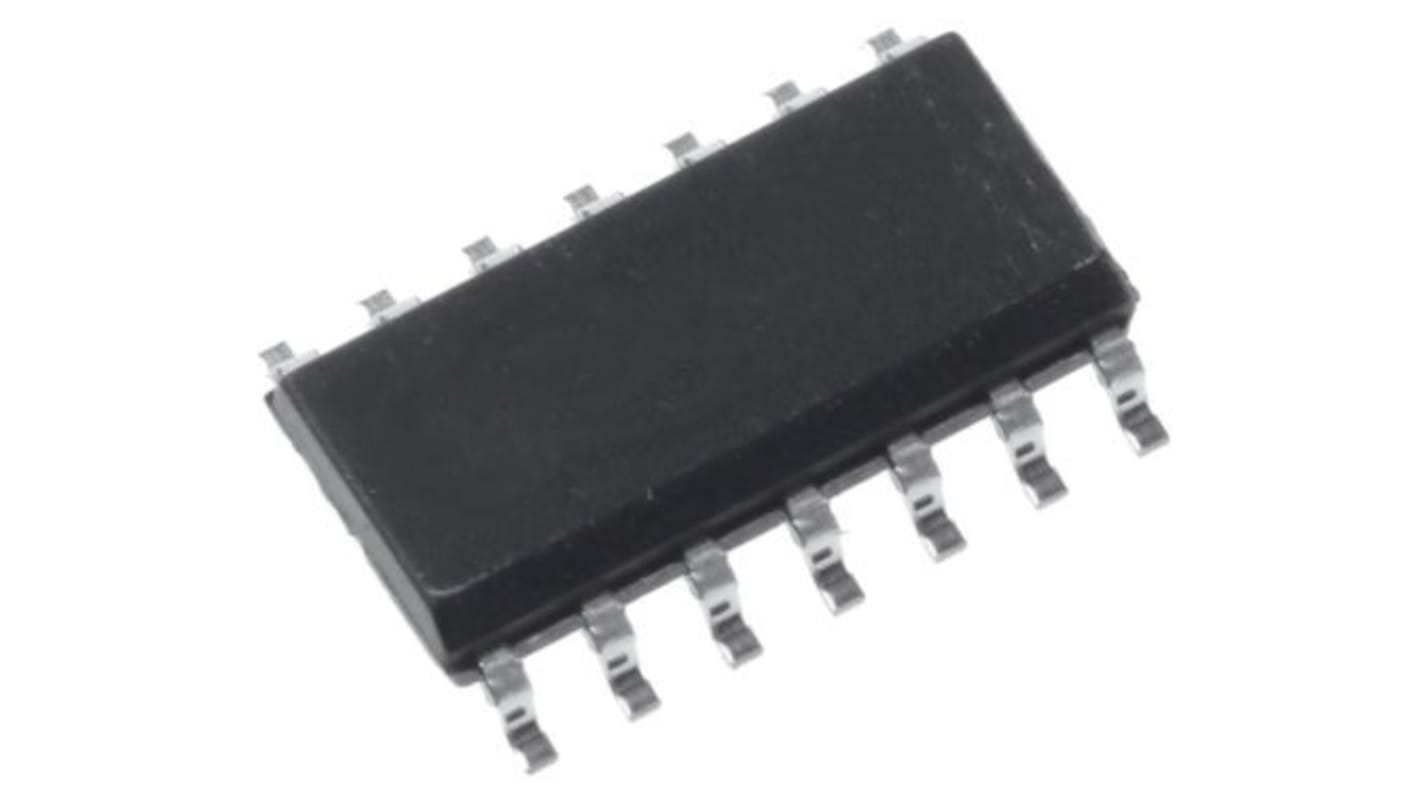

MAX4022ESD+ Maxim Integrated, High Speed, Op Amps, RRO, 200MHz, 3.15 → 11 V, 14-Pin SOIC
- RS Stock No.:
- 191-3953
- Mfr. Part No.:
- MAX4022ESD+
- Brand:
- Maxim Integrated
Discontinued product
- RS Stock No.:
- 191-3953
- Mfr. Part No.:
- MAX4022ESD+
- Brand:
- Maxim Integrated
Technical Reference
Legislation and Compliance
Product Details
Internal Precision Resistors for Closed-Loop Gains of +2 or -1
High Speed:
200MHz -3dB Bandwidth
30MHz 0.1dB Gain Flatness (6MHz min)
600V/μs Slew Rate
Single 3.3V/5.0V Operation
Outputs Swing Rail-to-Rail
Input Voltage Range Extends Beyond VEE
Low Differential Gain/Phase: 0.04%/0.02°
Low Distortion at 5MHz:
-78dBc Spurious-Free Dynamic Range
-75dB Total Harmonic Distortion
High Output Drive: ±120mA
Low, 5.5mA Supply Current
400μA Shutdown Supply Current
Space-Saving SOT23-5, μMAX®, or QSOP Packages
Applications
ADC Interface
Portable Battery-Powered Instruments
Video Line Driver
High Speed:
200MHz -3dB Bandwidth
30MHz 0.1dB Gain Flatness (6MHz min)
600V/μs Slew Rate
Single 3.3V/5.0V Operation
Outputs Swing Rail-to-Rail
Input Voltage Range Extends Beyond VEE
Low Differential Gain/Phase: 0.04%/0.02°
Low Distortion at 5MHz:
-78dBc Spurious-Free Dynamic Range
-75dB Total Harmonic Distortion
High Output Drive: ±120mA
Low, 5.5mA Supply Current
400μA Shutdown Supply Current
Space-Saving SOT23-5, μMAX®, or QSOP Packages
Applications
ADC Interface
Portable Battery-Powered Instruments
Video Line Driver
Specifications
Attribute | Value |
|---|---|
| Amplifier Type | High Speed |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Dual, Single |
| Number of Channels per Chip | 4 |
| Pin Count | 14 |
| Typical Single Supply Voltage | 3.15 → 11 V |
| Typical Gain Bandwidth Product | 200MHz |
| Output Type | Rail to Rail |
| Typical Dual Supply Voltage | ±1.57 to ±5.5V |
| Typical Slew Rate | 600V/µs |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Typical Voltage Gain | 2 V/V |
| Output Current | ±120 (Typ.) mA |
| Maximum Input Voltage | 11 V |
| Rail to Rail | Rail to Rail Output |
| Offset Voltage | 20mV |
| Width | 4mm |
| Height | 1.5mm |
| Dimensions | 8.75 x 4 x 1.5mm |
| Input Voltage Range | 3.15 → 11 V |
| Length | 8.75mm |
| Typical Input Voltage Noise Density | 10nV/√Hz |
| Minimum Input Voltage | 3.15 V |
