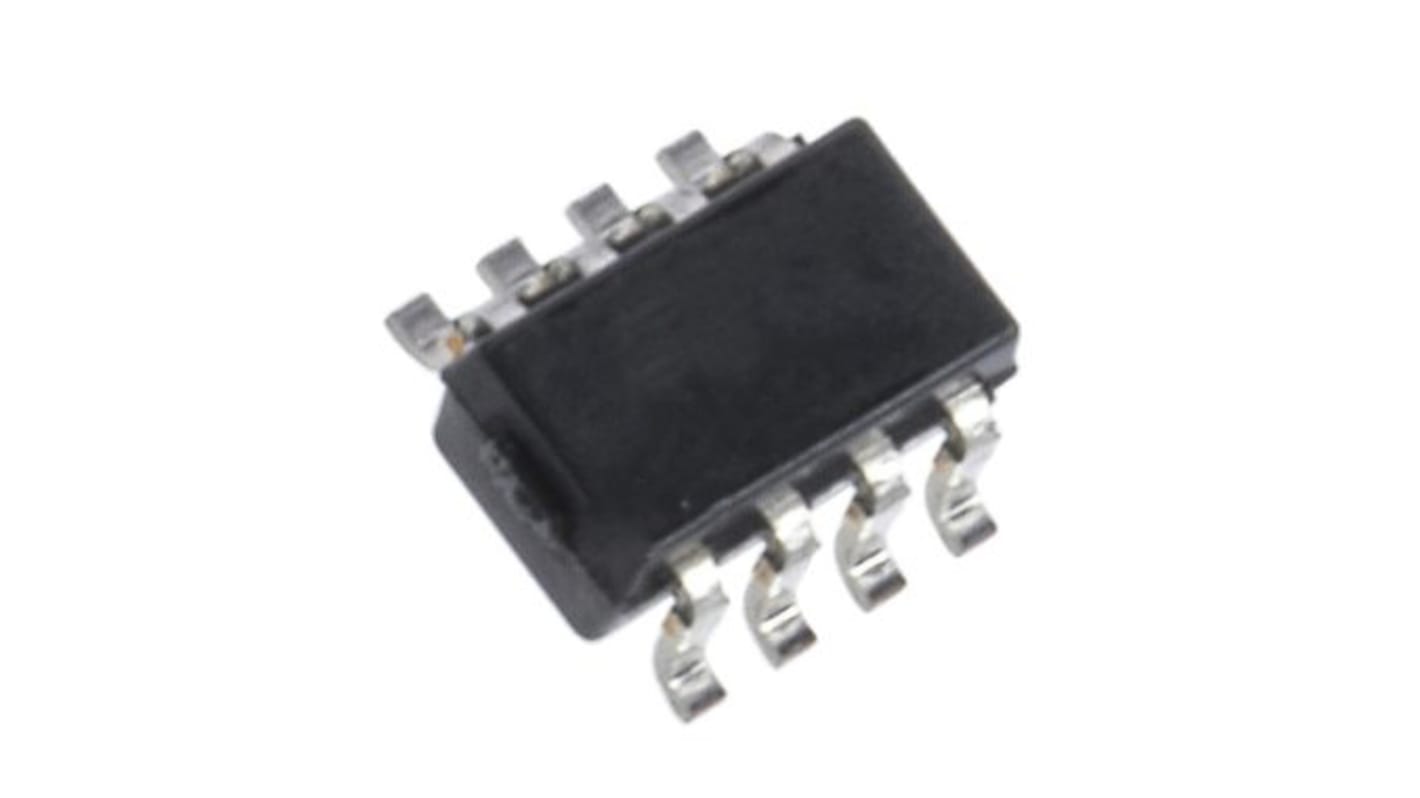

MAX4413EKA+T Maxim Integrated, Operational Amplifier, Op Amps, 500MHz 10 kHz, 2.7 → 5.5 V, 8-Pin SOT-23

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TH
Product Details

Ultra-Low 1.7mA Supply Current
Low Cost
Single +3V/+5V Operation
High Speed
500MHz -3dB Bandwidth
50MHz 0.1dB Gain Flatness
140V/μs Slew Rate
Rail-to-Rail Outputs
Input Common-Mode Range Extends Beyond VEE
Low Differential Gain/Phase: 0.01%/0.03°
Low Distortion at 5MHz
-93dBc SFDR
0.003% Total Harmonic Distortion
Ultra-Small SC70 and SOT23 Packages
Applications
Audio Systems
Baseband Applications
Battery-Powered Applications
Keyless Entry
Portable Communications
Video Line Driver

Specifications
Attribute Value
Amplifier Type Operational Amplifier
Mounting Type Surface Mount
Package Type SOT-23
Power Supply Type Single
Number of Channels per Chip 1
Pin Count 8
Typical Single Supply Voltage 2.7 → 5.5 V
Typical Gain Bandwidth Product 500MHz
Output Type Rail to Rail
Typical Slew Rate 140V/µs
Maximum Operating Frequency 10 kHz
Maximum Operating Temperature +85 °C
Minimum Operating Temperature -40 °C
Width 1.75mm
Maximum Input Voltage 5.5 V
Length 3mm
Typical Input Voltage Noise Density 13nV/√Hz
Offset Voltage 9mV
Output Current 75 (Typ.) mA
Dimensions 3 x 1.75 x 1.3mm
Typical Voltage Gain 93 dB
Input Voltage Range 2.7 → 5.5 V
Minimum Input Voltage 2.7 V
Height 1.3mm
