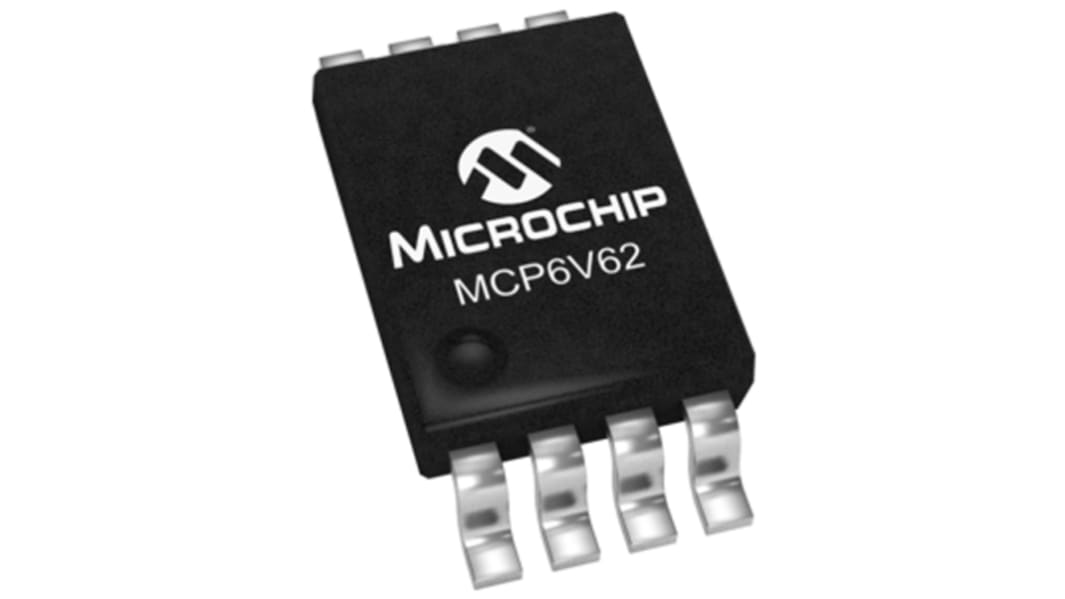

MCP6V62-E/MS Microchip, Op Amp, RRIO, 1MHz, 1.8 → 5.5 V, 8-Pin MSOP
- RS Stock No.:
- 165-4089
- Mfr. Part No.:
- MCP6V62-E/MS
- Brand:
- Microchip
Available to back order for despatch 29/05/2024
Added
Price Each (In a Tube of 100)
£1.31
(exc. VAT)
£1.57
(inc. VAT)
| Units | Per unit | Per Tube* |
| 100 - 100 | £1.31 | £131.00 |
| 200 - 400 | £1.276 | £127.60 |
| 500 - 900 | £1.243 | £124.30 |
| 1000 + | £1.212 | £121.20 |
| *price indicative | ||
- RS Stock No.:
- 165-4089
- Mfr. Part No.:
- MCP6V62-E/MS
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
MCP6V61/62/64 Operational Amplifiers
The Microchip MCP6V61/62/64 family are Operational Amplifiers that provide input offset voltage correction for low offset and offset drift.
Features
1 MHz Gain Bandwidth Product
Zero Drift architecture
Maximum Drift of 15 nV/°C
Maximum Input Offset 8 μV
Quiescent Current (IQ): 80 μA/amplifier (typical)
Power Supply Rejection Ratio (PSRR): 117 dB minimum @ VDD 5.5 V
Common-Mode Rejection Ratio (CMRR): 120 dB minimum @ VDD 5.5 V
No 1/f Noise
Enhanced EMI Rejection: 101 dB Electromagnetic Interference Rejection Ration (EMIRR) at 1.8 GHz
Unity Gain Stable
Zero Drift architecture
Maximum Drift of 15 nV/°C
Maximum Input Offset 8 μV
Quiescent Current (IQ): 80 μA/amplifier (typical)
Power Supply Rejection Ratio (PSRR): 117 dB minimum @ VDD 5.5 V
Common-Mode Rejection Ratio (CMRR): 120 dB minimum @ VDD 5.5 V
No 1/f Noise
Enhanced EMI Rejection: 101 dB Electromagnetic Interference Rejection Ration (EMIRR) at 1.8 GHz
Unity Gain Stable
Operational Amplifiers, Microchip
Specifications
Attribute | Value |
|---|---|
| Amplifier Type | Precision, Zero Drift |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 1.8 → 5.5 V |
| Typical Gain Bandwidth Product | 1MHz |
| Typical Slew Rate | 0.45V/µs |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Rail to Rail | Rail to Rail Input/Output |
| Offset Voltage | 8µV |
| Dimensions | 3 x 3 x 0.95mm |
| Input Offset Current | 200pA |
| Width | 3mm |
| Height | 0.95mm |
| Length | 3mm |
| Typical Input Voltage Noise Density | 26nV/√Hz |
