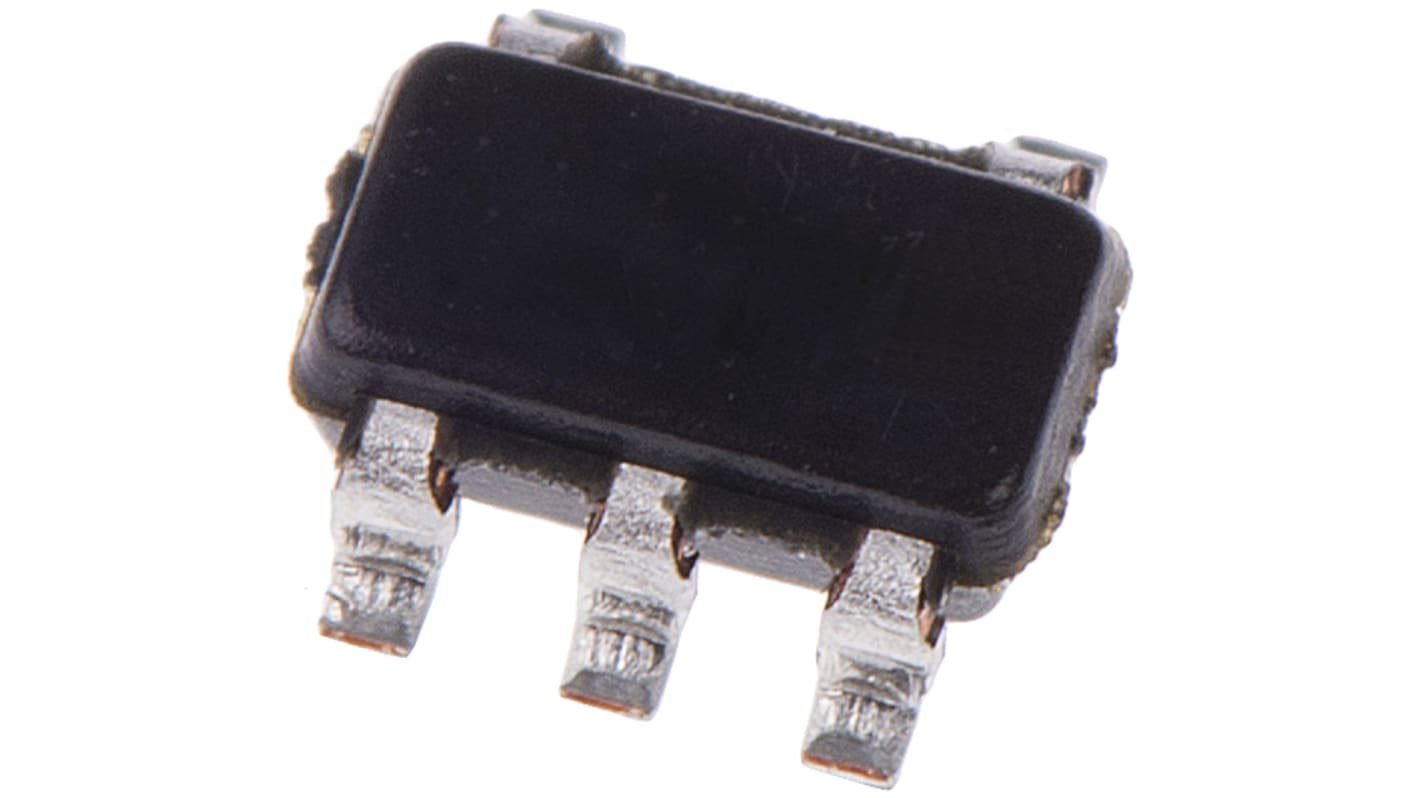

LMV321LILT STMicroelectronics, Low Power, Op Amp, RRO, 1.3MHz 10 kHz, 2.7 V, 5 V, 5-Pin SOT-23
- RS Stock No.:
- 145-8755
- Mfr. Part No.:
- LMV321LILT
- Brand:
- STMicroelectronics
Available to back order for despatch 25/04/2025
Added
Price Each (On a Reel of 3000)
£0.125
(exc. VAT)
£0.15
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 + | £0.125 | £375.00 |
| *price indicative | ||
- RS Stock No.:
- 145-8755
- Mfr. Part No.:
- LMV321LILT
- Brand:
- STMicroelectronics
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
LMV321L, LMV358L, Low Power Rail-to-Rail Output Operational Amplifiers
The LMV321L (single) and LMV358L (dual) are general purpose operational amplifiers with offer low voltage operation.
Low-power consumption: 250 μA max (at 5 V)
Rail-to-Rail Output
Low offset voltage: 7 mV max. (at 25°C)
Power Supply voltage: 2.7 V to 5.5 V
Gain bandwidth product: 1.3 MHz
Rail-to-Rail Output
Low offset voltage: 7 mV max. (at 25°C)
Power Supply voltage: 2.7 V to 5.5 V
Gain bandwidth product: 1.3 MHz
Specifications
Attribute | Value |
|---|---|
| Amplifier Type | Low Power |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 5 |
| Typical Single Supply Voltage | 2.7 V, 5 V |
| Typical Gain Bandwidth Product | 1.3MHz |
| Typical Slew Rate | 0.6V/µs |
| Maximum Operating Frequency | 10 kHz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Typical Voltage Gain | 100 dB |
| Maximum Input Voltage | 5.5 V |
| Offset Voltage | 7mV |
| Output Current | 70 mA |
| Rail to Rail | Rail to Rail Output |
| Length | 3mm |
| Typical Input Voltage Noise Density | 20nV/√Hz |
| Dimensions | 3 x 1.75 x 1.3mm |
| Minimum Input Voltage | 2.7 V |
| Input Offset Current | 30nA |
| Input Voltage Range | 2.7 → 5.5 V |
| Height | 1.3mm |
| Width | 1.75mm |
