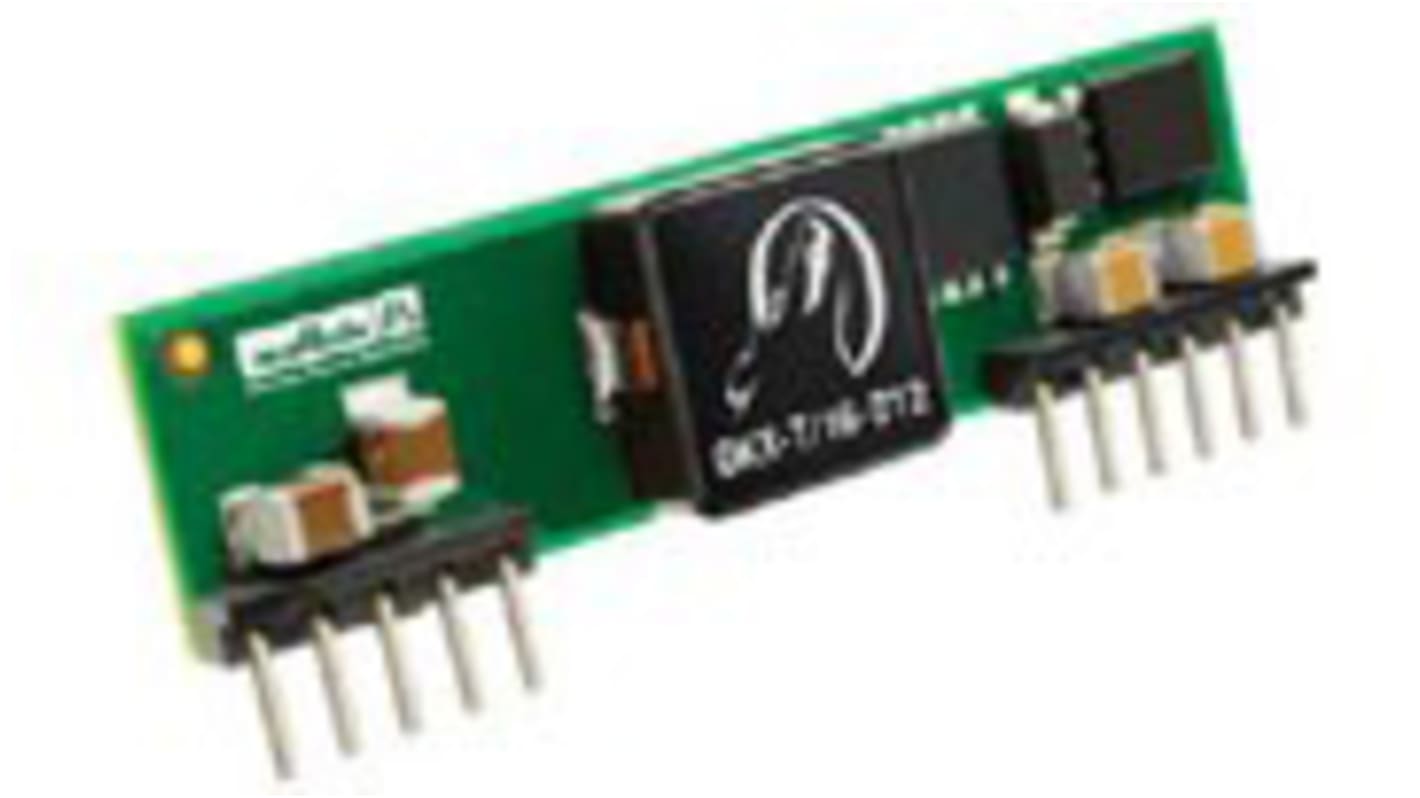

Non-Isolated DC-DC Converter, 3.63V dc Output, 16A

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

The OKX-T/16-W5 are non-isolated Point-of- Load (PoL) DC/DC power converters for embedded applications. The wide input range is 2.4 to 5.5 Volts DC. Power output is 53 watts. Output voltage range of 0.75 to 3.63V.

Non-isolated SIP POL DC/DC power module
2.4-5.5Vdc input voltage range
Programmable output voltage from 0.7525-3.63Vdc
10 Amp (T/10) or 16 Amp (T/16) output current
models
Drives 1000 μF ceramic capacitive loads
High power conversion efficiency 95% at 3.3 Vou
Outstanding thermal derating performance
Over temperature and over current protection
On/Off control, Sense and optional Sequence/
Tracking input

Specifications
Attribute Value
Input Voltage Range 2.4 → 5.5 V dc
Input Voltage Nominal 5 V dc
Output Voltage 3.63V dc
Output Current 16A
Power Rating 52.8W
Mounting Type Through Hole
Number of Outputs 1
Length 51.3mm
Width 9.7mm
Depth 12.7mm
Efficiency 95%
Minimum Temperature -40°C
Maximum Temperature +100°C
Regulator Type Switched Mode Power Supply
Ripple And Noise 30mV Pk-Pk
Weight 5.6g
Input Power Range 52.8W
Maximum Input Current 11.12A
Line Regulation ±0.3%
Allowed Circuit Configurations Parallel
Load Regulation ±0.5%
Series OKX T/16-W5
Power Signal Conversion Type DC-DC
2 In stock - FREE next working day delivery available
Price 1 Reel of 114
£ 840.81
(exc. VAT)
£ 1,008.97
(inc. VAT)
Reel(s)
Per Reel
Per unit*
1 +
£840.81
£7.376
*price indicative
