EX-BNS40S ATEX Magnetic Safety Switch, Stainless Steel, 24 V ac/dc

  • RS Stock No. 880-1814
  • Mfr. Part No. EX-BNS40S-12ZG-C
  • Brand Schmersal
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

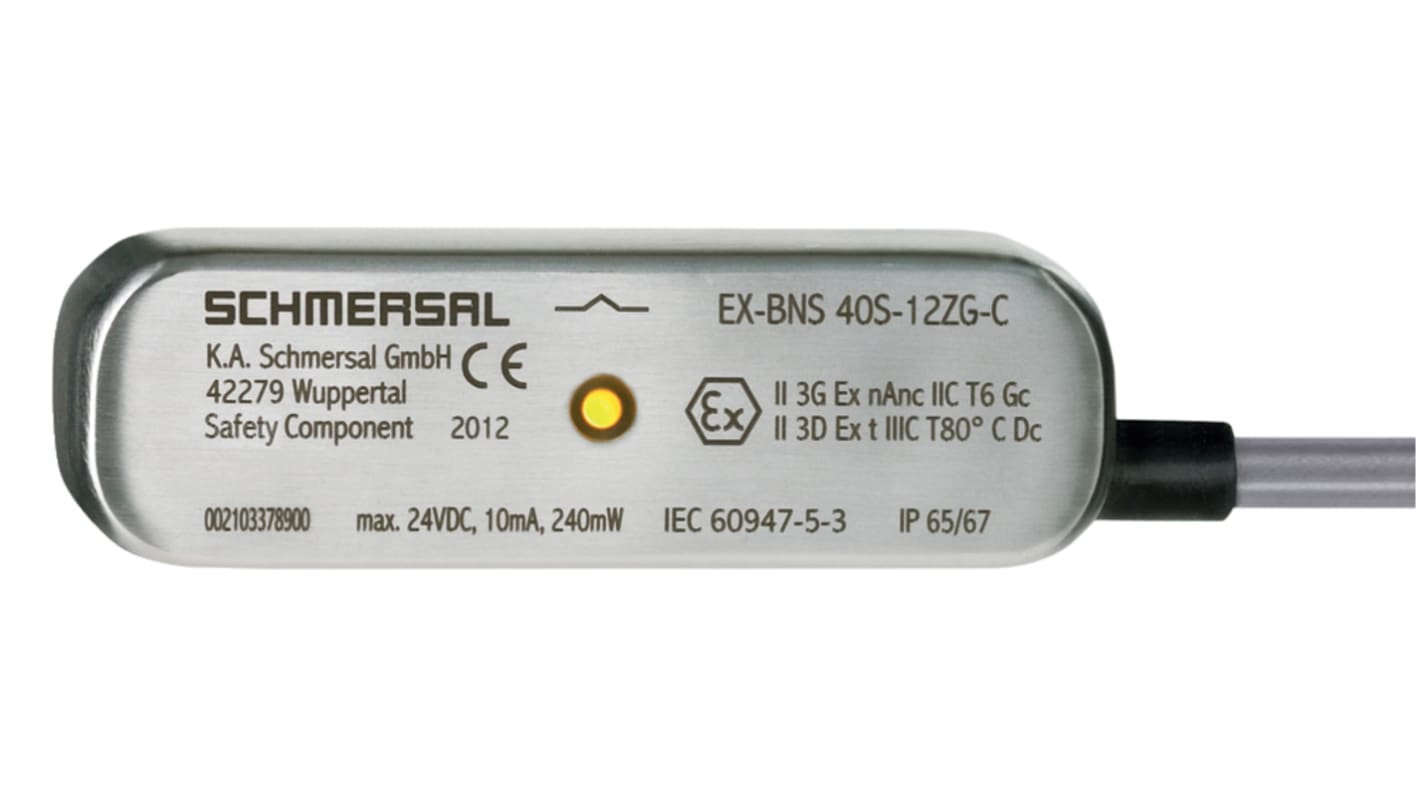

Schmersal EX-BNS40S Non Contact Safety Switch

The EX-BNS40S is a stainless steel non-contact safety switch designed for explosives atmospheres. It is hygiene-compliant and can easily be integrated into the surrounding construction due to its compact design. The stainless steel enclosure of the EX-BNS 40S is sealed to protection class IP65/IP67

Stainless steel enclosure
Cable connection suitable for the food industry
Concealed mounting possible
Dimensions: 88 x 27 x 14.5 mm
Long life
No mechanical wear
Insensitive to soiling
Insensitive to transverse misalignment
Especially easy to clean through concealed threaded holes at the rear
Suitable for food processing industry
IP65/IP67 to IEC/EN 60529
Ex certified, EX II 3D Ex tc IIIC T80°C Dc and EX II 3G Ex nA nC IIC T6 Gc

Note

Actuator must be ordered separately, stock no. 880-1810.
Stock no. 880-1814 comes with LED switching conditions display.

Standards

IEC 60947-5-3, BG-GS-ET-14, EN 60079-0, EN 60079-15, EN 60079-31.

Approvals

ATEX.

Specifications
Attribute Value
Supply Voltage 24 V ac/dc
Housing Material Stainless Steel
Connection Type 1m cable
Switch Type Rectangular
Terminal Type Cable
Series EX-BNS40S
Switching Distance 8 (On) mm, 18 (Off) mm
IP Rating IP65, IP67
Supply Current Maximum of 10 mA
Actuator Included No
Safety Category EX II 3D, EX II 3G
Actuator Type Coded
Width 14.5mm
Hazardous Area Certification ATEX
Sensor Principle Magnetic
Depth 27mm
Dimensions 88 x 14.5 x 27 mm
Length 88mm
Standards Met BG-GS-ET-14, CE Listed, EN 60079-0, EN 60079-15, EN 60079-31, EN ISO 13849-1, IEC 60947-5-3
Number of Approach Directions 1
1 In stock for FREE next working day delivery
Price Each
£ 183.07
(exc. VAT)
£ 219.68
(inc. VAT)
Units
Per unit
1 +
£183.07
