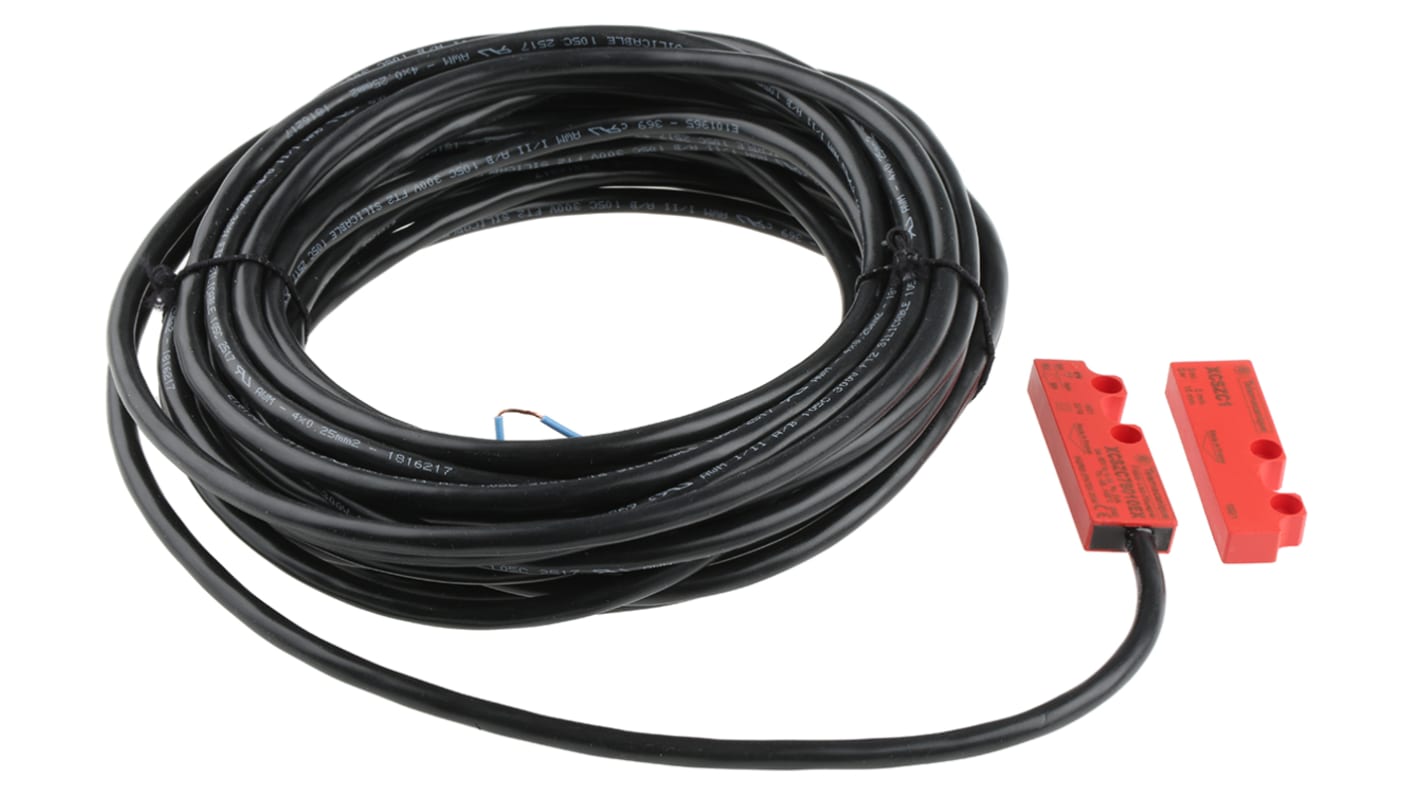

Preventa XCS-DMC ATEX Magnetic Safety Switch, Plastic, 24 V dc

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

XCS-DMC, Coded Hazardous Area

Ex coded magnetic safety switches can be used in potentially explosive DUSTY or GASEOUS environments for safety applications, for example on machines fitted with small guards or covers (with loose alignment), packaging machines, food and beverage processing (sugar refinery, malt house manufacturers, flour mills), petrochemical plants etc. They are approved for use in ATEX Zones 0-1-2 / 20-21-22, and can be used with XPS-DMB safety relays.

Protection modes mb, tD and ia
Suitable for Category 4/PLe circuits (EN ISO 13849-1)
Pre-cabled connection
Degree of protection: IP66 & IP67
Operating zone: Sao = 5 mm, Sar = 15 mm
Dimensions: 16 x 7 x 51mm

Specifications
Attribute Value
Supply Voltage 24 V dc
Safety Contacts NC
Housing Material Plastic
Auxiliary Contacts NO
Range Preventa
Series XCS-DMC
IP Rating IP66, IP67
Actuator Included Yes
Number of Approach Directions 3
Sensor Principle Magnetic
Hazardous Area Certification ATEX
Width 16mm
Dimensions 51 x 16 x 7 mm
Length 51mm
Safety Category 4
Actuator Type Coded
Depth 7mm
5 In stock for FREE next working day delivery
Price Each
£ 137.00
(exc. VAT)
£ 164.40
(inc. VAT)
Units
Per unit
1 +
£137.00
