AZM400Z RFID Solenoid Interlock Switches, Die Cast Alloy, 24 V dc

  • RS Stock No. 146-5802
  • Mfr. Part No. AZM400Z-ST-1P2P
  • Brand Schmersal
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

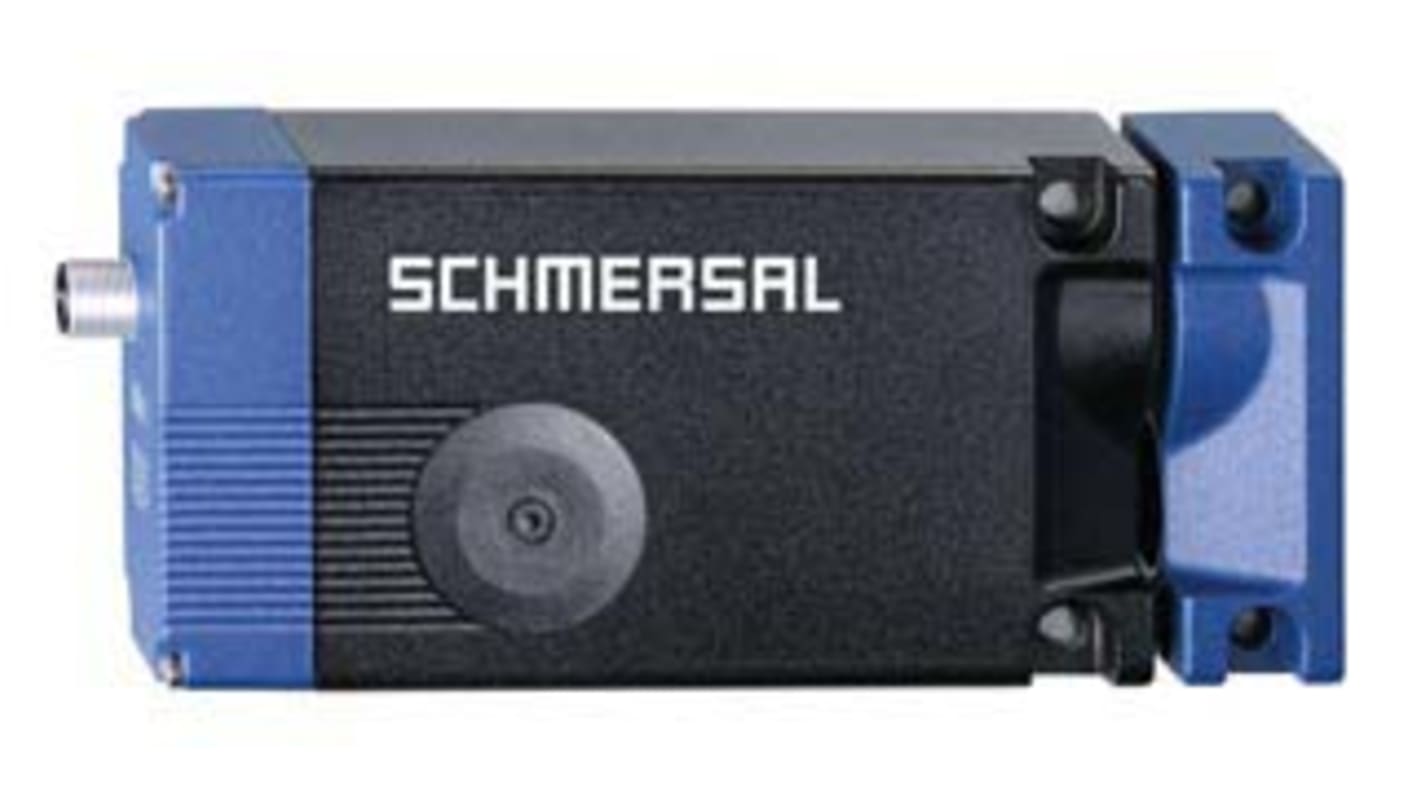

Schmersal Solenoid Interlock

The Schmersal AZM400Z series solenoid interlock has a switching distance of 30mm. It is an electronic safety sensor with unique diagnosis meets the highest safety requirements, even when series-wired. This solenoid also features universal coding functions for the uniform allocation of the actuator to the sensor and this is realised through integrated RFID technology.

Features and Benefits

Bi-stable
Motor-driven system
Clamping force is 10.000N
Release possible against lateral forces up to 300N
Two-channel input signal of the guard locking function
Operation on P/P- and P/N-switching outputs
High tolerance to door misalignment
Connector M12, 8-pole
Guard locking monitored
1 diagnostic output
Manual release

Certifications

CE certified
UL approved
EAC certified
TUV approved
ISO 13849-1
IEC 61508

Specifications
Attribute Value
Supply Voltage 24 V dc
Safety Contacts 2NO
Housing Material Die Cast Alloy
Connection Type M12
Switch Type Rectangular
Terminal Type 8-Pin M12 Connector
Series AZM400Z
Switching Distance 30 mm
IP Rating IP66, IP67
Supply Current 100 mA
Actuator Included No
Standards Met CE, CULus, EAC, TUV
Dimensions 166.7 x 77.8 x 46.7 mm
Housing Colour Black, Blue
Sensor Principle RFID
Width 77.8mm
Length 166.7mm
Depth 46.7mm
Safety Category Category 4
2 In stock - FREE next working day delivery available
Price Each
£ 496.23
(exc. VAT)
£ 595.48
(inc. VAT)
Units
Per unit
1 +
£496.23
