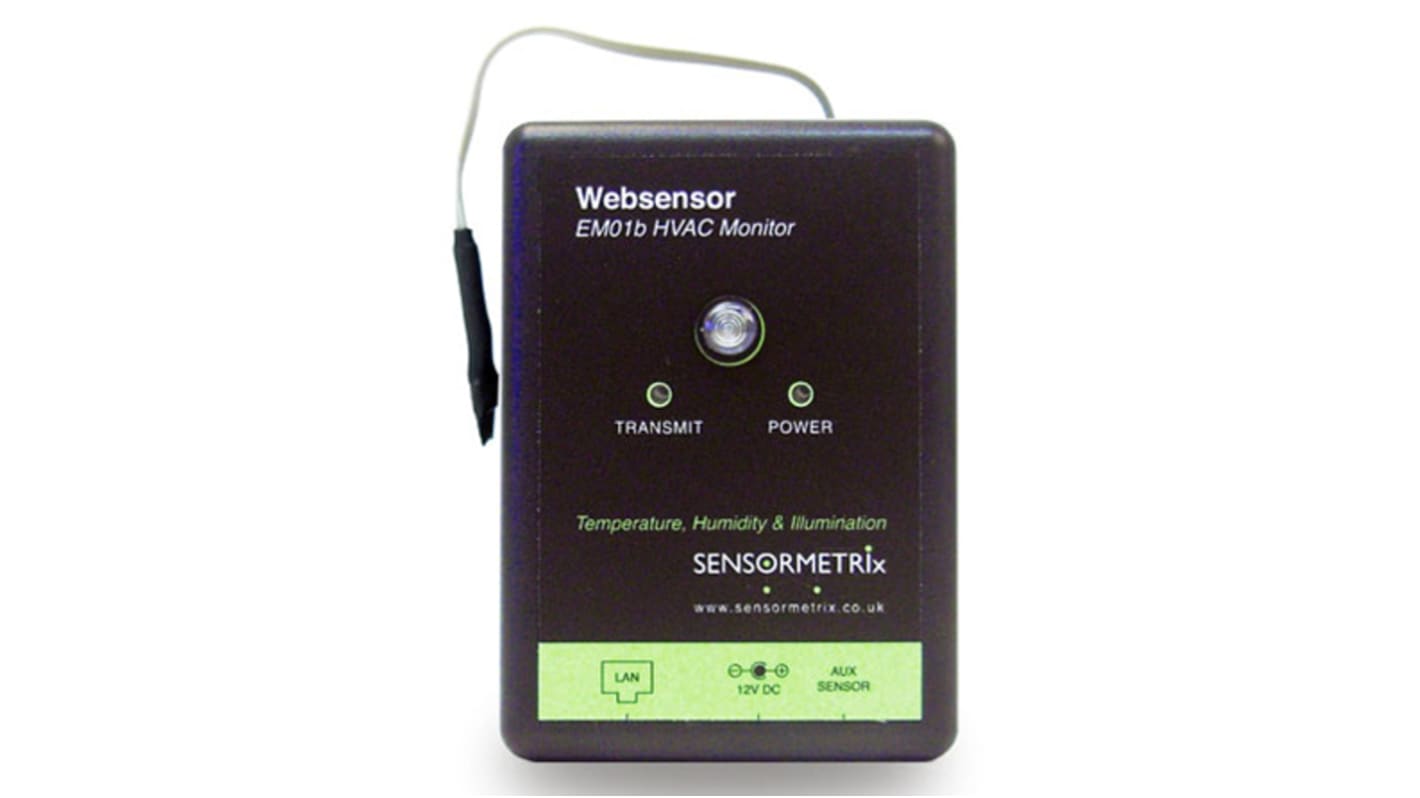

Sensormetrix EM01B STN Networking Module, 10/100 Ethernet, RS232, Serial

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

EM01b Temperature, Light & Humidity Remote Monitors

Sensormetrix' range of temperature, light & humidity monitors are perfect for remote monitoring within HVAC, warehouse and server room environments. With a LAN connection, the built-in web sensor can start to monitor and give out real time environment data. You can access this data at any time using the monitor's configurable web address. Custom alerts are possible via text or email using NAGIOS® software; https://www.nagios.org

The Sensormetrix EM01b- range of products comes with temperature, light and humidity monitoring. Each product features additional sensor/s as outlined below;

EM01b-STN (with door contact remote monitor) — 8968216
This monitor allows you to detect any open doors within the monitor environment as well as configure start-up and shut-down options for the monitor.

Contents:
•Crossover cable
•Cat 5 patch cable
•Door contact connector
•12 V power supply

EM01b-THM (with additional external temperature sensor) — 8968210
This monitor comes with an additional external temperature sensor.

Contents:
•Crossover cable
•Cat 5 patch cable
•12 V power supply

EM01b-VLT (with 0-18 volt meter) — 8968229
This monitor comes with a 0-18 volt meter to measure any external voltage.

Contents:
•Crossover cable
•Cat 5 patch cable
•Door contact connector
•12 V power supply

EM01b-LCD (with LCD display) — 8968222
This monitor comes with an LCD display that shows real time environmental data and connects to the EM01b monitor using an ES Bus cable.

•ES Bus cable
•LCD display (with self-adhesive velcro pad)
•Crossover cable
•Cat 5 patch cable
•Door contact connector
•12 V power supply

EM01b-FLD (with flood detection monitor) — 8968226
This monitor comes with a flood detection monitor and connects to your monitor using an ES Bus cable.

Contents:
•ES Bus cable
•Flood detection monitor
•Crossover cable
•Cat 5 patch cable
•Door contact connector
•12 V power supply

EM01b-PRO (with LCD display, flood detection monitor and ES Hub) — 8968235
This monitor comes both an LCD display and flood detection monitor that can be connected to the EM01b monitor using an ES Hub.

Contents:
•ES Bus cable
•LCD display (with self-adhesive velcro pad)
•Flood detection monitor
•Crossover cable
•Cat 5 patch cable
•Door contact connector
•12 V power supply

Sensormetrix Environmental monitoring device

The Sensormetrix Environmental monitoring device is designed for remotely monitoring temperature, light, and humidity in datacentres, server rooms and other spaces that rely upon a steady and predictable environment with access to the internet. The Web sensor series are sensors with built-in signal conditioning and a web address. Users can access the sensor directly via PC and remotely monitor the data that can be viewed at any time through a web-browser and receive alerts via text or email. It provides monitoring for temperature, illumination (light level), and relative humidity and is ideal for monitoring environmental conditions in server rooms and wiring closets. It is capable of measuring DC voltages that allow you to check battery supply voltages of UPS units or renewable energy sources. The new thermistor interface allows you to interface external special use sensors, such as liquid temperature measurement and the new contact closure detection allows you to detect door open conditions (for security purposes) or configure equipment start-up and shutdown conditions.

Features and Benefits

• Attaches to a standard 10/100Mbps Ethernet port
• Built-in sensors for temperature, RH, and illumination
• Embedded web server requires no extra software
• ESBus for optional external sensors (flood monitoring etc)
• Low cost
• Operating temperature ranges between -40 °C and 80 °C
• Programmable email/text alerts
• Uses Ethernet port communications via standard IT components
• Works out of the box

Applications

• 3rd party software (SNMP)
• Building management
• Data centres
• Nagios systems
• Server/commas room

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007

Sensormetrix Remote Monitoring

Sensormetrix range of remote monitoring products aim to give accessible, real-time environmental data. Each monitor includes temperature, light and humidity sensing as standard. Options such as LCD displays, volt meters, flood detection and contact monitoring are available seperately or as a 'bundled' option.

Specifications
Attribute Value
Included Features Attaches To A Standard 10/100 Mbps Ethernet Port, Low Cost, Works Out Of The Box
Supported Network Interfaces RS232, Serial, 10/100 Ethernet
Supported Bus Interfaces SPI
Supply Voltage 12V dc
Maximum Operating Temperature +80°C
Minimum Operating Temperature -40°C
10 In stock for FREE next working day delivery
Price Each
£ 189.09
(exc. VAT)
£ 226.91
(inc. VAT)
Units
Per unit
1 +
£189.09
