Edimax ES-3316P, Unmanaged 16 Port Ethernet Switch With PoE
- RS Stock No.:
- 136-3020
- Mfr. Part No.:
- ES-3316P
- Brand:
- Edimax
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 136-3020
- Mfr. Part No.:
- ES-3316P
- Brand:
- Edimax
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

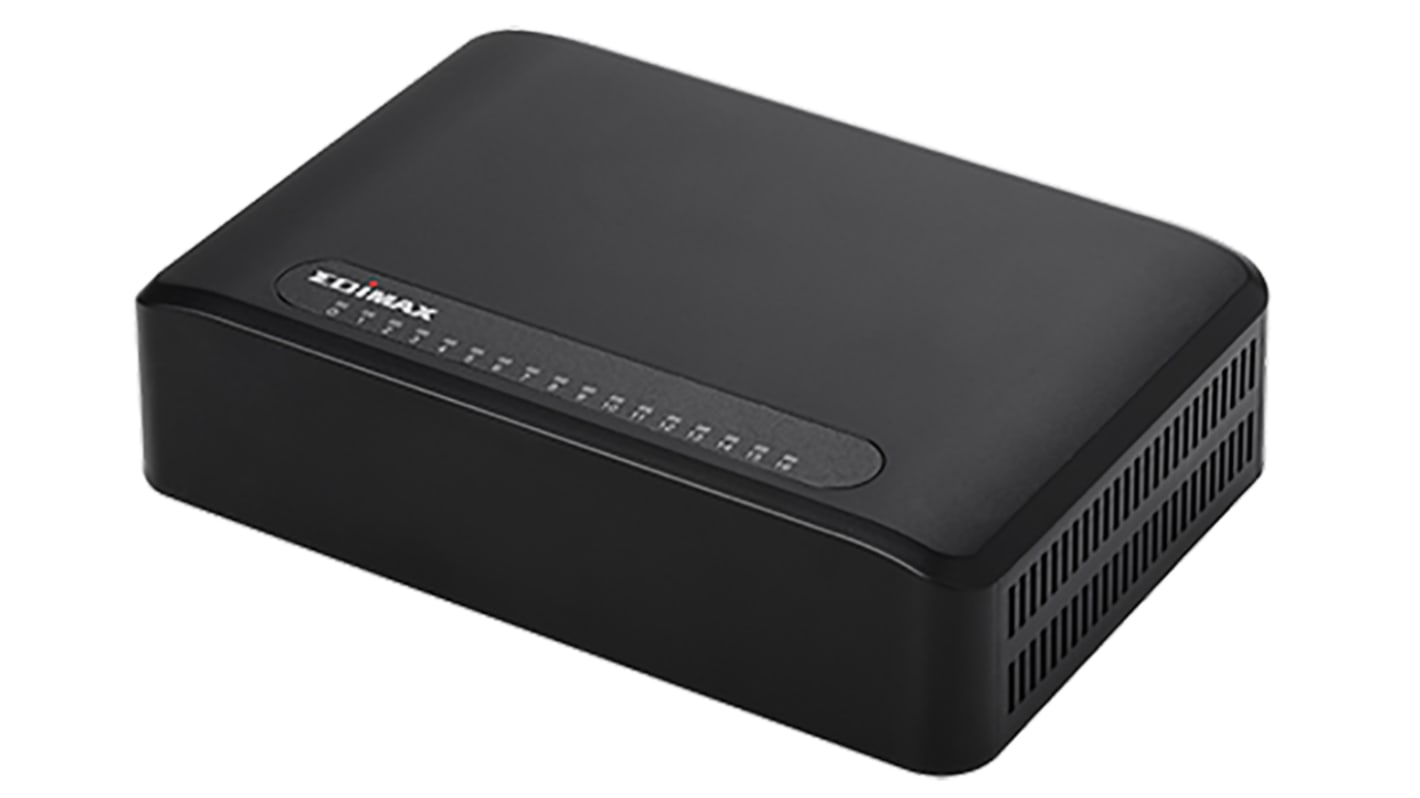

Edimax 16 Port Fast Ethernet Switch
The Edimax ES-3316P is an energy saving network switch with 16 integrated 10/100 Mbps Fast Ethernet ports. The power-saving function saves resources meaning the Edimax 16 Port Fast Ethernet Switch is an ideal solution for your home or small business
Complies with IEEE802.3, IEEE802.3u standards
Supports auto MDI/MDI-X crossover detecting and auto correction
Supports IEEE802.3X flow control for full duplex and back pressure flow control for half duplex
Wire speed packet filtering and forwarding rate
Store and forward architecture filters fragment and CRC error packets
Supports IEEE802.3az energy efficient Ethernet
RJ-45 Port
Dimensions:160´ 107´ 40mm (L x W x H)
Supports auto MDI/MDI-X crossover detecting and auto correction
Supports IEEE802.3X flow control for full duplex and back pressure flow control for half duplex
Wire speed packet filtering and forwarding rate
Store and forward architecture filters fragment and CRC error packets
Supports IEEE802.3az energy efficient Ethernet
RJ-45 Port
Dimensions:160´ 107´ 40mm (L x W x H)
Edimax Ethernet Switch
Specifications
Attribute | Value |
|---|---|
| Number of Ports | 16 |
| PoE - Power Over Ethernet | Yes |
| Switch Type | Unmanaged |
| RJ45 Ports | 16 |
| Height | 40mm |
| Network Speed | 10/100Mbit/s |
| Model | ES-3316P |
| Depth | 160mm |
| Dimensions | 160 x 107 x 40mm |
| Width | 107mm |
