Product Details

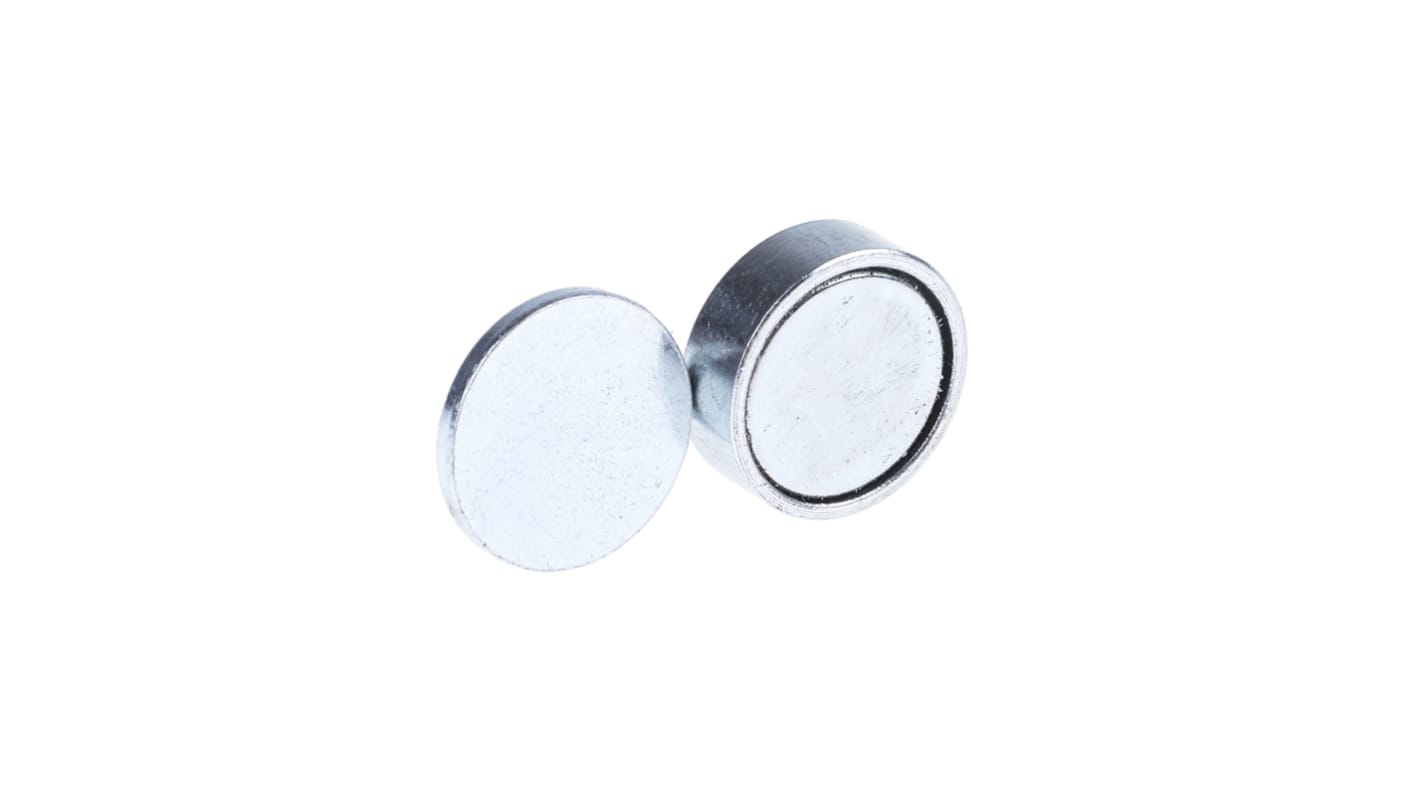

Eclipse Neodymium Shallow Pot Magnet
The Eclipse neodymium shallow pot magnet is a single bi-pole assembly made of iron boron. It consists of a ferromagnetic mild steel cup containing a magnet, which is blind-ended. It can be used at temperature up to 80°C. This magnet and the mild steel pot form an intricate magnetic circuit to give a bi-pole arrangement on the contact face with 6kg pull force. The bi-pole effect gives a strong shallow field suitable for fixing, lifting and any form of closure applications.
Features and Benefits
Total height of 4.5mm and diameter of 13mm
Assembled in a mild steel zinc coated shallow pot
Made from rare earth material giving high strength flux fields
Maximising contact area with high strength
Strongest magnetic performance
Weight is 0.0045kg
Assembled in a mild steel zinc coated shallow pot
Made from rare earth material giving high strength flux fields
Maximising contact area with high strength
Strongest magnetic performance
Weight is 0.0045kg
Specifications
Attribute | Value |
---|---|
Magnet Type | Pot |
Width/Diameter | 13mm |
Pull Force | 6kg |
Thickness | 4.5mm |
Attachment Type | None |
Length | 4.5mm |
