- RS Stock No.:
- 248-7388
- Mfr. Part No.:
- ENB2449A1-10MH4L
- Brand:
- Ezurio
112 In stock - FREE next working day delivery available
Added
Price Each
£2.61
(exc. VAT)
£3.13
(inc. VAT)
Units | Per unit |
1 - 9 | £2.61 |
10 - 99 | £2.54 |
100 - 249 | £2.47 |
250 - 499 | £2.41 |
500 + | £2.35 |
- RS Stock No.:
- 248-7388
- Mfr. Part No.:
- ENB2449A1-10MH4L
- Brand:
- Ezurio
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

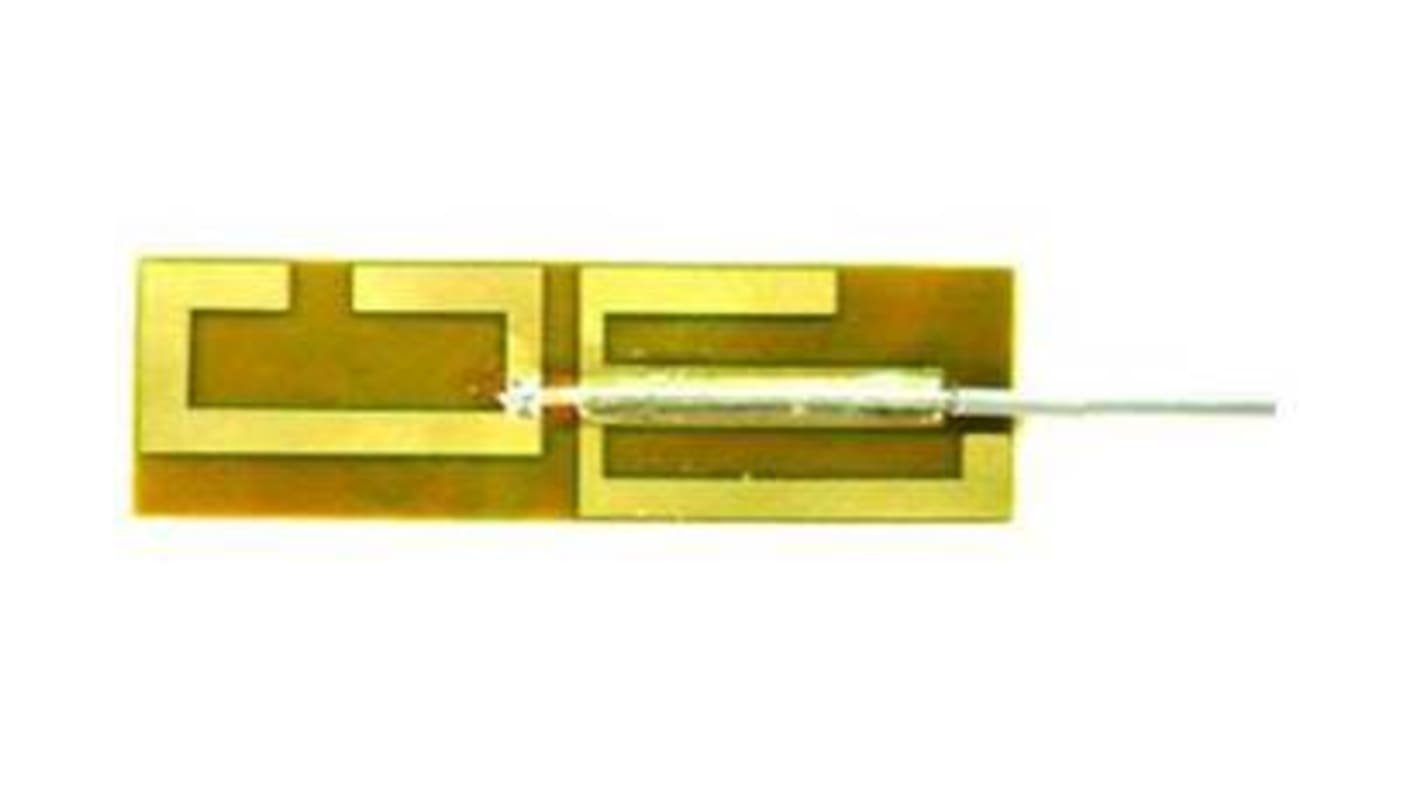

The Laird Connectivity Nanoblade internal wireless device antennas feature wide bandwidth to enhance the performance and application of portable wireless devices based on standards such as 802.11 and Bluetooth®. The antennas are specifically designed to be embedded inside devices for aesthetically-pleasing integration with high durability.
Covers 2.4 to 2.5 GHz and 4.9 to 6 GHz for all WLAN applications
Coaxial cable pigtail with various connector choices
Omnidirectional patterns and all frequencies with increased gain in upper bands for optimal coverage
Conformance to European RoHS Directive
Coaxial cable pigtail with various connector choices
Omnidirectional patterns and all frequencies with increased gain in upper bands for optimal coverage
Conformance to European RoHS Directive
Specifications
Attribute | Value |
---|---|
RF Protocols | WiFi |
Frequency Range | 2.4 - 6 GHz |
Connector Type | IPEX |
Antenna Physical Form | Blade |
Internal/External | Internal |
Gain | 3.19 dBi, 4.1 dBi, 4.35 dBi |
Antenna Mounting Type | Adhesive |
Lead Length | 100mm |
Antenna Directivity | Omnidirectional |
Includes Lead | Yes |
Connector Gender | Female |
Physical Form | PCB |
