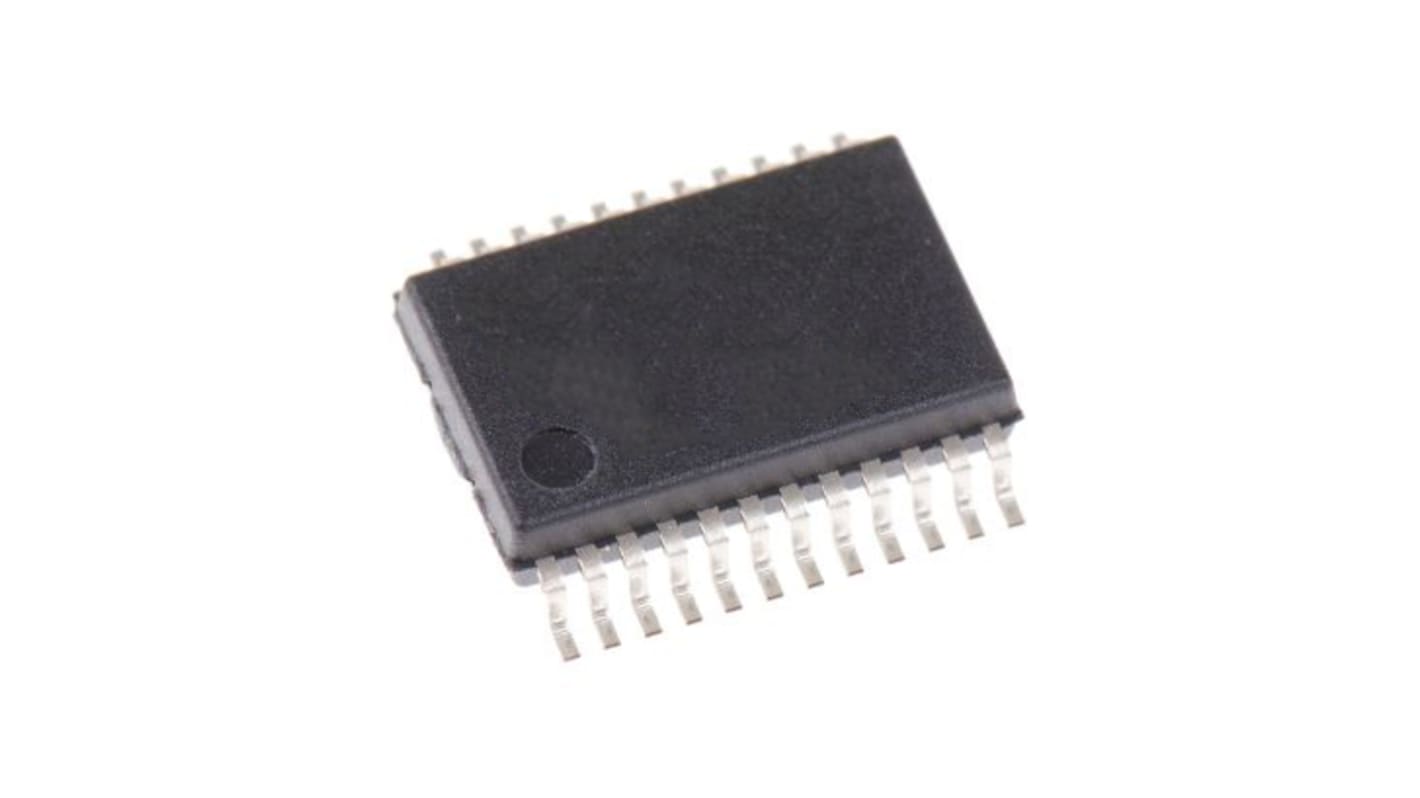

onsemi NCV7720DQAR2G, DC Motor Driver IC 24-Pin, SSOP
- RS Stock No.:
- 189-0246
- Mfr. Part No.:
- NCV7720DQAR2G
- Brand:
- onsemi
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each (On a Reel of 2500)
£1.83
(exc. VAT)
£2.20
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2500 + | £1.83 | £4,575.00 |
| *price indicative | ||
- RS Stock No.:
- 189-0246
- Mfr. Part No.:
- NCV7720DQAR2G
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
Product Details
The NCV7720 Deca is a ten channel half-bridge driver with protection features designed specifically for automotive and industrial motion control applications. The product has independent controls and diagnostics, and the drivers can be operated in forward, reverse, brake, and high impedance states. The device is controlled via a 16 bit SPI interface and is daisy chain compatible.
Low Quiescent Current Sleep Mode
High Side and Low Side Drivers Connected in a Half Bridge Configuration
Integrated Freewheeling Protection (LS and HS)
0.55 A Peak Current
RDS(on) = 1 ohm (typ)
5 MHz SPI Control
Compliance with 5 V and 3. 3 V Systems
Undervoltage and Overvoltage Lockout
Overcurrent Protection, Overtemperature Protection
Under Load Detection
Discriminated Fault Reporting
16Bit Frame Detection
Daisy Chain Compatible with Multiple of 8 bit Devices
Applications
Automotive
Industrial
DC Motor Management for HVAC Application
High Side and Low Side Drivers Connected in a Half Bridge Configuration
Integrated Freewheeling Protection (LS and HS)
0.55 A Peak Current
RDS(on) = 1 ohm (typ)
5 MHz SPI Control
Compliance with 5 V and 3. 3 V Systems
Undervoltage and Overvoltage Lockout
Overcurrent Protection, Overtemperature Protection
Under Load Detection
Discriminated Fault Reporting
16Bit Frame Detection
Daisy Chain Compatible with Multiple of 8 bit Devices
Applications
Automotive
Industrial
DC Motor Management for HVAC Application
Specifications
Attribute | Value |
|---|---|
| Motor Type | DC |
| Output Configuration | Half Bridge |
| Maximum Output Current | 550mA |
| Maximum Supply Voltage | 5.25 V |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Pin Count | 24 |
| Maximum Operating Supply Voltage | 5.25 V |
| Minimum Operating Supply Voltage | 3.15 V |
| Typical Switching Frequency | 5 (Maximum)MHz |
| Product Width | 3.9mm |
| Product Length | 8.64mm |
| Length | 8.64mm |
| Automotive Standard | AEC-Q100 |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 8.64 x 3.9 x 1.65mm |
| Minimum Operating Temperature | -40 °C |
| Width | 3.9mm |
| Height | 1.65mm |
| Product Height | 1.65mm |
