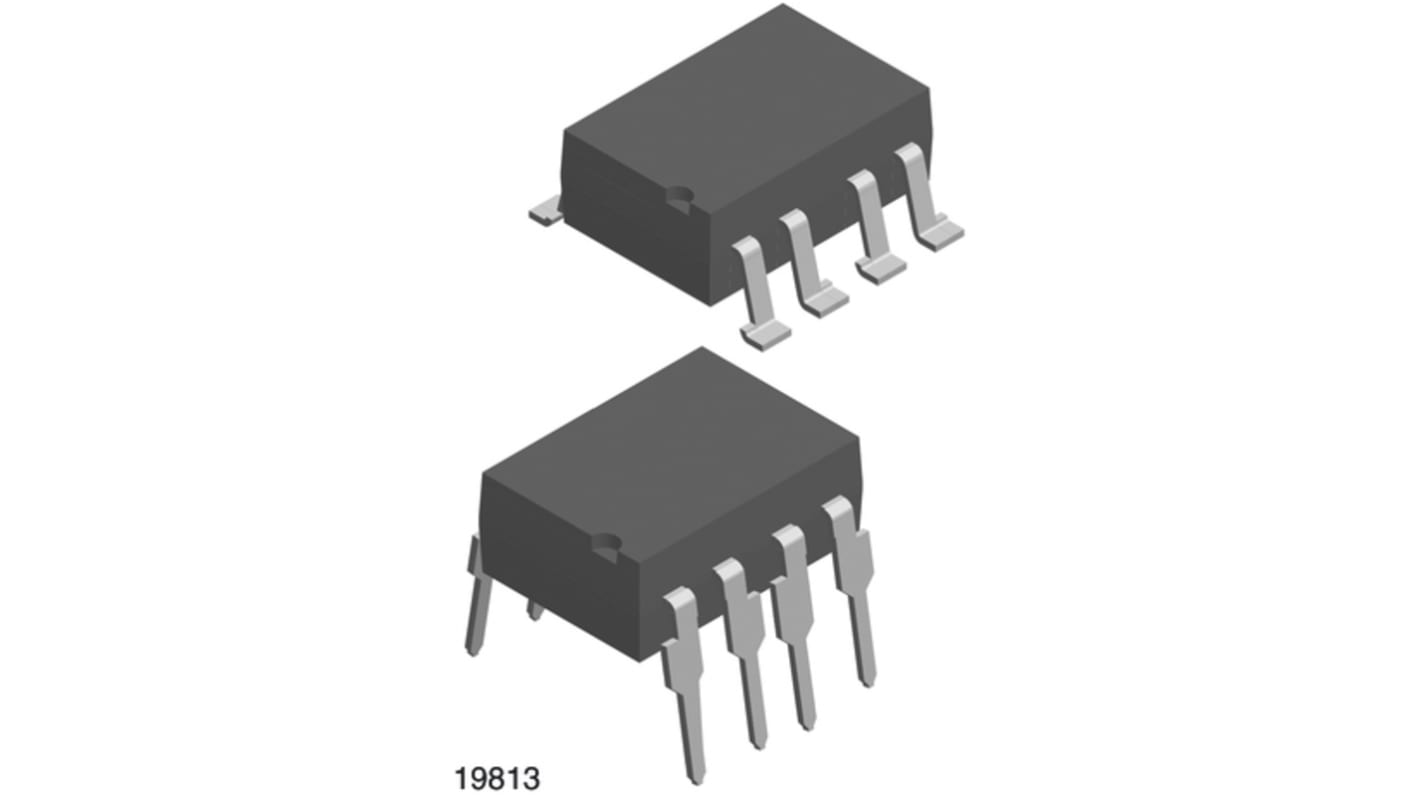

Vishay VO3120 Motor Driver IC 8-Pin, DIP
- RS Stock No.:
- 180-7058
- Mfr. Part No.:
- VO3120
- Brand:
- Vishay
350 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 50)
£1.306
(exc. VAT)
£1.567
(inc. VAT)
| Units | Per unit | Per Tube* |
| 50 - 50 | £1.306 | £65.30 |
| 100 - 200 | £1.241 | £62.05 |
| 250 + | £1.175 | £58.75 |
| *price indicative | ||
- RS Stock No.:
- 180-7058
- Mfr. Part No.:
- VO3120
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
The VO3120 consists of a LED optically coupled to an integrated circuit with a power output stage. This optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides he drive voltages required by gate controlled devices. The voltage and current supplied by this optocoupler makes it ideally suited for directly driving IGBTs with ratings up to 800 V/50 A. For IGBTs with higher ratings, the VO3120 can be used to drive a discrete power stage which drives the GBT gate.
2.5 A minimum peak output current
25 kV/μs minimum common mode rejection (CMR) at VCM = 1500 V
ICC = 2.5 mA maximum supply current
APPLICATIONS:
Isolated IGBT/MOSFET gate driver
AC and brushless DC motor drives
Induction stove top
25 kV/μs minimum common mode rejection (CMR) at VCM = 1500 V
ICC = 2.5 mA maximum supply current
APPLICATIONS:
Isolated IGBT/MOSFET gate driver
AC and brushless DC motor drives
Induction stove top
Specifications
Attribute | Value |
|---|---|
| Configuration | Dual |
| Maximum Output Current | 2.5A |
| Maximum Supply Voltage | 32 V |
| Mounting Type | Through Hole |
| Package Type | DIP |
| Pin Count | 8 |
| Maximum Operating Supply Voltage | 32 V |
| Minimum Operating Supply Voltage | 15 V |
| Typical Switching Frequency | 1MHz |
| Maximum Isolation Rating | 5300Vrms |
| Length | 9.77mm |
| Maximum Operating Temperature | +110 °C |
| Product Width | 6.64mm |
| Dimensions | 9.77 x 6.64 x 3.55mm |
| Minimum Operating Temperature | -40 °C |
| Product Height | 3.55mm |
| Width | 6.64mm |
| Height | 3.55mm |
| Product Length | 9.77mm |
