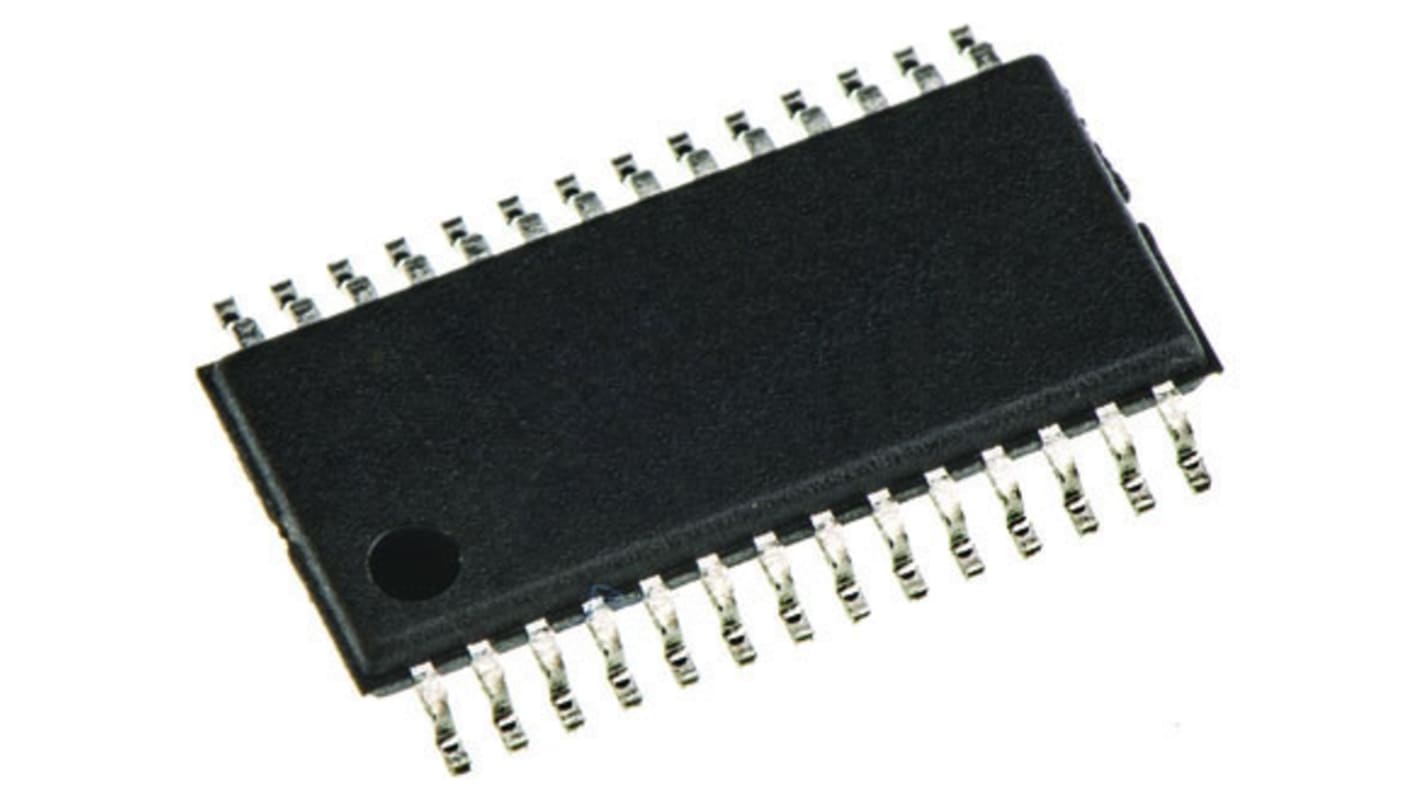

Texas Instruments DRV8814PWP, Brushed Motor Driver IC, 45 V 1.7A 28-Pin, HTSSOP
- RS Stock No.:
- 168-4143
- Mfr. Part No.:
- DRV8814PWP
- Brand:
- Texas Instruments
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each (In a Tube of 50)
£2.492
(exc. VAT)
£2.99
(inc. VAT)
| Units | Per unit | Per Tube* |
| 50 - 50 | £2.492 | £124.60 |
| 100 - 200 | £2.243 | £112.15 |
| 250 + | £2.018 | £100.90 |
| *price indicative | ||
- RS Stock No.:
- 168-4143
- Mfr. Part No.:
- DRV8814PWP
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Brushed DC (BDC) Drivers with FETs, Texas Instruments
Motor Controllers & Drivers, Texas Instruments
Specifications
Attribute | Value |
|---|---|
| Motor Type | Brushed DC |
| Output Configuration | Dual Full Bridge |
| Maximum IGBT Collector Current | 1.7A |
| Maximum Collector Emitter Voltage | 45 V |
| Mounting Type | Surface Mount |
| Package Type | HTSSOP |
| Maximum Operating Supply Voltage | 45 V |
| Pin Count | 28 |
| Minimum Operating Supply Voltage | 8 V |
| Typical Switching Frequency | 50kHz |
| Maximum Operating Temperature | +85 °C |
| Height | 1.05mm |
| Width | 4.5mm |
| Dimensions | 9.8 x 4.5 x 1.05mm |
| Minimum Operating Temperature | -40 °C |
| Length | 9.8mm |
