- RS Stock No.:
- 164-6973
- Mfr. Part No.:
- STSPIN32F0A
- Brand:
- STMicroelectronics
Available to back order for despatch 28/03/2025
Added
Price Each (In a Tray of 260)
£2.79
(exc. VAT)
£3.35
(inc. VAT)
Units | Per unit | Per Tray* |
260 + | £2.79 | £725.40 |
*price indicative |
- RS Stock No.:
- 164-6973
- Mfr. Part No.:
- STSPIN32F0A
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
Product Details

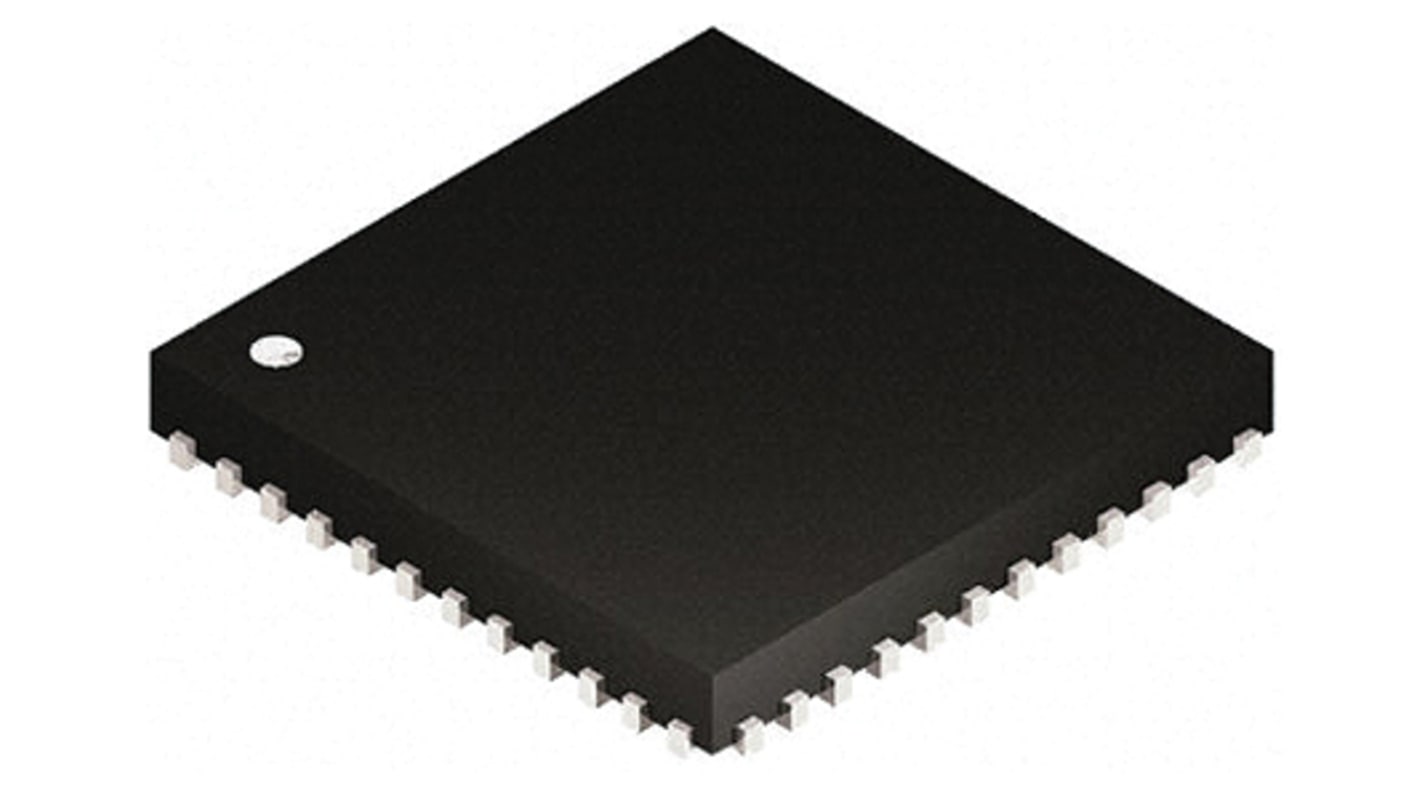

The STSPIN32F0A is a System-In-Package providing an integrated solution suitable for driving three-phase BLDC motors using different driving modes. It embeds a triple half-bridge gate driver able to drive power MOSFETs with a current capability of 600 mA (sink and source). The high- and low-side switches of same half-bridge cannot be simultaneously driven high thanks to an integrated interlocking function. An internal DC/DC buck converter provides the 3.3 V voltage suitable to supply both the MCU and external components. An internal LDO linear regulator provides the supply voltage for gate drivers.
Extended operating voltage from 6.7 to 45 V
Three-phase gate drivers
600 mA sink/source
Integrated bootstrap diodes
Cross-conduction prevention
Three-phase gate drivers
600 mA sink/source
Integrated bootstrap diodes
Cross-conduction prevention
Specifications
Attribute | Value |
---|---|
Motor Type | BLDC |
Configuration | 3 Phase |
Output Configuration | Triple Half Bridge |
Maximum Output Current | 70mA |
Maximum Supply Voltage | 45 V |
Mounting Type | Surface Mount |
Package Type | VFQFPN |
Maximum Operating Supply Voltage | 45 V |
Pin Count | 48 |
Minimum Operating Supply Voltage | -0.3 V |
Typical Switching Frequency | 200kHz |
Series | STSPIN |
Maximum Operating Temperature | +125 °C |
Product Width | 7.1mm |
Length | 7.1mm |
Minimum Operating Temperature | -40 °C |
Product Height | 0.95mm |
Width | 7.1mm |
Height | 0.95mm |
Product Length | 7.1mm |
Dimensions | 7.1 x 7.1 x 0.95mm |
